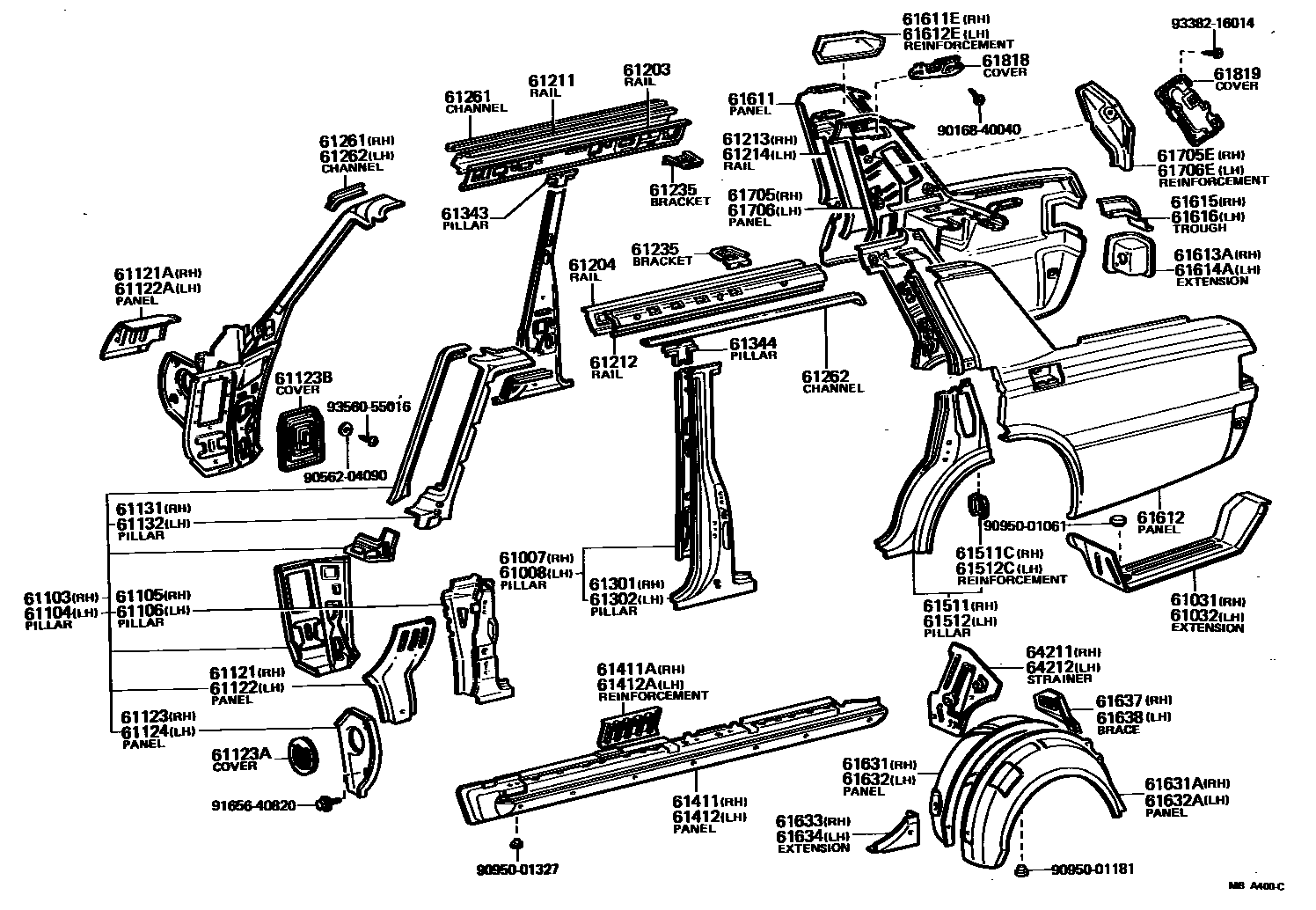

SIDE MEMBER

0001 1 0002 1 0003 1

61007PILLAR SUB-ASSY, CENTER, RH

main61007-30909iLS110,MS11#,RS110..EUR,GEN¥24,800197909-198307

sub61007-30911

main61007-30911iMS11#..ARL197909-198307

main61007-30911iMS112..SED..LHD..4F198012-198307

SAUDI ARABIA SPEC

61008PILLAR SUB-ASSY, CENTER, LH

main61008-30911iLS110,MS11#,RS110..EUR,GEN¥24,800197909-198307

sub61008-30913

main61008-30913iMS11#..ARL197909-198307

main61008-30913iMS112..SED..LHD..4F198012-198307

SAUDI ARABIA SPEC

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61627-30060iLS110,MS11#,RS110..SED¥2,670197909-198307

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61032-30020iLS110,MS11#,RS110..SED¥3,140197909-198307

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-30070iLS110,MS11#,RS110..RHD¥54,400197909-198307

main61021-30080iLS110,MS11#,RS110..LHD197909-198307

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-30070iLS110,MS11#,RS110..RHD197909-198307

main61022-30080iLS110,MS11#,RS110..LHD197909-198307

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-30900iLS110,MS11#,RS110197909-198307

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-30900iLS110,MS11#,RS110197909-198307

61121PANEL, COWL SIDE, OUTER RH

main61121-30090iLS110,MS11#,RS110197909-198307

61121APANEL, COWL SIDE, OUTER UPPER RH

main61125-30040iLS110,MS11#,RS110197909-198307

61122PANEL, COWL SIDE, OUTER LH

main61122-30100iLS110,MS11#,RS110197909-198307

61122APANEL, COWL SIDE, OUTER UPPER LH

main61126-30030iLS110,MS11#,RS110197909-198307

61123PANEL, COWL SIDE LOWER, RH

main61123-30080iLS110,MS11#,RS110197909-198307

61123ACOVER(FOR COWL SIDE LOWER PANEL)

main55077-30020iLS110,MS11#,RS110..BTP..GEN197909-198307

61123BCOVER, COWL SIDE PANEL HOLE, NO.1

main62161-30010iLS110,RS110..RHD..BTP197909-198307

main62162-30010iLS110,MS11#,RS110..LHD..BTP..GEN197909-198307

61124PANEL, COWL SIDE LOWER, LH

main61124-30080iLS110,MS11#,RS110197909-198307

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-30100iLS110,MS11#,RS110197909-198307

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-30120iLS110,MS11#,RS110197909-198307

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-30090iMS11#..ROY197909-198307

main61231-30140iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61232-30090iMS11#..ROY197909-198307

main61232-30140iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

61211RAIL, ROOF SIDE, OUTER RH

main61211-30090iLS110,MS11#,RS110197909-198307

61212RAIL, ROOF SIDE, OUTER LH

main61212-30090iLS110,MS11#,RS110197909-198307

61213RAIL, ROOF SIDE, OUTER REAR RH

main61215-30040iLS110,MS11#,RS110..SED197909-198307

61214RAIL, ROOF SIDE, OUTER REAR LH

main61216-30040iLS110,MS11#,RS110..SED197909-198307

61235BRACKET, LAMP PERSONAL

main61235-30020iMS11#,RS110..ROY,SAL197909-198307

61261CHANNEL, ROOF DRIP, RH

main61261-30080iLS110,MS11#,RS110¥3,790197909-198307

RR

main61263-30060iLS110,MS11#,RS110197909-198307

FR

61262CHANNEL, ROOF DRIP, LH

main61262-30080iLS110,MS11#,RS110197909-198307

RR

main61264-30050iLS110,MS11#,RS110197909-198307

FR

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-30050iLS110,MS11#,RS110..EUR,GEN¥38,700197909-198307

sub61301-30060

main61301-30060iMS11#..ARL197909-198307

main61301-30060iMS112..SED..LHD..4F198012-198307

SAUDI ARABIA SPEC

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-30070iLS110,MS11#,RS110..EUR,GEN¥38,700197909-198307

sub61302-30080¥38,700

main61302-30080iMS11#..ARL¥38,700197909-198307

main61302-30080iMS112..SED..LHD..4F¥38,700198012-198307

SAUDI ARABIA SPEC

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-30070iLS110,MS11#,RS110197909-198307

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-30060iLS110,MS11#,RS110197909-198307

61411PANEL, ROCKER, OUTER RH

main61411-30903iLS110,MS11#,RS110¥28,900197909-198307

61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH

main61418-30040iLS110,MS11#,RS110197909-198307

61412PANEL, ROCKER, OUTER LH

main61412-30903iLS110,MS11#,RS110¥28,900197909-198307

61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH

main61418-30040iLS110,MS11#,RS110197909-198307

61511PILLAR, QUARTER LOCK, RH

main61511-30902iLS110,MS11#,RS110197909-198307

61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH

main61503-20030iLS110,MS11#,RS110¥680197909-198106

main61503-30260iLS110,MS112,RS110198106-198307

61512PILLAR, QUARTER LOCK, LH

main61512-30902iLS110,MS11#,RS110¥13,100197909-198307

61512CREINFORCEMENT, QUARTER LOCK PILLAR, LH

main61503-20030iLS110,MS11#,RS110¥680197909-198106

main61504-30310iLS110,MS112,RS110198106-198307

61611PANEL, QUARTER, RH

main61611-30902iLS110,MS11#,RS110..SED¥60,900197909-198108

sub61611-30907¥55,200

main61611-30907iLS110,MS112,RS110..SED¥55,200198108-198307

main61611-91704iLS110,MS11#..WG197909-198108

sub61611-91790

main61611-91707iLS110,MS112..WG198108-198109

sub61611-91790

main61611-91790iLS110,MS112..WG198109-198307

61611EREINFORCEMENT, QUARTER PANEL, RH

main61619-30010iLS110,MS11#,RS110..SED197909-198307

main61619-91703iLS110,MS11#..WG197909-198307

61612PANEL, QUARTER, LH

main61612-30902iMS11#..ROY,SAL¥55,200197909-198108

W/FUEL LID OPENER

main61612-30903iLS110,MS11#,RS110..SED..(BTP,DLX)¥55,200197909-198108

sub61612-30907¥60,900

sub77201-30131¥3,310

sub90159-50004¥120

main61612-30910iLS110,RS110..SED..BTP198108-198307

main61612-30911iLS110,MS112,RS110..SED..(DLX,ROY,SAL)198108-198307

W/FUEL LID OPENER

main61612-91590iLS110,MS11#..WG197909-198108

main61612-91591iLS110,MS11#..WG197909-198108

W/RADIO ANTENNA HOLE

main61612-91592iLS110,MS112..WG198108-198307

main61612-91593iLS110,MS112..WG198108-198307

W/RADIO ANTENNA HOLE

61612EREINFORCEMENT, QUARTER PANEL, LH

main61629-30010iLS110,MS11#,RS110..SED197909-198307

main61629-91702iLS110,MS11#..WG197909-198307

61613AEXTENSION, QUARTER PANEL REAR, RH

main61697-30010iLS110,MS11#,RS110..SED¥1,740197909-198307

61614AEXTENSION, QUARTER PANEL, REAR LH

main61698-30010iLS110,MS11#,RS110..SED¥1,740197909-198307

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30050iLS110,MS11#,RS110..SED¥3,100197909-198307

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30040iLS110,MS11#,RS110..SED¥3,100197909-198307

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-30907iLS110,MS11#,RS110..SED¥20,000197909-198108

sub61603-30909¥18,100

main61603-30909iLS110,MS112,RS110..SED¥18,100198108-198307

main61603-91705iLS110,MS11#..WG197909-198108

main61603-91706iLS110,MS112..WG198108-198307

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30070iLS110,MS11#..WG197909-198307

main61631-30902iLS110,MS11#,RS110..SED197909-198307

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-30907iLS110,MS11#,RS110..SED¥18,100197909-198307

main61604-91706iLS110,MS11#..WG197909-198108

main61604-91707iLS110,MS112..WG198108-198307

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30070iLS110,MS11#..WG197909-198307

main61632-30903iLS110,MS11#,RS110..SED197909-198307

61633EXTENSION, WHEEL HOUSE, RH

main61797-30020iLS110,MS11#,RS110..SED197909-198307

61634EXTENSION, WHEEL HOUSE, LH

main61798-30020iLS110,MS11#,RS110..SED197909-198307

61637BRACE, QUARTER WHEEL HOUSE, RH

main61637-30070iLS110,MS11#,RS110197909-198307

61638BRACE, QUARTER WHEEL HOUSE, LH

main61638-30060iLS110,MS11#,RS110197909-198307

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-30080iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)¥18,300197909-198307

sub61731-30900¥16,800

sub64125-30900¥2,260

sub64312-30900

main61705-30100iMS11#..ROY..GEN¥18,300197909-198307

sub61731-30900¥16,800

sub64125-30900¥2,260

sub64312-30030

main61705-91590iLS110,MS11#..WG..LHD197909-198307

main61705-91592iLS110,MS111..WG..RHD197909-198307

61705EREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-30020iMS11#..ROY197909-198307

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-30080iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)¥18,300197909-198307

sub61732-30900¥16,800

sub64126-30900¥2,260

sub64313-30900

main61706-30090iMS11#..ROY..GEN¥18,300197909-198307

sub61732-30900¥16,800

sub64126-30900¥2,260

sub64313-30030

main61706-91590iLS110,MS11#..WG..LHD197909-198307

main61706-91592iLS110,MS111..WG..RHD197909-198307

61706EREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-30010iMS11#..ROY197909-198307

61818COVER, ROOF SIDE, INNER UPPER

main61815-30030iLS110,MS11#,RS110..SED197909-198307

RH

main61815-91701iLS110,MS11#..WG197909-198307

main61816-30030iLS110,MS11#,RS110..SED197909-198307

LH

61819COVER, ROOF SIDE, INNER LOWER

main61817-30020iLS110,MS11#,RS110..SED197909-198307

RH

main61817-91701iLS110,MS11#..WG197909-198307

main61818-30020iLS110,MS11#,RS110..SED197909-198307

LH

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30060iLS110,MS11#,RS110..SED¥2,130197909-198307

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30050iLS110,MS11#,RS110..SED197909-198307

9016840040

main90168-40040¥160

9056204090

main90562-04090¥180

9095001061

main90950-01061¥240

9095001181

main90950-01181¥220

9095001327

main90950-01327¥360

9165640820

main91656-40820¥140

9338216014

main93382-16014¥120

9356055016

main93560-55016¥70

71 parts on this diagram · 3 diagrams in section
