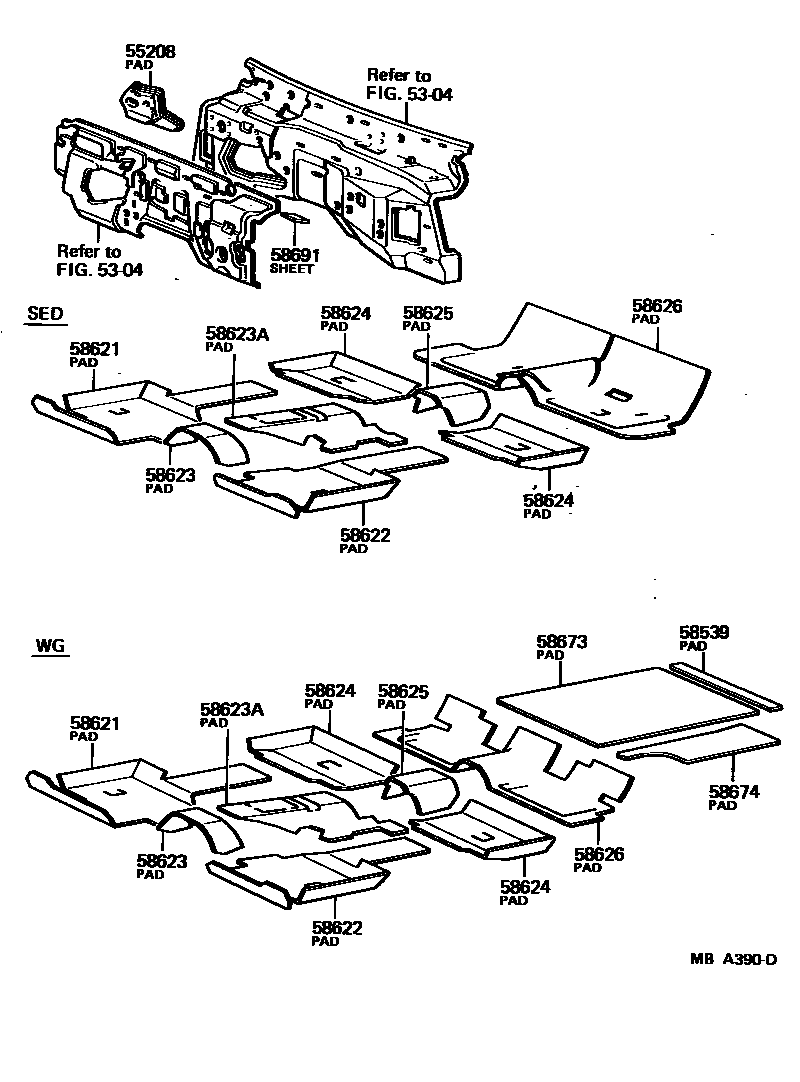

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304

55208PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1

main55213-30160iLS110,MS11#,RS110..RHD197909-198307

main55213-30180iLS110,MS11#,RS110..LHD197909-198307

58539PAD, FLOOR CARPET FINISHED

main58539-91701iLS110..WG198108-198307

58621PAD, FLOOR SILENCER, FRONT RH

main58621-30110iLS110,MS11#,RS110..BTP..GEN197909-198307

58622PAD, FLOOR SILENCER, FRONT LH

main58622-30090iLS110,MS11#,RS110..BTP..GEN197909-198307

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-30170iLS110,MS11#,RS110..BTP..GEN197909-198307

58623APAD, FRONT FLOOR SILENCER, CENTER

main58626-30040iLS110,MS11#,RS110..BTP..GEN197909-198307

58624PAD, FLOOR SILENCER, REAR SIDE

main58627-30050iLS110,MS11#,RS110..SED..BTP..GEN197909-198307

main58627-91703iLS110,MS111..WG..BTP..GEN197909-198307

58625PAD, FLOOR SILENCER, REAR CENTER

main58629-30020iLS110,MS11#,RS110..BTP..GEN197909-198307

58626PAD, FLOOR SILENCER, REAR

main58657-30050iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

W/CARPET

main58657-30060iMS11#..ROY197909-198307

main58657-30070iLS110,MS11#,RS110..SED..BTP..GEN197909-198307

W/MAT

sub58657-30050

main58657-91702iLS110,MS11#..WG197909-198307

58673PAD, REAR FLOOR SILENCER, NO.1

main58676-91701iLS110,MS11#..WG..BTP197909-198307

58674PAD, REAR FLOOR SILENCER, NO.2

main58674-91701iLS110,MS11#..WG..BTP197909-198307

58691SHEET, SILENCER

main61825-30010iLS110,MS11#,RS110..SED197909-198307

70X70

13 parts on this diagram · 1 diagram in section
