FLOOR MAT

5804

58511MAT, FLOOR, FRONT

main58510-30750iLS110,MS11#,RS110..LHD..4H..BTP197909-198307

main58510-30760iRS110..LHD..4F..BTP..GEN197909-198307

main58510-30770iLS110,RS110..RHD..4H197909-198307

main58510-30840iLS110,RS110..RHD..4F..BTP197909-198307

58551MAT, FLOOR, REAR

main58540-30490iLS110,MS11#,RS110..SED..4H..BTP197909-198305

main58540-30491iLS110,RS110..4H198305-198307

W/FR SEAT BELT

main58540-30510iLS110,RS110..4F..BTP..GEN197909-198305

main58540-30511iLS110,RS110..4F..BTP198305-198307

W/FR SEAT BELT

main58540-30521iLS110,RS110..4F..BTP198305-198307

W/O FR SEAT BELT

main58540-30541iLS110,RS110..4H198305-198307

W/O FR SEAT BELT

main58540-91745iMS111..WG..BTP197909-198307

main58540-91746iLS110..WG..GEN197909-198307

58563MAT, REAR FLOOR

main58581-91702iLS110,MS11#..WG..BTP197909-198108

main58581-91704iLS110..WG198108-198307

58563HCLIP(FOR REAR FLOOR MAT)

main90467-07005-05iLS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub90467-07005

main90467-07005-05iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub90467-07005

58571SET PLATE, REAR FLOOR MAT, FRONT

main58573-91703iLS110,MS11#..WG..BTP197909-198307

58572SET PLATE, REAR FLOOR MAT, REAR

main58574-91703-05iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub58574-91702

main58574-91703-15iLS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub58574-91702

58572CCLIP, REAR FLOOR MAT SET

main90467-08114-45iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub90467-08114

main90467-08114-45iLS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub90467-08114

9046805011

main90468-05011

9353024010

main93530-24010

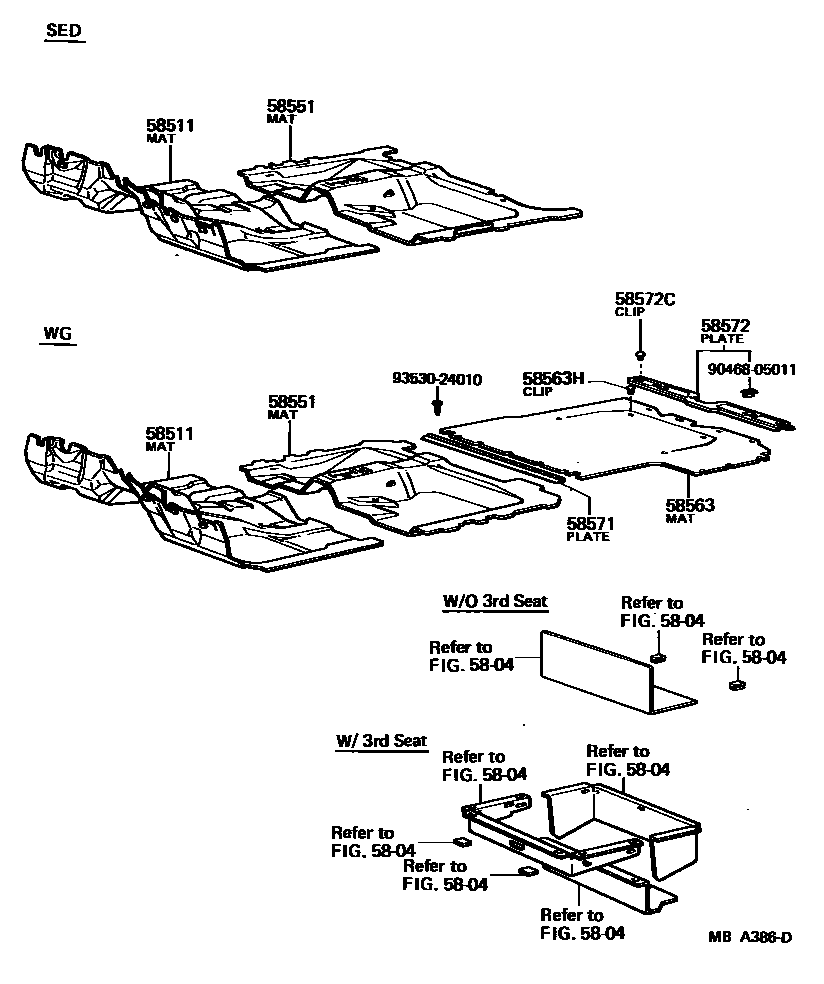

10 parts on this diagram · 1 diagram in section
