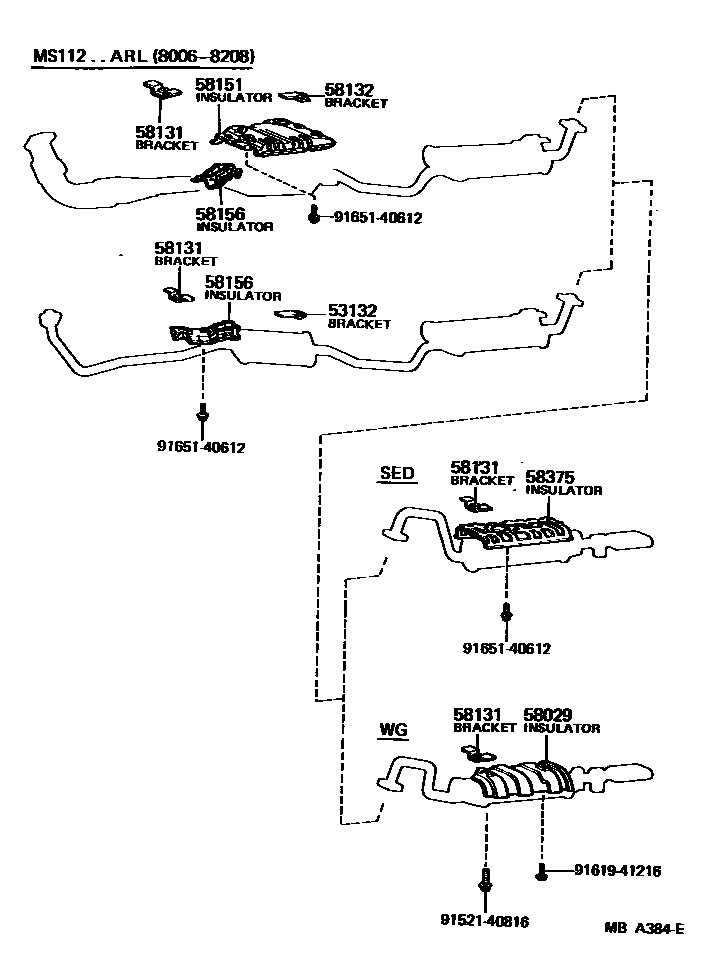

FLOOR INSULATOR

53132RIM, HEADLAMP, LH

58029INSULATOR SUB-ASSY, DIFFUSER HEAT

main58045-91702iLS110..WG197909-198307

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020iLS110..SED197909-198307

sub58131-14030

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-30010iLS110..SED197909-198307

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-30030iMS11#..ARL198006-198208

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30030iMS11#,RS110..SED..(ARL,GEN)197909-198307

main58156-30040iMS11#..ARL198006-198208

58375INSULATOR, REAR FLOOR HEAT, NO.1

main58321-30050iMS11#..ARL197909-198307

9152140816

main91521-40816

9161941216

main91619-41216

9165140612

main91651-40612

10 parts on this diagram · 1 diagram in section
