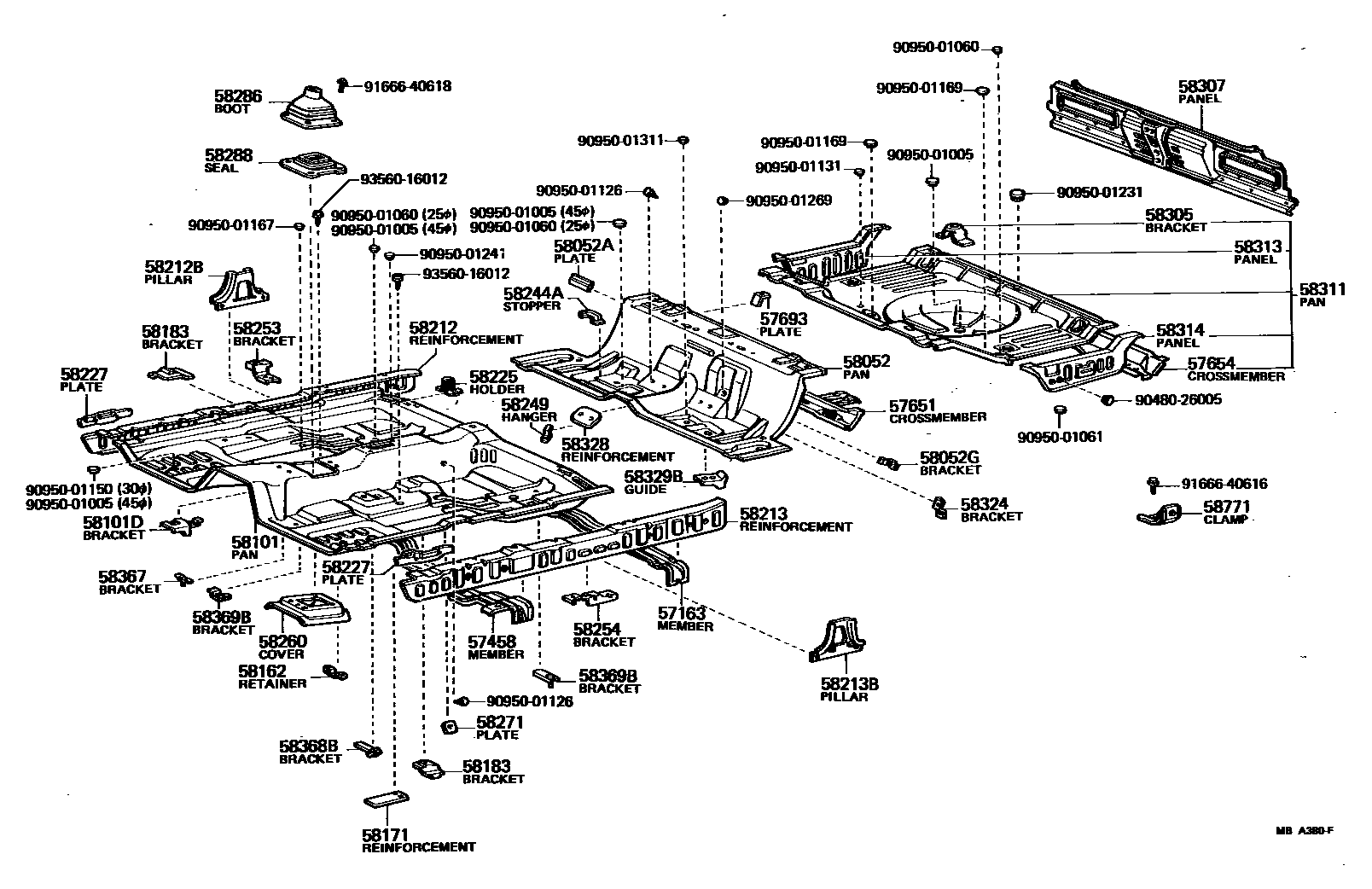

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57163MEMBER, FRONT FLOOR CROSS, NO.2

main57206-30030iLS110,MS11#,RS110..SED197909-198307

main57206-91702iLS110,MS11#..WG197909-198307

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-30030iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198104

main57408-30040iLS110,MS11#,RS110..3HC,4H,4HC197909-198104

57651CROSSMEMBER, REAR FLOOR, FRONT

main57407-30030iLS110,MS11#,RS110197909-198307

sub57407-30050

57654MEMBER, REAR FLOOR CROSS, NO.4

main57654-30040iLS110,MS11#,RS110..SED197909-198307

57693PLATE, FUEL TANK BRACKET, RH

main57693-30020×2iLS110,MS11#,RS110..SED197909-198307

58052PAN SUB-ASSY, CENTER FLOOR

main58211-30150iLS110,MS11#,RS110197909-198307

58052APLATE, REAR SEAT CUSHION SUPPORT

main64225-30030×2iLS110,MS11#,RS110..SED197909-198307

58052GBRACKET, FUEL TUBE, NO.3

main58369-30010×2iLS110,MS11#,RS110197909-198307

sub58369-30040

58101PAN SUB-ASSY, FRONT FLOOR

main58111-30200iLS110,MS11#,RS110..3HC,4H,4HC197909-198108

sub90159-40206

sub90189-04007

main58111-30201iLS110,MS112,RS110..4H,4HC198108-198307

main58111-30210iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

sub90159-40206

sub90189-04007

main58111-30211iLS110,MS112,RS110..4F,4FC,5F198108-198307

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58265-30010iLS110,MS11#,RS110197909-198307

58162RETAINER, CONSOLE BOX, NO.1

main58163-30020iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-30020iLS110,MS11#,RS110..RHD..(3HC,4H,4HC)197909-198307

main58107-30030iLS110,MS11#,RS110..LHD..(3HC,4H,4HC)197909-198307

main58171-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

sub58171-30050

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

RH

main58184-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

LH

58212REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main57411-30030iLS110,MS11#,RS110197909-198307

58212BPILLAR, CENTER BODY, INNER LOWER RH

main61345-30040iLS110,MS11#,RS110197909-198307

58213REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main57412-30030iLS110,MS11#,RS110197909-198307

58213BPILLAR, CENTER BODY, INNER LOWER LH

main61346-30040iLS110,MS11#,RS110197909-198307

58225HOLDER, REAR SEAT CUSHION

main58225-30040×2iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

58227PLATE, AIR GUIDE, OUTSIDE

main57421-30010iLS110,MS11#,RS110197909-198307

RH

main57422-30010iLS110,MS11#,RS110197909-198307

LH

58244ASTOPPER, REAR SEAT CUSHION BRACKET

main58244-30030×2iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)197909-198307

58249HANGER, PARKING BRAKE RETURN SPRING

main58249-30020iLS110,MS11#,RS110197909-198307

58253BRACKET, FRONT SEAT, OUTER REAR RH

main57468-30020iLS110,MS11#,RS110197909-198307

58254BRACKET, FRONT SEAT, OUTER REAR LH

main57469-30030iLS110,MS11#,RS110197909-198307

58260COVER ASSY, TRANSMISSION, FRONT

main58281-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198008

main58281-30011iLS110,MS112,RS110..4F,4FC,5F198008-198307

58271PLATE, BELT ANCHOR, FRONT

main58271-30030×2iLS110,MS11#,RS110197909-198307

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-30010iLS110,MS11#,RS110..4F,5F197909-198008

main58280-30011iLS110,MS112,RS110..4F,5F198008-198102

main58280-30020iMS112..(4F,5F)..CBR198102-198108

58288SEAL, SHIFT LEVER BOOT

main58288-30010iLS110,MS11#,RS110..4F,5F197909-198008

main58288-30011iLS110,MS112,RS110..4F,5F198008-198307

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iLS110,MS11#,RS110..SED197909-198307

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30340iLS110,MS11#,RS110..SED197909-198307

main58307-91593iLS110,MS11#..WG197909-198307

sub58307-91592

58311PAN, REAR FLOOR

main58301-30230iLS110,MS11#,RS110..SED197909-198307

main58311-91704iLS110,MS11#..WG197909-198307

sub58311-31020

58313PANEL, REAR FLOOR SIDE, RH

main58305-30050iLS110,MS11#,RS110..SED197909-198307

main58313-91702iLS110,MS11#..WG197909-198307

58314PANEL, REAR FLOOR SIDE, LH

main57662-30020iLS110,MS11#,RS110..SED197909-198307

main58306-91705iLS110,MS11#..WG197909-198205

main58306-91707iLS110,MS112..WG198205-198307

58324BRACKET, FLEXIBLE HOSE

main47351-30140iLS110,MS11#,RS110197909-198307

58328REINFORCEMENT, SAFETY BELT ANCHORAGE

main58028-30030×2iLS110,MS11#,RS110197909-198307

58329BGUIDE, WIRE, NO.3

main58038-30030iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

main58269-30010iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

58367BRACKET, FUEL TUBE CLAMP

main58367-30060iLS110,MS11#,RS110197909-198307

58368BBRACKET, FUEL TUBE, NO.2

main58368-30010iLS110,MS11#,RS110197909-198307

58369BBRACKET, FUEL TUBE, NO.3

main58369-30010iLS110,MS11#,RS110197909-198307

FR

sub58369-30040

main58369-30020iLS110,MS11#,RS110197909-198307

RR

58771CLAMP, JACK, NO.1

main58795-30010iLS110,MS11#,RS110..SED197909-198307

9048026005

main90480-26005

9095001005

main90950-01005

9095001060

main90950-01060

9095001061

main90950-01061

9095001126

main90950-01126

9095001131

main90950-01131

9095001150

main90950-01150

9095001167

main90950-01167

9095001169

main90950-01169

9095001231

main90950-01231

9095001241

main90950-01241

9095001269

main90950-01269

9095001311

main90950-01311

9166640616

main91666-40616

9166640618

main91666-40618

9356016012

main93560-16012

55 parts on this diagram · 2 diagrams in section
