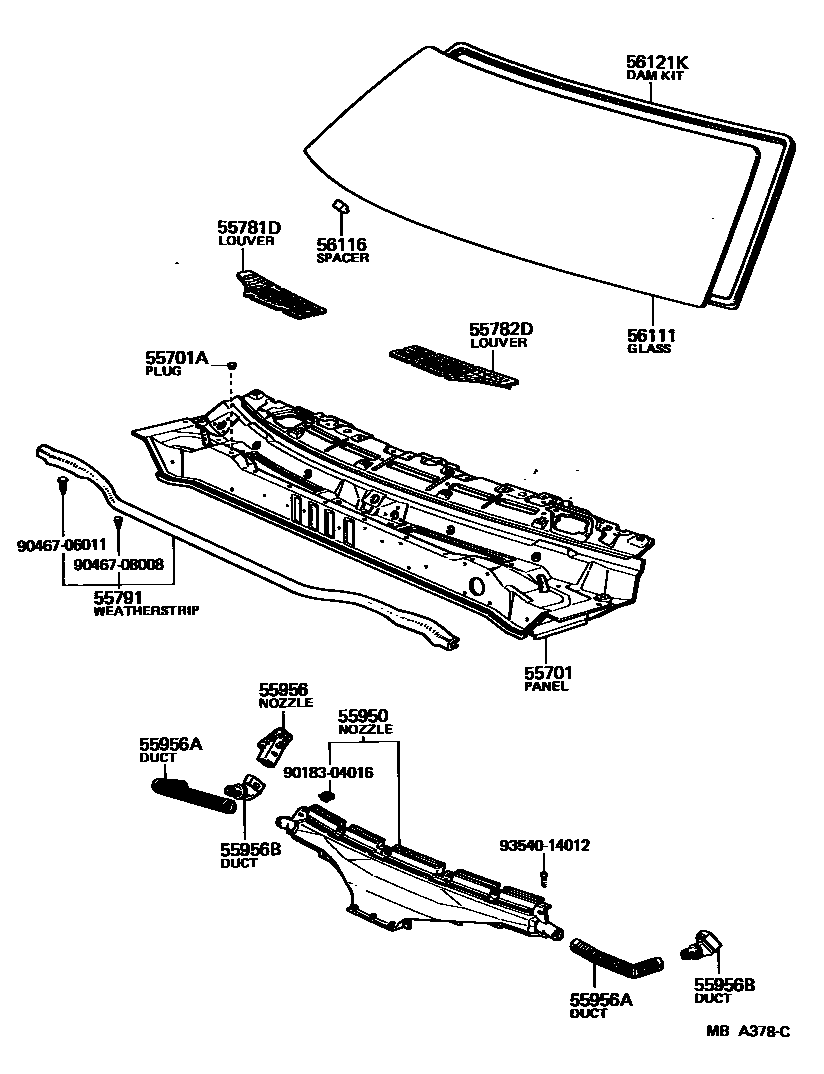

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-30220iLS110..RHD197909-198108

sub55700-30221

main55700-30240iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198307

main55700-30250iMS112,RS110..RHD197909-198108

sub55700-30251

main55700-30251iLS110,MS112,RS110..RHD198108-198307

main55700-30260iMS11#..RHD..ROY197909-198104

sub55700-30250

sub55877-30030

main55700-30270iMS11#..LHD..ROY197909-198307

55701APLUG, HOLE(FOR COWL PANEL)

main90950-01058iLS110,MS11#,RS110197909-198307

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30060iLS110,MS11#,RS110197909-198307

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30020iLS110,MS11#,RS110197909-198307

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-30060iLS110,MS11#,RS110197909-198307

55950NOZZLE ASSY, DEFROSTER

main55950-30030iLS110,MS11#,RS110..RHD197909-198307

main55950-30040iLS110,MS11#,RS110..LHD197909-198307

55956NOZZLE, SIDE DEFROSTER

main55961-30010-02iLS110,MS11#,RS110..RHD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55961-30010-03iLS110,MS112,RS110..RHD198108-198307

GRAY,GRAY,TRIM1#

main55961-30010-04iLS110,MS11#,RS110..RHD197909-198307

BLUE,BLUE,TRIM8#

main55961-30010-05iLS110,MS11#,RS110..RHD197909-198108

GREIGE,BEIGE,TRIM4#

main55961-30010-15iLS110,MS112,RS110..RHD198108-198307

BEIGE,BEIGE,TRIM4#

main55961-30020-02iLS110,MS11#,RS110..LHD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main55961-30020-03iLS110,MS112,RS110..LHD198108-198307

GRAY,GRAY,TRIM1#

main55961-30020-04iLS110,MS11#,RS110..LHD197909-198307

BLUE,BLUE,TRIM8#

main55961-30020-05iLS110,MS11#,RS110..LHD197909-198108

GREIGE,BEIGE,TRIM4#

main55961-30020-15iLS110,MS112,RS110..LHD198108-198307

BEIGE,BEIGE,TRIM4#

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14010iRS110..LHD;LS110,MS112197909-198307

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30010iLS110,MS11#,RS110..LHD197909-198307

LH

main55972-30010iLS110,MS11#,RS110..RHD197909-198307

RH

main55973-30010iLS110,MS112..RHD197909-198307

LH

main55973-30020iLS110,MS11#,RS110..LHD197909-198307

RH

56111GLASS, WINDSHIELD

main56111-30400iLS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX197909-198307

*TEM,T=5.0

sub56111-30461

main56111-30420iRS110..BTP,DLX;LS110,MS11#..(BTP,DLX,SAL)..(EUR,GEN)197909-198307

*TL,T=5.3

sub56111-30430

main56111-30430iMS112..ARL197909-198307

*TL,T=5.3,SUN SHADE

main56111-30460iMS111..ARL197909-198008

*LAM,T=5.3

sub56111-30461

main56111-30461iMS112..ARL198008-198307

*LAM,T=5.3

sub56111-30430

56116SPACER, WINDSHIELD GLASS

main56116-30030iLS110,MS11#,RS110197909-198307

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iLS110,MS11#,RS110197909-198307

sub04562-30040

9018304016

main90183-04016

9046706011

main90467-06011

9046708008

main90467-08008

9354014012

main93540-14012

16 parts on this diagram · 1 diagram in section
