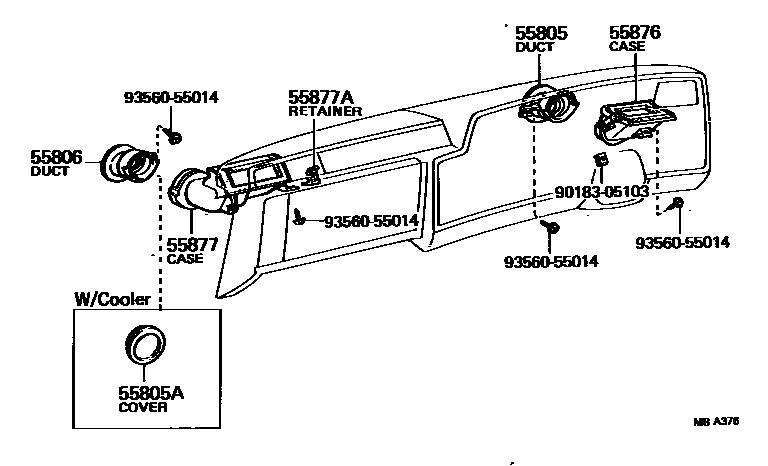

COWL VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55841-30040iRS110..(BTP,DLX)..GEN;LS110,MS11#..(BTP,DLX,SAL)..(ARL,GEN)197909-198307

55805ACOVER, SIDE VENTILATOR

main55877-30030iLS110,MS11#,RS110197909-198307

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55842-30030iRS110..(BTP,DLX)..GEN;LS110,MS11#..(BTP,DLX,SAL)..(ARL,GEN)197909-198307

55876CASE, SIDE VENTILATOR, RH

main55830-30040iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..(ARL,GEN)197909-198307

main55830-30050iRS110..LHD..(BTP,DLX)..GEN;LS110,MS11#..LHD..(BTP,DLX,SAL)..GEN197909-198307

55877CASE, SIDE VENTILATOR, LH

main55840-30070iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..(ARL,GEN)197909-198307

main55840-30080iRS110..LHD..(BTP,DLX)..GEN;LS110,MS11#..LHD..(BTP,DLX,SAL)..GEN197909-198307

55877ARETAINER, AIR DUCT

main55854-30030iLS110,MS11#,RS110..(BTP,DLX,SAL)..(ARL,GEN)197909-198307

9018305103

main90183-05103

9356055014

main93560-55014

8 parts on this diagram · 1 diagram in section
