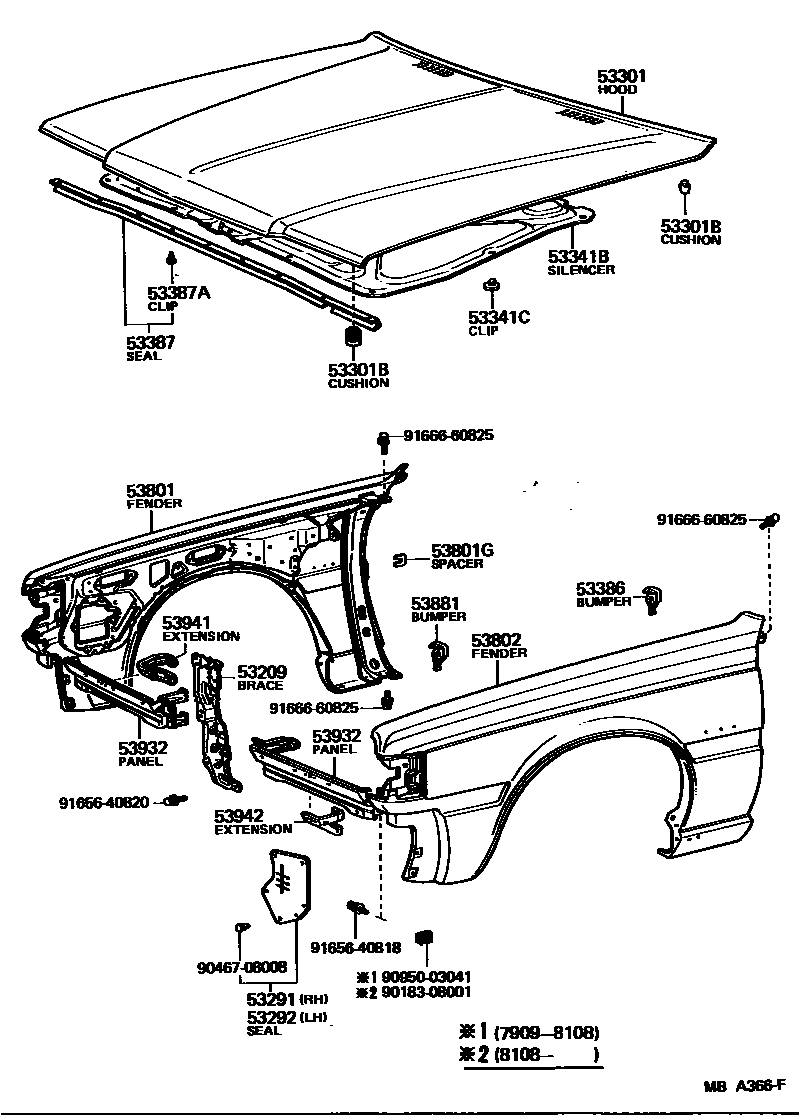

HOOD & FRONT FENDER

53209BRACE SUB-ASSY, HOOD LOCK

main53209-30040iLS110,MS11#,RS110197909-198108

main53209-30050iLS110,MS112,RS110198108-198307

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-30020iLS110,MS11#,RS110197909-198307

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-30020iLS110,MS11#,RS110197909-198307

53301HOOD SUB-ASSY

main53301-30050iLS110,MS11#,RS110197909-198108

main53301-30070iMS112..RHD..4HC..SAL198108-198307

TRINIDAD SPEC,TOBAGO SPEC

main53301-30080iMS112,RS110..(ROY,SAL)..GEN198108-198307

main53301-30090iLS110,MS112..EUR198108-198307

53301BCUSHION, HOOD BUMPER

main90541-10007iLS110,MS11#,RS110197909-198307

RR

sub90541-10038

main90541-15002iLS110,MS11#,RS110197909-198108

FR

sub90541-15111

53341BINSULATOR, HOOD

main53341-30060iMS111..SED..BTP;LS110,MS112,RS110;MS111..DLX,ROY,SAL197909-198307

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008iMS111..SED..BTP;LS110,MS112,RS110;MS111..DLX,ROY,SAL197909-198307

53386BUMPER, HOOD, REAR

main53382-30060iLS110,MS11#,RS110197909-198307

sub53384-60030

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-30040iLS110,MS11#,RS110197909-198307

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08011iLS110,MS11#,RS110197909-198307

53801FENDER SUB-ASSY, FRONT RH

main53801-30660iRS110..RHD..4F..BTP;MS111..SED..RHD..4F..DLX197909-198108

W/MIRROR HOLE

main53801-30690iLS110,MS11#,RS110197909-198108

W/O MIRROR HOLE

main53801-30790iMS112..ARL198108-198307

sub53801-30890

main53801-30810iMS112..(ROY,SAL)..GEN198108-198307

W/FENDER MARKER

main53801-30890iLS110,MS112..EUR198108-198307

*GIS

main53801-3A090iRS110..SAL;MS112..RHD..5F198108-198307

W/FENDER MARKER,*GIS

sub53801-30810

53801GSPACER, FRONT FENDER TO COWL PANEL

main53878-30010iLS110,MS11#,RS110197909-198307

53802FENDER SUB-ASSY, FRONT LH

main53802-30480iMS112..SED..RHD..4F;RS110..RHD..4F..BTP197909-198108

W/MIRROR HOLE

main53802-30510iLS110,MS11#,RS110197909-198108

W/O MIRROR HOLE

main53802-30660iMS112..ARL198108-198307

sub53802-30760

main53802-30680iMS112..(ROY,SAL)..GEN198108-198307

W/FENDER MARKER

main53802-30760iLS110,MS112..EUR198108-198307

*GIS

main53802-30780iRS110..SAL;MS112..RHD..5F198108-198307

W/FENDER MARKER,*GIS

sub53802-30680

53881BUMPER, FENDER TO HOOD

main53382-30060iLS110,MS11#,RS110197909-198307

sub53384-60030

53932PANEL SUB-ASSY, FRONT END

main53903-30030iLS110,MS11#,RS110197909-198108

RH

main53903-30050iLS110,MS112,RS110..LHD..EUR197909-198105

RH,W/*HC

main53903-30080iLS110,MS112,RS110198108-198307

RH

sub53903-30130

main53903-30130iLS110,MS112..EUR198108-198307

RH,*GIS

main53904-30030iLS110,MS11#,RS110197909-198108

LH

main53904-30050iLS110,MS112,RS110..LHD..EUR197909-198105

LH,W/*HC

main53904-30080iLS110,MS112,RS110198108-198307

LH

sub53904-30130

main53904-30130iLS110,MS112..EUR198108-198307

LH,*GIS

53941EXTENSION, FRONT END PANEL, NO.1 RH

main53941-30020iMS112..(ROY,SAL)..GEN198108-198307

53942EXTENSION, FRONT END PANEL, NO.1 LH

main53942-30020iMS112..(ROY,SAL)..GEN198108-198307

9018308001

main90183-08001

9046708008

main90467-08008

9095003041

main90950-03041

9165640818

main91656-40818

9165640820

main91656-40820

9166660825

main91666-60825

23 parts on this diagram · 1 diagram in section
