BODY MOUNTING

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-30905iLS110,MS11#..WG197909-198307

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-10018iLS110,MS11#,RS110..SED197909-198307

main90119-10023iLS110,MS11#..WG197909-198307

sub90119-10350

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52023-30030iLS110,MS11#..WG197909-198307

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52201-30905iLS110,MS11#,RS110..SED197909-198307

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10001iLS110,MS11#,RS110..SED197909-198307

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52023-30030iLS110,MS11#,RS110..SED197909-198307

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52203-30040iLS110,MS11#,RS110197909-198307

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-10147iLS110,MS11#,RS110..SED197909-198307

main90119-10181iLS110,MS11#..WG197909-198307

52234CUSHION, BODY MOUNT, NO.3 LOWER

main52204-30020iLS110,MS11#,RS110197909-198307

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52203-30040iLS110,MS11#,RS110197909-198307

52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)

main90119-10146iLS110,MS11#,RS110197909-198307

52244CUSHION, BODY MOUNT, NO.4 LOWER

main52204-30020iLS110,MS11#,RS110197909-198307

9017010082

main90170-10082

9451201000

main94512-01000

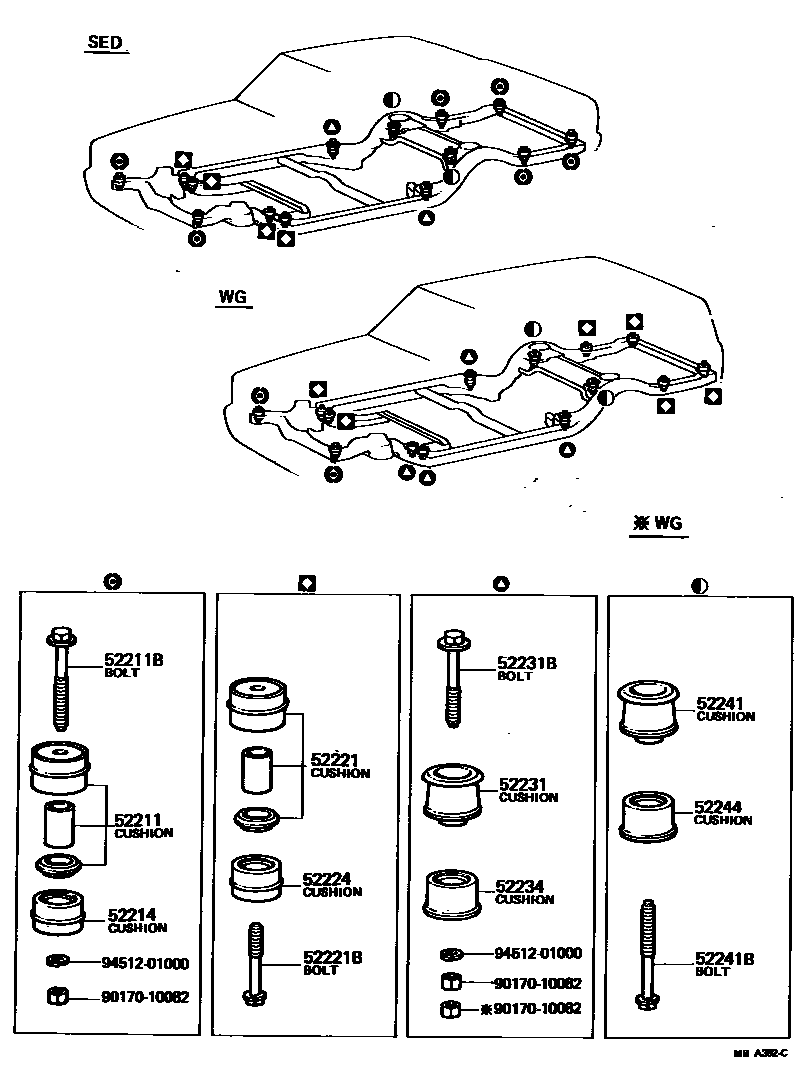

14 parts on this diagram · 1 diagram in section
