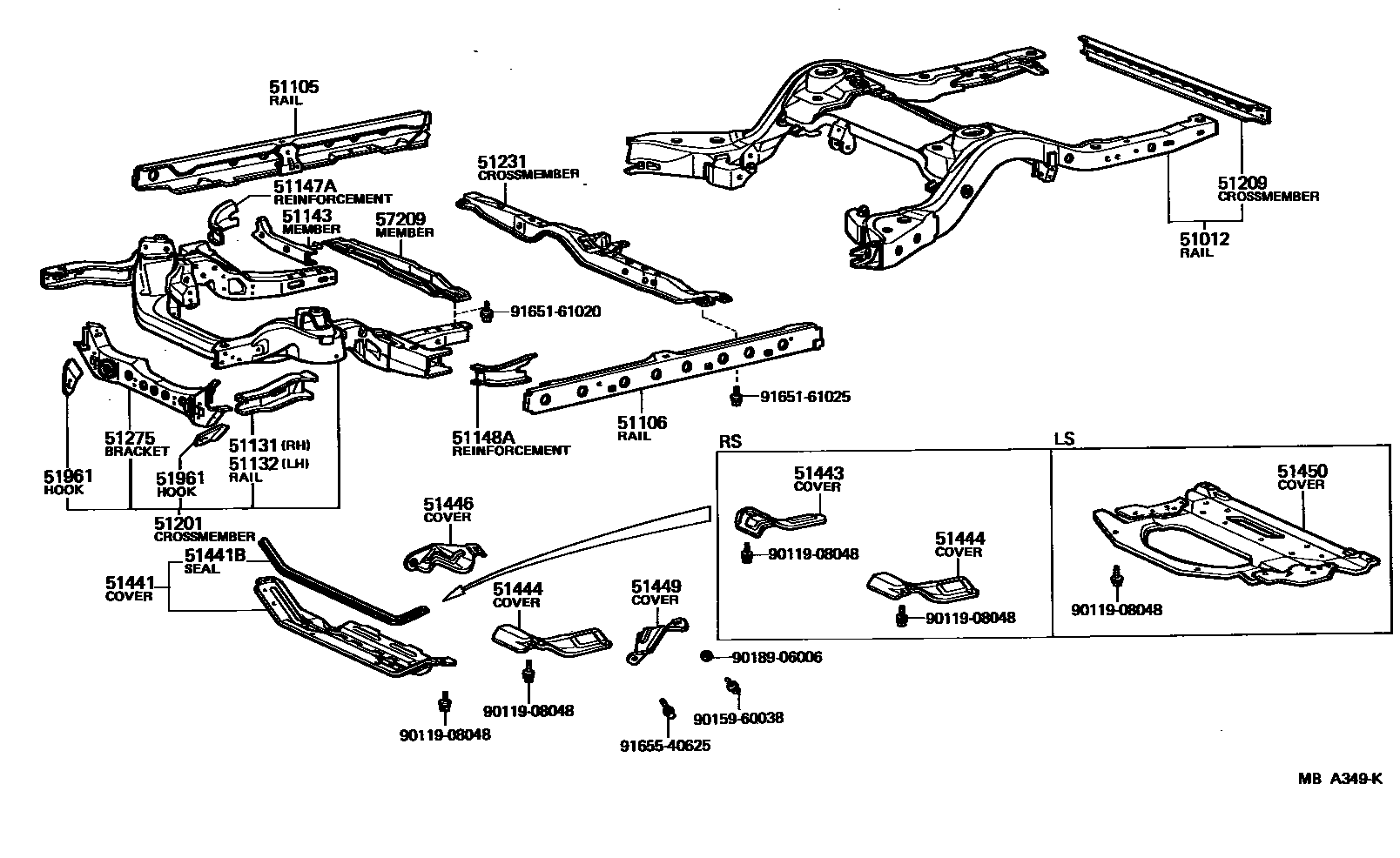

FRAME

51012RAIL SUB-ASSY, REAR FRAME

main51012-30240iLS110,MS11#,RS110..SED197909-198307

main51012-31110iLS110,MS11#..WG197909-197911

sub51012-31111

sub91521-40816

main51012-31111iLS110,MS11#..WG197911-198307

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-30050iLS110,MS11#,RS110197909-198307

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-30050iLS110,MS11#,RS110197909-198307

51131RAIL, FRONT FRAME, RH

main51131-30020iLS110,MS11#,RS110197909-198307

51132RAIL, FRONT FRAME, LH

main51132-30021iLS110,MS11#,RS110197909-198307

51143REINFORCEMENT, SIDE RAIL, REAR RH

main51103-30060iRS110197909-198307

main51243-30020iLS110,MS11#197909-198307

51147AREINFORCEMENT, CENTER FRAME RAIL, FRONT RH

main51147-30020iLS110,MS11#,RS110197909-198307

51148AREINFORCEMENT, CENTER FRAME RAIL FRONT, LH

main51148-30020iLS110,MS11#,RS110197909-198307

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51011-30190iMS11#197909-198307

main51011-30200iRS110197909-198307

main51011-30210iLS110197909-198307

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51291-30070iLS110,MS11#,RS110197909-198307

51231CROSSMEMBER, CENTER SUPPORT BEARING

main51203-30070iRS110..EUR197909-198307

51275BRACKET SUB-ASSY, STRUT BAR

main51207-30030iLS110,MS11#,RS110197909-198307

51441COVER, ENGINE UNDER, NO.1

main51440-30040iLS110,MS11#,RS110197909-198307

51441BSEAL, ENGINE UNDER COVER TO RADIATOR SUPPORT

main51458-30040iLS110,MS11#,RS110197909-198307

51443COVER, ENGINE UNDER, REAR RH

main51443-30090iRS110197909-198307

51444COVER, ENGINE UNDER, REAR LH

main51444-30100iMS11#..CBR197909-198307

main51444-30110iRS110197909-198307

main51444-30130iMS112..EFI197909-198307

51446COVER, FRONT FRAME UNDER, RH

main51406-30010iLS110198102-198307

main51448-30020iMS112,RS110197909-198307

sub51406-30010

51449COVER, FRONT FRAME UNDER, LH

main51407-30010iLS110198102-198307

main51449-30020iLS110,MS11#,RS110197909-198307

sub51407-30010

51450COVER ASSY, ENGINE UNDER, REAR

main51450-30010iLS110197909-198307

51961HOOK, NO.1

main51963-30030iLS110,MS11#,RS110197909-198307

RH

main51964-30030iLS110,MS11#,RS110197909-198307

LH

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-30040iLS110,MS112..ATM197909-198307

main51221-30150iMS112..5F..EFI197909-198108

main51221-30160iMS112..MTM..CBR198008-198307

main51221-30180iLS110,MS111,RS110..4H197909-198108

9011908048

main90119-08048

9015960038

main90159-60038

9018906006

main90189-06006

9165161020

main91651-61020

9165161025

main91651-61025

9165540625

main91655-40625

27 parts on this diagram · 1 diagram in section
