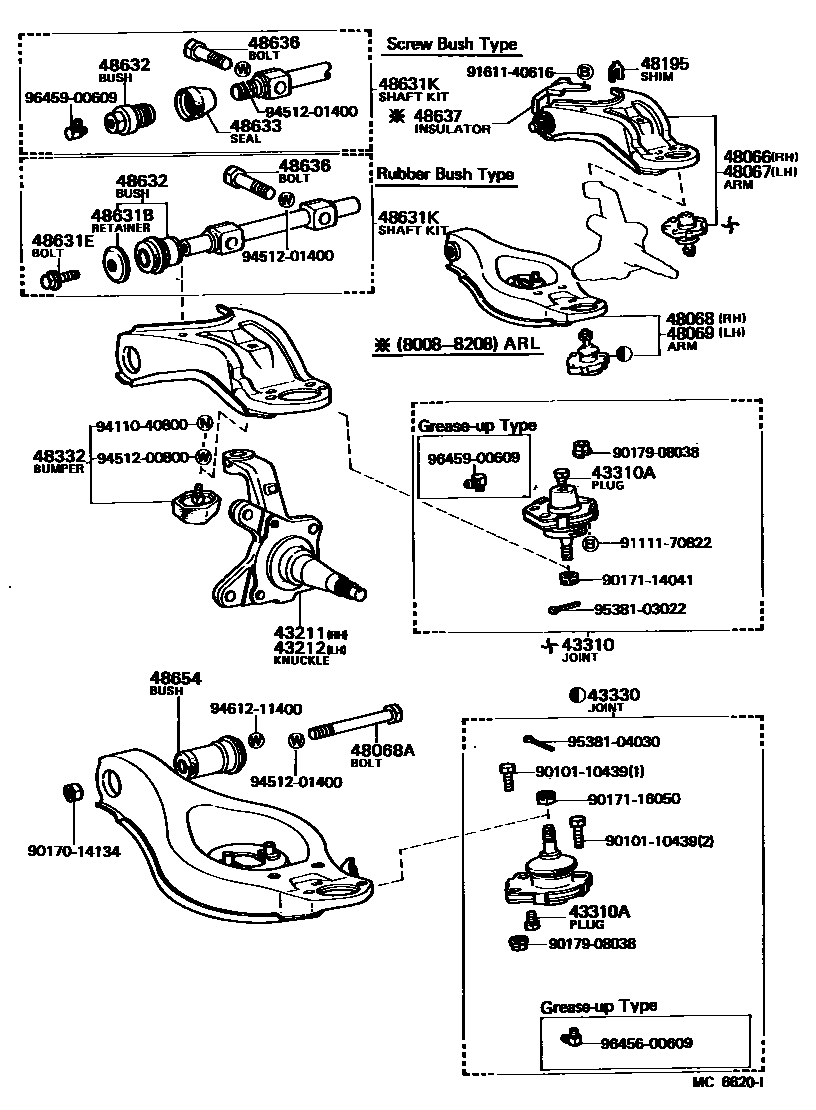

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-30081iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

main43211-30100iLS110,MS11#,RS110197909-198307

FR DISC BRAKE

43212KNUCKLE, STEERING, LH

main43211-30081iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

main43212-30050iLS110,MS11#,RS110197909-198307

FR DISC BRAKE

43310JOINT ASSY, UPPER BALL

main43350-39016iMS111,RS110..SED..LHD..BTP..GEN197909-198003

RH,TAXI SPEC

sub43350-39017

main43350-39016iMS11#,RS110..SED..LHD..BTP..GEN198003-198105

TAXI SPEC

sub43350-39017

main43350-39017iLS110..SED..BTP..GEN198105-198307

TAXI SPEC

main43360-39016iLS110,MS11#,RS110197909-198105

sub43360-39055

main43360-39045iLS110..4H197909-198003

LH,TAXI SPEC

sub43350-39016

main43360-39055iLS110,MS112,RS110198105-198307

43310APLUG (FOR BALL JOINT)

main90345-06014iLS110,MS11#,RS110197909-198307

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39095iLS110..SED..BTP..GEN197909-198307

RH,TAXI SPEC

sub43330-39145

main43330-39105iLS110,MS11#,RS110197909-198307

RH

sub43330-39155

main43340-39085iLS110..SED..BTP..GEN197909-198307

LH,TAXI SPEC

sub43340-39125

main43340-39095iLS110,MS11#,RS110197909-198307

LH

sub43340-39135

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-39016iLS110..BTP..EUR197909-198307

RUBBER BUSH TYPE

sub48610-30060

main48066-39026iMS112..SED..LHD..4H197909-198307

SCREW BUSH TYPE,TAXI SPEC

sub48610-30050

main48066-39035iLS110,MS112197909-198307

RUBBER BUSH,W/POWER STEERING

sub48610-30040

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-39016iLS110..BTP..EUR197909-198307

RUBBER BUSH TYPE

sub48630-30060

main48067-39026iMS11#,RS110..SED..LHD..BTP..GEN197909-198307

SCREW BUSH TYPE,TAXI SPEC

sub48630-30050

main48067-39035iRS110..SAL197909-198307

RUBBER BUSH,W/POWER STEERING

sub48630-30040

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-39015iLS110,MS11#,RS110197909-198307

main48068-39035iMS112..SED..LHD..4H197909-198307

TAXI SPEC

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-14204iLS110,MS11#,RS110197909-198307

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-39015iLS110,MS11#,RS110197909-198307

main48069-39035iLS110..SED..BTP..GEN197909-198307

TAXI SPEC

48195SHIM, CAMBER ADJUST

main90565-15016iLS110,MS11#,RS110197909-198307

T=1.6,T=1.6

main90565-15017iLS110,MS11#,RS110197909-198307

T=1.0,T=1.0

main90565-15018iLS110,MS11#,RS110197909-198307

T=2.0,T=2.0

48332BUMPER, FRONT SPRING, NO.2

main48305-39015iLS110,MS11#,RS110197909-198307

sub48305-30030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020iLS110,MS11#,RS110197909-198307

RUBBER BUSH TYPE

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90105-12017iLS110,MS11#,RS110197909-198307

RUBBER BUSH TYPE

48631KSHAFT KIT, UPPER SUSPENSION ARM

main04485-30031iLS110..SED..BTP..GEN197909-198307

SCREW BUSH TYPE,TAXI SPEC

main04485-30041iLS110,MS11#,RS110197909-198307

RUBBER BUSH TYPE

48632BUSH, UPPER ARM

main48632-30012iLS110..SED..BTP..GEN197909-198307

SCREW BUSH TYPE,TAXI SPEC

main48632-39025iLS110,MS11#,RS110197909-198307

RUBBER BUSH TYPE

48633SEAL, UPPER ARM PIVOT DUST

main48633-30011iLS110..SED..BTP..GEN197909-198307

SCREW BUSH TYPE,TAXI SPEC

48636BOLT, UPPER ARM SET

main90101-14013iLS110,MS11#,RS110197909-198307

48637INSULATOR, UPPER ARM BUSH

main48637-30010iMS112..ARL198008-198208

48654BUSH, LOWER ARM

main48654-30010iLS110,MS11#,RS110197909-198307

sub48654-30020

9010110439

main90101-10439

9017014134

main90170-14134

9017114041

main90171-14041

9017116050

main90171-16050

9017908038

main90179-08038

9111170822

main91111-70822

9161140616

main91611-40616

9411040800

main94110-40800

9451200800

main94512-00800

9451201400

main94512-01400

9461211400

main94612-11400

9538103022

main95381-03022

9538104030

main95381-04030

9645600609

main96456-00609

9645900609

main96459-00609

35 parts on this diagram · 1 diagram in section
