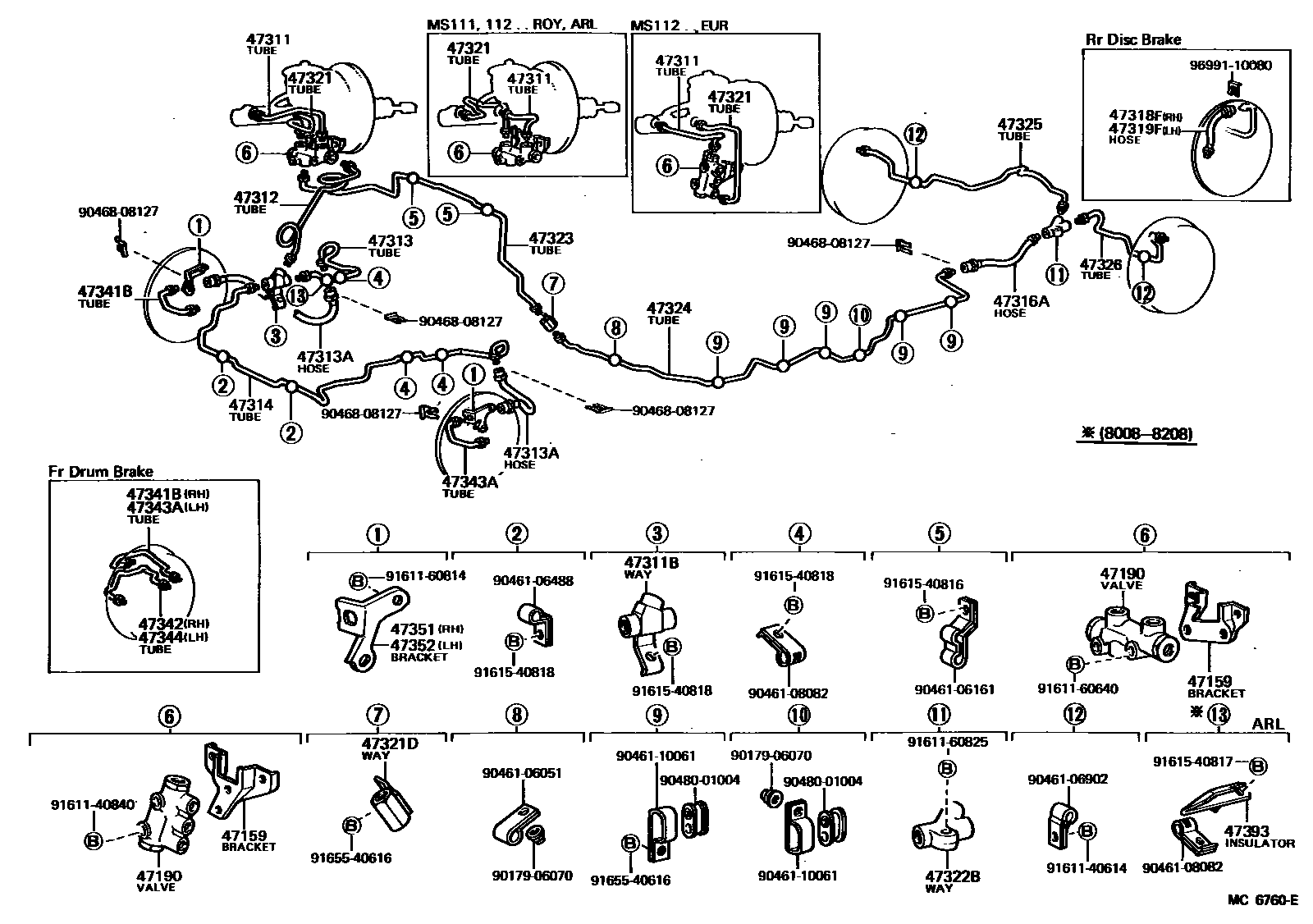

BRAKE TUBE & CLAMP

0001 1 0002 1

47159BRACKET, PROPORTIONING VALVE

main47159-30100iMS112..RHD..EUR197909-198307

main47159-30110iMS112..GEN¥680197909-198307

main47159-30130iMS112..LHD..EFI197909-198307

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12010iRS110¥12,800197909-198307

main47190-12010iMS112..SED..LHD..EFI¥12,800197909-198307

FR DISC BRAKE

main47190-12030iMS112..LHD..SAL..EFI¥13,500198108-198307

main47190-14010iLS110..BTP..GEN¥12,200197909-198307

FR DRUM BRAKE

main47190-14020iLS110,MS11#..WG¥15,000197909-198108

main47190-30020iMS112..RHD..EUR¥12,000197909-198108

main47190-30080iMS112..ARL¥13,300198008-198307

main47190-30090iMS112..ROY..GEN¥13,300197909-198307

main47190-30100iMS112..RHD..EUR¥12,800198108-198307

47311TUBE, FRONT BRAKE, NO.1

main47311-30300iMS112..ARL198008-198307

main47311-30310iMS112..ROY..GEN197909-198307

main47311-30320iLS110,RS110¥500197909-198307

main47311-30330iMS112..RHD..EUR197909-198307

main47311-30340iMS112..LHD197909-198307

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10014iLS110,MS11#,RS110..RHD¥640197909-198307

main90413-10092iLS110,MS11#,RS110..LHD¥790197909-198307

47312TUBE, FRONT BRAKE, NO.2

main47312-30060iMS112..RHD..(ARL,EUR)197909-198307

main47312-30070iLS110..EUR197909-198307

main47312-30080iMS112..LHD..EFI197909-198307

main47312-30090iLS110,MS11#,RS110..RHD..(ARL,GEN)¥770197909-198307

47313TUBE, FRONT BRAKE, NO.3

main47313-30090iLS110,MS11#,RS110..RHD¥1,360197909-198307

main47313-30120iLS110,MS11#,RS110..LHD197909-198307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02360iLS110,MS11#,RS110¥1,510197909-198307

DISC BRAKE

main90947-02361iLS110,RS110..SED..BTP..GEN¥1,880197909-198307

DRUM BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47314-30120iLS110,MS11#,RS110..LHD197909-198307

main47314-30130iLS110,MS11#,RS110..RHD¥3,550197909-198307

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iLS110,MS11#,RS110¥1,190197909-198307

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32105iMS11#..ROY¥1,190197909-198307

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32105iMS112..SAL..EUR¥1,190197909-198307

47321TUBE, REAR BRAKE, NO.1

main47321-30020iMS112..ARL198008-198307

main47321-30030iMS11#..ROY197909-198307

main47321-30040iLS110,RS110¥470197909-198307

main47321-30050iMS112..RHD..EUR197909-198307

main47321-30060iMS112..LHD197909-198307

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10041iLS110,MS11#,RS110¥1,090197909-198307

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLS110,MS11#,RS110¥590197909-198307

47323TUBE, REAR BRAKE, NO.3

main47315-30160iLS110,MS112,RS110..RHD..GEN197909-198108

main47315-30170iMS112..RHD..(ARL,EUR)197909-198108

main47315-30180iLS110..EUR197909-198307

main47315-30190iMS112..LHD..EFI197909-198307

main47315-30230iLS110,MS112,RS110..RHD..GEN198108-198307

main47315-30240iMS112..RHD..(ARL,EUR)198108-198307

47324TUBE, REAR BRAKE, NO.4

main47322-30050iLS110,MS11#..WG197909-198307

main47322-30060iLS110,MS11#,RS110..SED¥4,710197909-198307

47325TUBE, REAR BRAKE, NO.5

main47323-30050iLS110,MS112..(BTP,DLX,SAL)..GEN¥1,080197909-198307

main47323-30060iMS11#..ROY¥1,130197909-198307

47326TUBE, REAR BRAKE, NO.6

main47324-30010iRS110¥810197909-198307

main47324-30020iMS112..SAL..EUR¥860197909-198307

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47332-30110iLS110,RS110..SED..BTP..GEN¥620197909-198307

FR DRUM BRAKE

main47341-30010iLS110,MS11#,RS110¥480197909-198307

FR DISC BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47331-30061iLS110,RS110..SED..BTP..GEN¥1,320197909-198307

FR DRUM BRAKE

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47334-30110iLS110,RS110..SED..BTP..GEN¥620197909-198307

FR DRUM BRAKE

main47343-30010iLS110,MS11#,RS110¥480197909-198307

FR DISC BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47331-30061iLS110,RS110..SED..BTP..GEN¥1,320197909-198307

FR DRUM BRAKE

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30120iLS110,MS11#,RS110197909-198307

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30070iLS110,MS11#,RS110197909-198307

47393INSULATOR, BRAKE TUBE HEAT

main47393-30010iMS112..ARL198008-198208

9017906070

main90179-06070¥180

9046106051

main90461-06051¥170

9046106161

main90461-06161¥340

9046106488

main90461-06488¥270

9046106902

main90461-06902¥230

9046108082

main90461-08082¥170

9046110061

main90461-10061¥200

9046808127

main90468-08127

9048001004

main90480-01004¥240

9161140614

main91611-40614¥180

9161140840

main91611-40840¥180

9161160640

main91611-60640¥130

9161160814

main91611-60814¥100

9161160825

main91611-60825¥140

9161540816

main91615-40816¥160

9161540817

main91615-40817

9161540818

main91615-40818¥140

9165540616

main91655-40616¥120

9699110080

main96991-10080¥100

44 parts on this diagram · 2 diagrams in section
