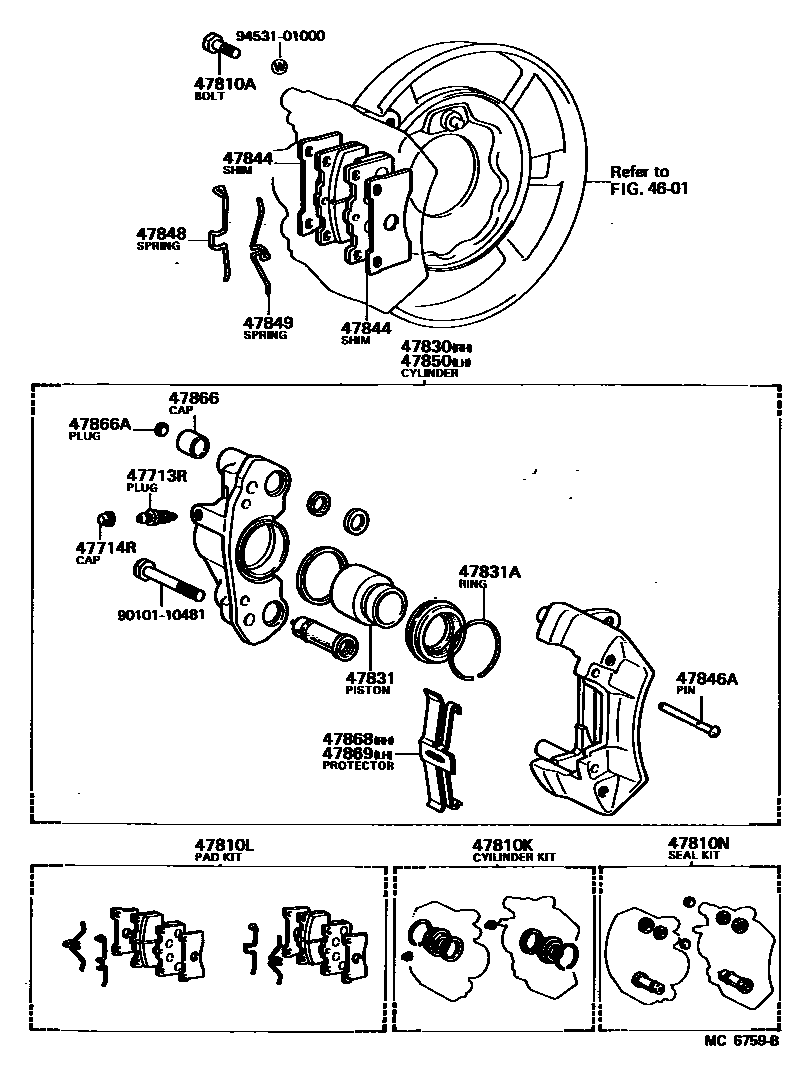

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iMS11#..ROY197909-198307

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMS11#..ROY197909-198307

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10020iMS11#..ROY197909-198307

47810KCYLINDER KIT, DISC BRAKE, REAR

main04479-30040iMS11#..ROY197909-198307

sub04479-30041

47810LPAD KIT, DISC BRAKE, REAR

main04492-30030iMS11#..ROY197909-198307

sub04466-30070

47810NSEAL KIT, DISC BRAKE, REAR

main04498-30010iMS11#..ROY197909-198307

sub04498-30011

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-30070iMS11#..ROY197909-198307

47831PISTON, REAR DISC BRAKE

main47731-30030iMS11#..ROY197909-198307

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-48044iMS11#..ROY197909-198307

47844SHIM, ANTISQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-30070iMS11#..ROY197909-198307

47846APIN, W/HOLE(FOR REAR DISC BRAKE PAD)

main90240-06133iMS11#..ROY197909-198307

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-30030iMS11#..ROY197909-198307

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-30010iMS11#..ROY197909-198307

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30070iMS11#..ROY197909-198307

47866CAP, TORQUE PLATE PIN, REAR

main47766-12010iMS11#..ROY197909-198307

47866APLUG, HOLE(FOR TORQUE PLATE PIN REAR CAP)

main90950-01121iMS11#..ROY197909-198307

47868PROTECTOR, DISC BRAKE PAD, REAR RH

main47767-30020iMS11#..ROY197909-198307

47869PROTECTOR, DISC BRAKE PAD, REAR LH

main47767-30020iMS11#..ROY197909-198307

9010110481

main90101-10481

9453101000

main94531-01000

21 parts on this diagram · 2 diagrams in section
