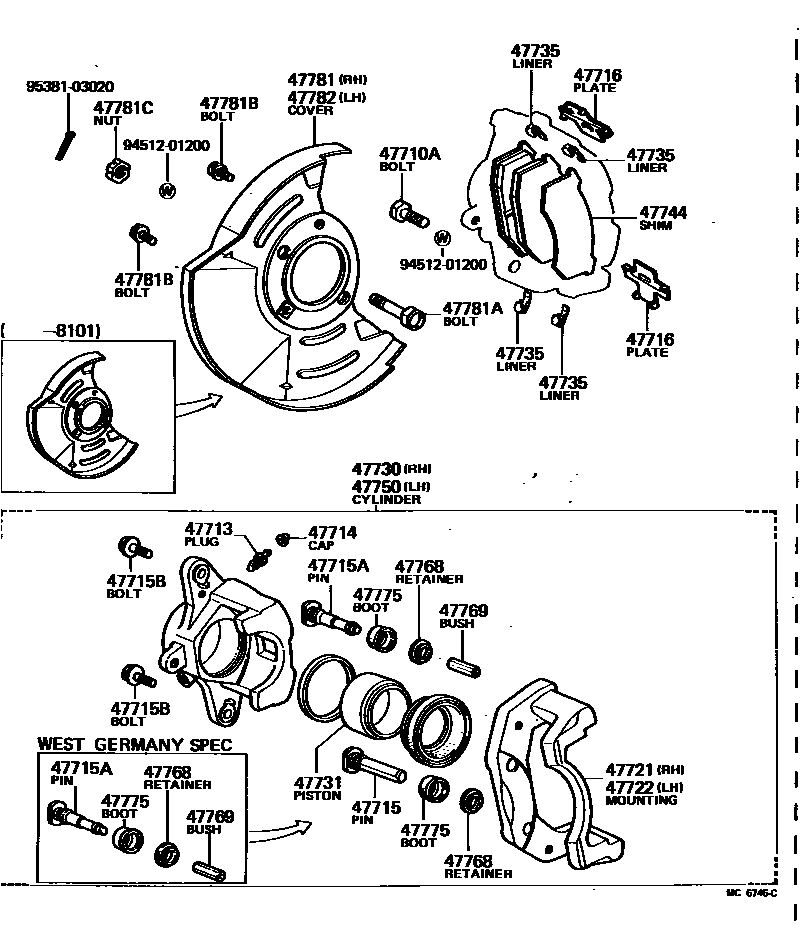

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iLS110,MS11#,RS110197909-198307

*12-1.25PX31-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12030iLS110,MS11#,RS110197909-198307

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLS110,MS11#,RS110197909-198307

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-30010iLS110,MS11#,RS110197909-198307

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-30030iMS112..LHD..SAL..EFI198104-198307

WEST GERMANY SPEC

main47715-39015iLS110,MS11#,RS110197909-198307

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08019iLS110,MS11#,RS110197909-198307

main90105-08039iMS112..LHD..SAL..EFI198104-198307

WEST GERMANY SPEC

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30020iLS110,MS11#,RS110197909-198307

sub47716-30021

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30020iLS110,MS11#,RS110197909-198307

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30020iLS110,MS11#,RS110197909-198307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30110iLS110,MS11#,RS110197909-198307

main47730-30120iMS112..LHD..SAL..EFI198104-198307

WEST GERMANY SPEC

47731PISTON, FRONT DISC BRAKE

main47731-30050iLS110,MS11#,RS110197909-198307

47735LINER, FRONT BRAKE PAD GUIDE

main47736-30030iLS110,MS11#,RS110197909-198307

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-30110iLS110,MS11#,RS110197909-198307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30110iLS110,MS11#,RS110197909-198307

main47750-30120iMS112..LHD..SAL..EFI198104-198307

WEST GERMANY SPEC

47768RETAINER, DUST SEAL

main47768-30010iLS110,MS11#,RS110197909-198307

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-30010iLS110,MS11#,RS110197909-198307

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30010iLS110,MS11#,RS110197909-198307

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-30061iLS110,MS11#,RS110197909-198005

sub47703-30062

main47703-30062iLS110,MS11#,RS110198005-198101

main47703-30070iLS110,MS112,RS110198101-198307

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12044iLS110,MS11#,RS110197909-198307

47781BBOLT(FOR DUST COVER SETTING)

main91611-60812iLS110,MS11#,RS110197909-198307

*8-1.25PX12-7,L=12

sub91611-B0812

main91611-60818iLS110,MS11#,RS110197909-198307

*8-1.25PX18-18,L=18

sub90119-08830

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iLS110,MS11#,RS110197909-198307

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-30061iLS110,MS11#,RS110197909-198005

sub47704-30062

main47704-30062iLS110,MS11#,RS110198005-198101

main47704-30070iLS110,MS112,RS110198101-198307

9451201200

main94512-01200

9538103020

main95381-03020

24 parts on this diagram · 3 diagrams in section
