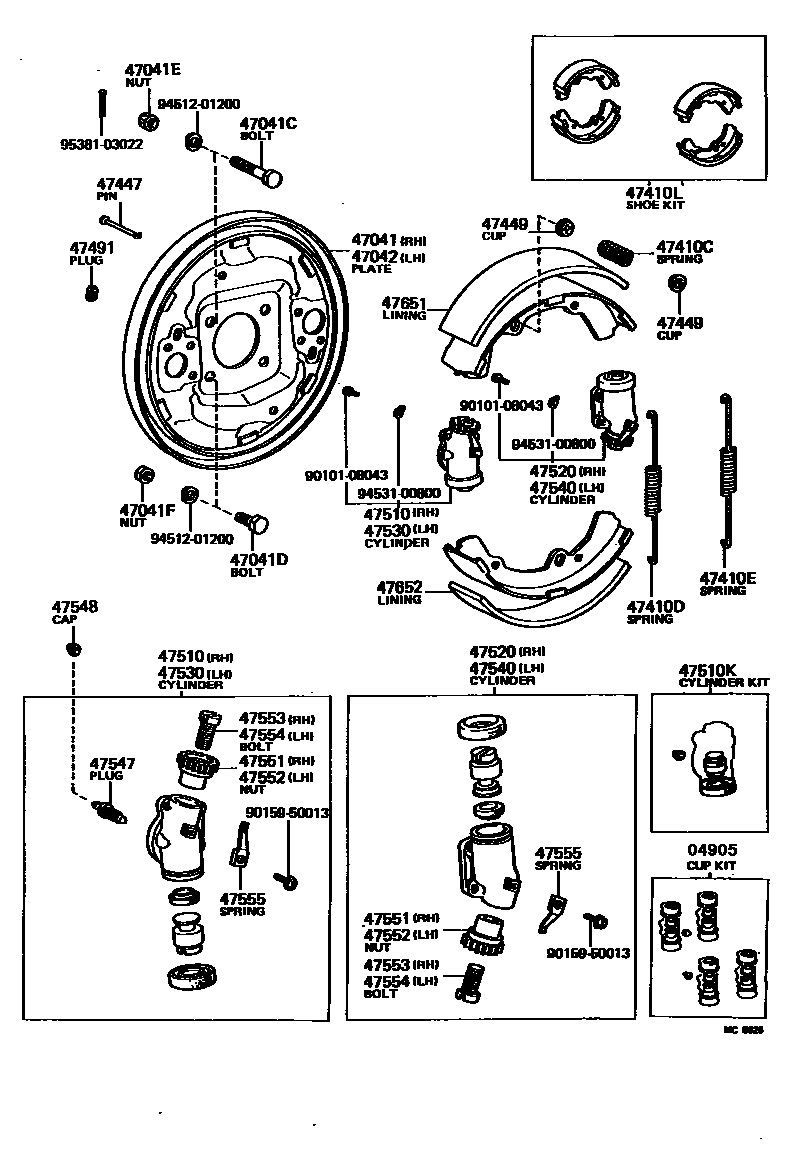

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
sub47041-30090
47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
*12-1.5PX61.5-24
47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
sub47042-30090
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410LSHOE KIT, FRONT BRAKE
sub04494-30031
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491PLUG, HOLE(FOR FRONT BRAKE)
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510KCYLINDER KIT, FRONT WHEEL
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9010108043
main90101-08043
9015950013
main90159-50013
9451201200
main94512-01200
9453100800
main94531-00800
9538103022
main95381-03022
33 parts on this diagram · 1 diagram in section
