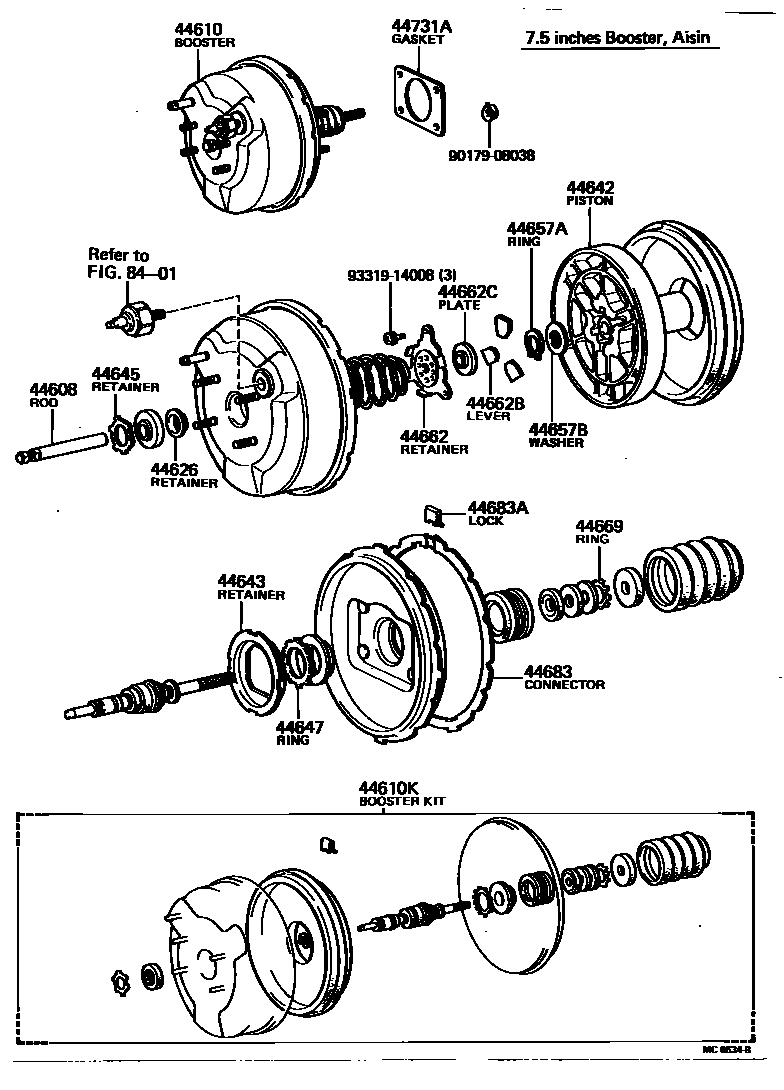

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30340iMS112..ARL,EUR197909-198307

main44606-35100iLS110,MS111..WG197909-198307

AISIN,7.5INCHES

main44606-35100iMS11#..ROY197909-198307

AISIN

main44608-14040iRS110..BTP..GEN197909-198108

JKC,7.5INCHES

main44608-22090iMS11#..ROY197909-198307

JKC,9INCHES

main44608-22090iMS11#..ROY197909-198008

JKC

44610BOOSTER ASSY, BRAKE

main44610-30300iMS111..WG197909-198307

AISIN

main44610-30310iMS112..SED..GEN197909-198307

JKC,9INCHES

main44610-30320iLS110..WG197909-198108

AISIN

main44610-30330iLS110..SED197909-198307

JKC,9INCHES

main44610-30340iMS112..ARL,EUR197909-198307

AISIN

main44610-30360iRS110..BTP..GEN197909-198108

JKC,7.5INCHES

main44610-30370iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44610KBOOSTER KIT, BRAKE

main04443-30240iMS111..WG197909-198307

AISIN

main04443-30250iRS110197909-198307

JKC,9INCHES

main04443-30260iLS110..WG197909-198108

main04443-30270iLS110197909-198307

JKC,9INCHES

main04443-30280iMS112..ARL,EUR197909-198307

AISIN

main04443-30290iMS112..ARL198008-198307

JKC,7.5INCHES

main04443-30300iRS110..BTP..GEN197909-198108

JKC,7.5INCHES

main04443-30310iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44626RETAINER, BOOSTER ROD CUP

main44626-60010iMS112..ARL,EUR197909-198307

AISIN,7.5INCHES

main44626-60010iLS110..SED..BTP..GEN197909-198307

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14170iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44642-30030iMS112..WG..CBR197909-198307

AISIN

main44642-30030iLS110,MS111..WG197909-198307

main44642-30310iMS11#..ROY197909-198307

JKC,9INCHES

main44642-30340iMS112..ARL,EUR197909-198307

main44642-30360iRS110..BTP..GEN197909-198108

JKC,7.5INCHES

44643RETAINER, DIAPHRAGM

main44643-30340iMS112..ARL,EUR197909-198307

main44643-60010iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44643-60010iMS11#..ROY197909-198307

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMS112..ARL,EUR197909-198307

AISIN

main44628-60010iLS110,MS111..WG197909-198307

AISIN,7.5INCHES

main44645-22020iMS11#..SED..(BTP,DLX,SAL)..GEN197909-198307

JKC,9INCHES

main44645-22020iMS11#..ROY197909-198008

JKC

main44645-22020iRS110..BTP..GEN197909-198108

JKC,7.5INCHES

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44629-30090iMS112..WG..CBR197909-198307

AISIN

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main96150-01600iMS112..WG..CBR197909-198307

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44662RETAINER, REACTION, NO.1

main44662-20460iMS112..WG..CBR197909-198307

AISIN

main44662-20460iLS110,MS111..WG197909-198307

main44662-35100iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44662BLEVER, REACTION

main44661-35100iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44661-35100iMS112..WG..CBR197909-198307

AISIN

44662CPLATE, REACTION, NO.1

main44607-20600iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44607-30300iMS112..WG..CBR197909-198307

AISIN

main44607-30300iLS110,MS111..WG197909-198307

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

main44669-60010iMS11#..ROY197909-198307

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44683ALOCK, CONNECTOR

main44683-20100iLS110..SED..BTP..GEN197909-198307

AISIN,7.5INCHES

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-30020iLS110,MS11#,RS110197909-198307

8401

9017908038

main90179-08038

9331914008

main93319-14008

20 parts on this diagram · 7 diagrams in section
