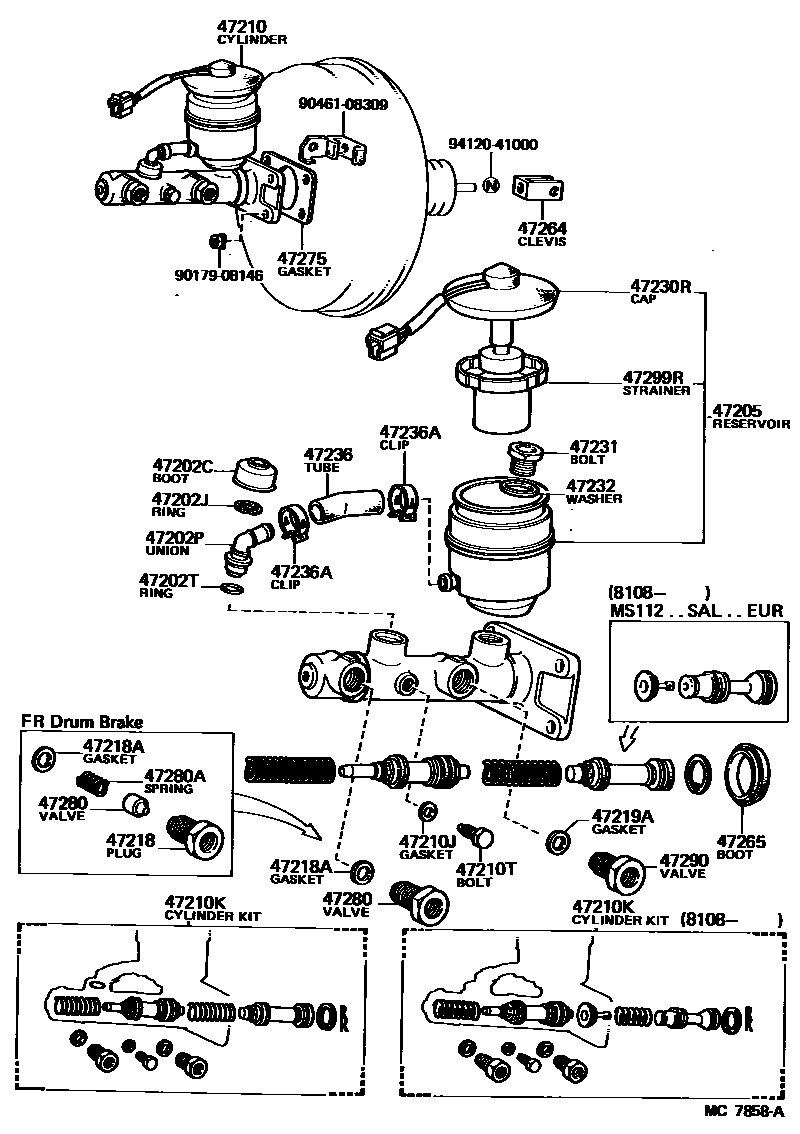

BRAKE MASTER CYLINDER

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iLS110,MS11#,RS110197909-198307

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iLS110,MS11#,RS110197909-198307

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iLS110,MS11#,RS110197909-198307

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iLS110,MS11#,RS110197909-198307

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-30070iLS110,MS11#,RS110197909-198307

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-30170iLS110,MS112,RS110..(BTP,DLX,SAL)..GEN197909-198307

ID=22.22,FR DISC BRAKE

main47201-30180iMS11#..ROY197909-198307

ID=22.22

main47201-30190iLS110,RS110..SED..BTP..GEN197909-198307

ID=22.22,FR DRUM BRAKE

main47201-30210iMS112..SAL..EUR198108-198307

ID=23.81

main47201-30220iLS110,MS112..(BTP,DLX)..EUR198108-198307

ID=23.81,FR DISC BRAKE

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLS110,MS11#,RS110197909-198307

47210KCYLINDER KIT, BRAKE MASTER

main04493-24010iLS110,MS112..(BTP,DLX)..EUR198108-198307

FR DISC BRAKE

main04493-30090iLS110,MS11#,RS110..(BTP,DLX,SAL)..(EUR,GEN)197909-198307

FR DISC BRAKE

main04493-30100iMS11#..ROY197909-198307

main04493-30110iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

main04493-30130iMS112..SAL..EUR198108-198307

FR DISC BRAKE

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLS110,MS11#,RS110197909-198307

main90109-06077iMS112..SAL..EUR198108-198307

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-30030iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLS110,MS11#,RS110197909-198307

FR DISC BRAKE

main90430-11001iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iLS110,MS11#,RS110197909-198307

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-20051iLS110,MS11#,RS110197909-198307

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iLS110,MS11#,RS110197909-198307

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iLS110,MS11#,RS110197909-198307

47236TUBE, RESERVOIR BRAKE

main47234-20010iLS110,MS11#,RS110197909-198307

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iLS110,MS11#,RS110197909-198307

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20020iLS110,MS11#,RS110197909-198307

47265BOOT, MASTER CYLINDER

main47265-20050iLS110,MS11#,RS110197909-198307

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iLS110,MS11#,RS110197909-198307

main47275-24010iLS110,MS112..EUR198108-198307

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iLS110,MS11#,RS110197909-198307

FR DISC BRAKE

sub47280-14010

main47281-30020iLS110..BTP..GEN197909-198307

FR DRUM BRAKE

47280ASPRING, COMPRESSION

main90504-05001iLS110,RS110..SED..BTP..GEN197909-198307

FR DRUM BRAKE

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iLS110,MS11#,RS110197909-198307

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLS110,MS112,RS110198107-198307

main47299-20010iLS110,MS11#,RS110197909-198107

9017908146

main90179-08146

9046108309

main90461-08309

9412041000

main94120-41000

27 parts on this diagram · 1 diagram in section
