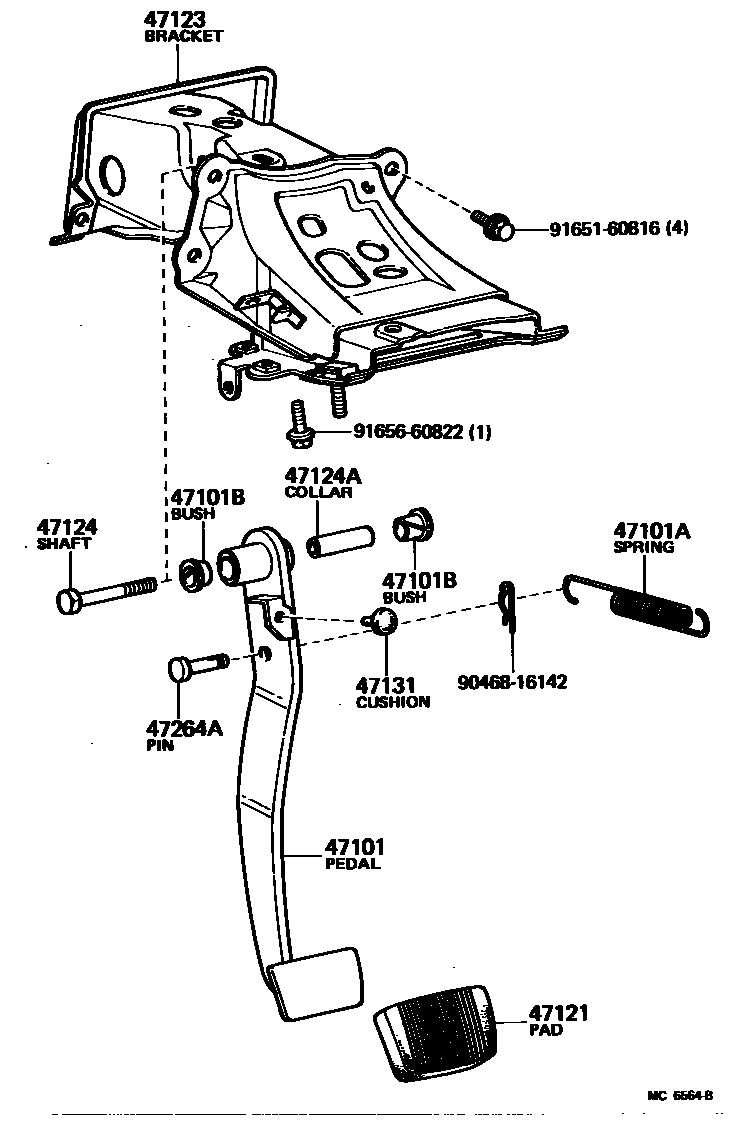

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-30190iLS110,MS11#,RS110..RHD..MTM197909-198307

main47101-30200iLS110,MS11#..RHD..ATM197909-198307

main47101-30210iLS110,MS11#,RS110..LHD..MTM197909-198307

main47101-30220iLS110,MS11#..LHD..ATM197909-198307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12026iLS110,MS112,RS110..LHD198008-198307

main90506-12484iLS110,MS11#,RS110197909-198307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iLS110,MS11#,RS110197909-198307

47121PAD, BRAKE PEDAL

main31321-30040iLS110,MS11#,RS110..MTM197909-198307

main47121-30050iLS110,MS11#..ATM197909-198307

47123BRACKET, BRAKE PEDAL

main55106-30140iLS110,MS11#,RS110..RHD197909-198007

main55106-30141iLS110,MS11#,RS110..RHD198007-198108

sub55106-30142

main55106-30142iLS110,MS112,RS110..RHD198108-198307

main55106-30150iLS110,MS11#,RS110..LHD197909-198007

main55106-30151iLS110,MS11#,RS110..LHD198007-198108

sub55106-30152

main55106-30152iLS110,MS112,RS110..LHD198108-198307

47124SHAFT, BRAKE PEDAL

main90101-10039iLS110,MS11#,RS110..RHD197909-198307

main90101-10480iLS110,MS11#,RS110..LHD197909-198307

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iLS110,MS11#,RS110..RHD197909-198307

main90387-10128iLS110,MS11#,RS110..LHD197909-198307

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLS110,MS11#,RS110197909-198307

47264APIN(FOR PUSH ROD)

main90249-10064iLS110,MS11#,RS110197909-198307

9046816142

main90468-16142

9165160816

main91651-60816

9165660822

main91656-60822

12 parts on this diagram · 2 diagrams in section
