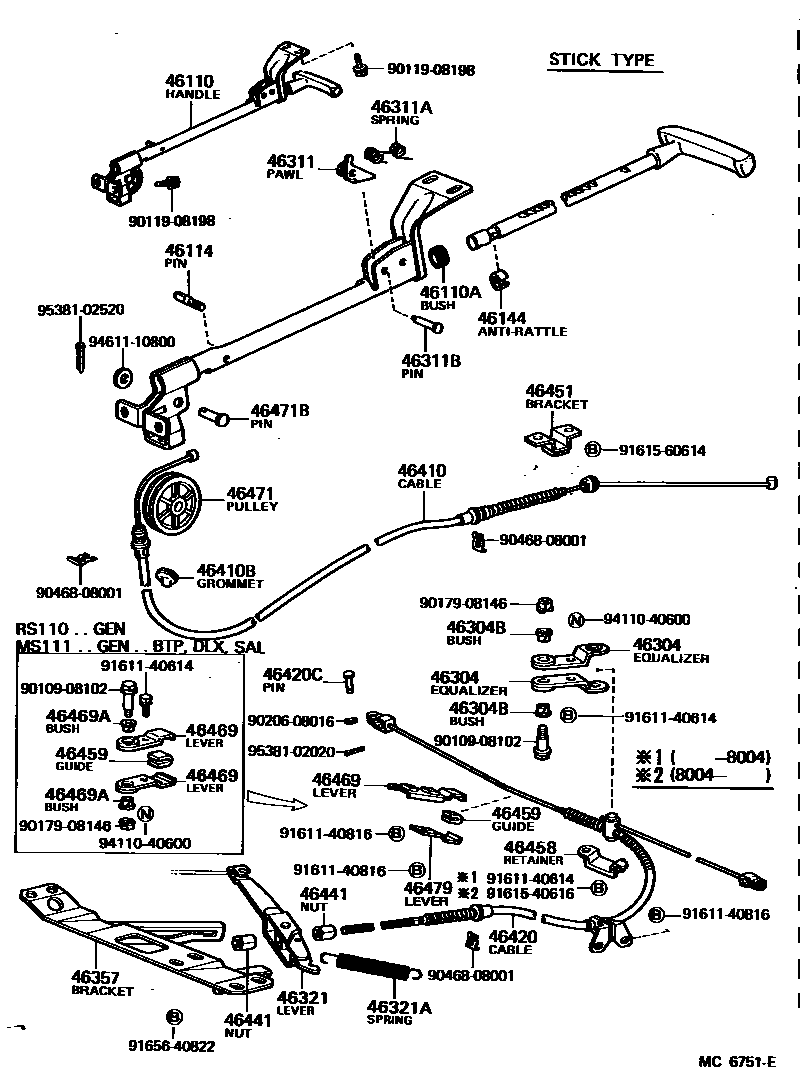

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46104-30070iLS110,MS11#,RS110..RHD..(3HC,4H,4HC)197909-198307

main46104-30080iLS110,MS111,RS110..LHD..(3HC,4H)197909-198307

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-31010iLS110,MS11#,RS110197909-198307

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iLS110,MS11#,RS110197909-198307

46311PAWL, PARKING BRAKE

main46311-30041iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46321LEVER, PARKING BRAKE INTERMEDIATE

main46301-30110iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198307

main46301-30120iMS11#..(3HC,4HC)..ROY197909-198307

main46301-30130iMS112..4FC..ROY197909-198307

main46301-30150iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)..GEN197909-198307

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-20010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

main90506-20024iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46357BRACKET, LEVER SUPPORT

main46359-30060iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

main46359-30080iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30220iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

main46410-30240iLS110,MS11#,RS110..RHD..(3HC,4H,4HC)197909-198307

main46410-30260iLS110,MS112,RS110..LHD..(4H,4HC)197909-198307

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-26043iLS110,MS112,RS110..LHD..(4H,4HC)197909-198307

main90480-33002iLS110,MS11#,RS110..RHD..(3HC,4H,4HC)197909-198307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30090iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198307

main46420-30110iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)..(EUR,GEN)197909-198307

main46420-30190iMS11#..(3HC,4HC)..ROY197909-198307

main46420-30210iMS112..SAL..EUR197909-198307

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08028iLS110,MS11#,RS110197909-198307

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iLS110,MS11#,RS110197909-198307

46451BRACKET, CABLE SUPPORT

main46451-30071iRS110..EUR197909-198307

46458RETAINER, CABLE

main46458-30040iLS110,MS11#,RS110197909-198004

main46458-30042iLS110,MS11#,RS110198004-198307

46459GUIDE, CABLE

main46459-30010iLS110,MS112,RS110..SED197909-198307

main46459-30020iLS110,MS112..WG198205-198307

46469LEVER, CABLE GUIDE SUPPORT

main46469-30020iRS110197909-198307

main46469-31011iMS111..ROY197909-198307

46469ABUSH, CABLE GUIDE SUPPORT LEVER

main90385-12029iRS110197909-198307

46471PULLEY, WIRE

main46471-30010iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iLS110,MS11#,RS110..3HC,4H,4HC197909-198307

46479LEVER, CABLE GUIDE SAPPORT, NO.2

main46479-30010iLS110197909-198307

9010908102

main90109-08102

9011908198

main90119-08198

9017908146

main90179-08146

9020608016

main90206-08016

9046808001

main90468-08001

9161140614

main91611-40614

9161140816

main91611-40816

9161540616

main91615-40616

9161560614

main91615-60614

9165640822

main91656-40822

9411040600

main94110-40600

9461110800

main94611-10800

9538102020

main95381-02020

9538102520

main95381-02520

39 parts on this diagram · 3 diagrams in section
