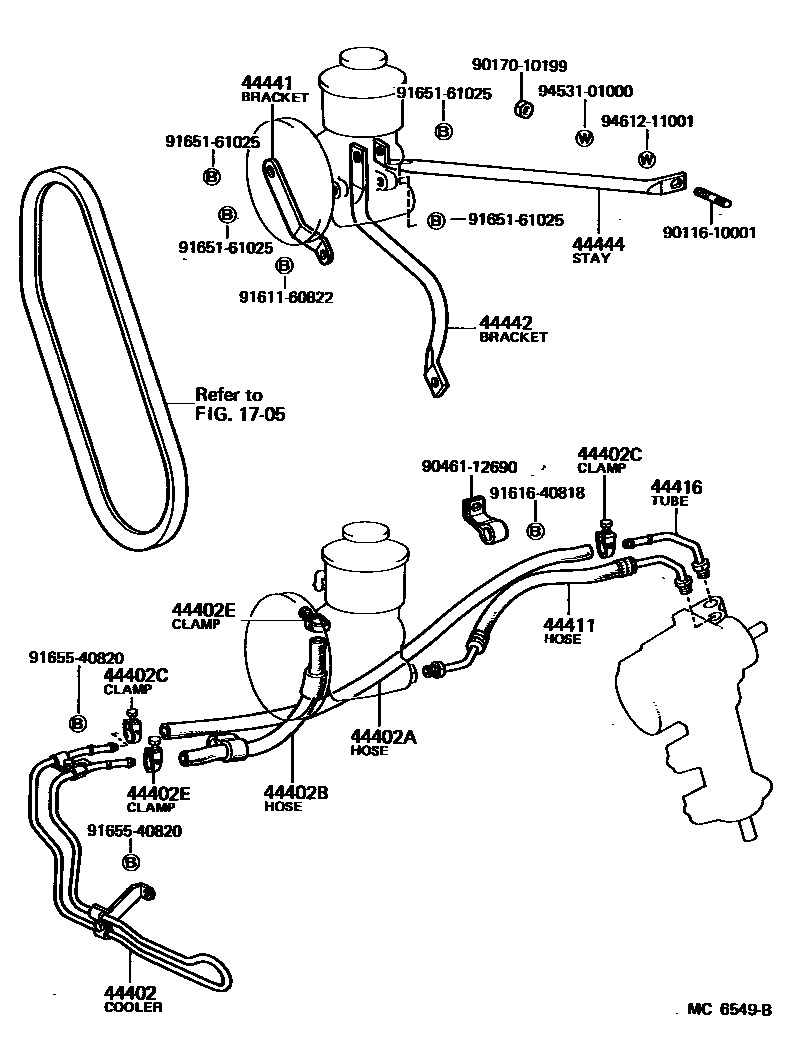

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1705

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-30060iMS112..EUR,GEN198008-198108

main44402-30080iMS112..ARL198008-198108

sub44402-30H00

main44402-30081iMS112198108-198307

main44417-30020iLS110..RHD197909-198307

main44417-30041iLS110..LHD197909-198307

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18062iMS11#..LHD197909-197910

main90445-18065iMS112..RHD..(EUR,GEN)198012-198108

main90445-18066iLS110..RHD197909-198307

main90445-18085iLS110..LHD197909-198307

main90447-18005iMS11#..LHD197910-198307

main90447-29002iMS112..ARL198012-198108

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18064iLS110197909-198307

main90447-18002iMS11#197909-198108

main90447-18007iMS112198108-198307

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iLS110,MS11#197909-198307

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iLS110,MS11#197909-198307

44411HOSE, PRESSURE FEED

main44411-30110iMS11#..ARL197909-198307

main44411-30120iLS110..RHD197909-198307

main44411-30130iMS11#..RHD..(EUR,GEN)197909-198307

main44411-30140iLS110..LHD197909-198307

main44411-30160iMS11#..LHD197909-198307

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-30030iLS110,MS11#..RHD197909-198307

main44416-30050iLS110,MS11#..LHD197909-198307

44441BRACKET, PUMP, FRONT

main44441-30040iMS11#..ARL197909-198307

44442BRACKET, PUMP, REAR

main44442-30060iMS11#..ARL197909-198307

44444STAY, PUMP, REAR

main44444-22040iMS112..ARL198008-198010

main44444-30061iMS11#..EUR,GEN197909-198307

main44444-30070iMS111..ARL197909-198008

main44444-30080iMS112..ARL198010-198307

9011610001

main90116-10001

9017010199

main90170-10199

9046112690

main90461-12690

9161160822

main91611-60822

9161640818

main91616-40818

9165161025

main91651-61025

9165540820

main91655-40820

9453101000

main94531-01000

9461211001

main94612-11001

20 parts on this diagram · 6 diagrams in section
