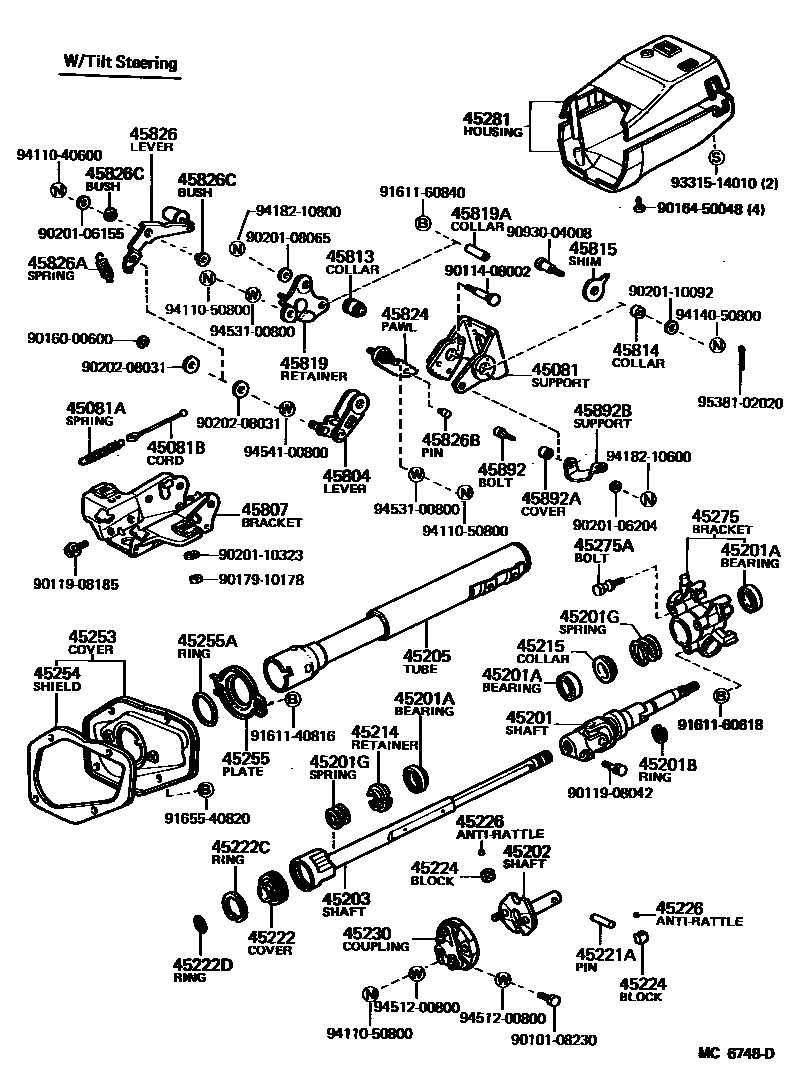

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

45081SUPPORT SUB-ASSY, TILT STEERING

main45081-30010iLS110,MS112,RS110..LHD..EUR197909-198307

sub45081-35010

45081ASPRING, TENSION(FOR TILT STEERING)

main90506-23009iLS110,MS112,RS110..LHD..EUR197909-198307

45081BCORD(FOR TILT STEERING)

main90945-02043iMS112..ROY..GEN..EFI197909-198307

L=130

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22050iMS112..ROY..GEN..EFI197909-198307

W/TILT STEERING

main45210-30040iMS112..LHD..EFI197909-198307

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iMS112..ROY..GEN..EFI197909-198307

W/TILT STEERING,UPR

main90363-18038iMS112..LHD..EFI197909-198307

UPR

main90363-28001iMS112..ROY..GEN..EFI197909-198307

W/TILT STEERING,CTR

main90369-43027iLS110,MS11#,RS110197909-198307

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLS110,MS11#,RS110197909-198307

T=1.20,T=1.15-1.25

main90520-17196iMS112..CBR197909-198307

T=1.35-1.45,T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iLS110,MS11#,RS110197909-198307

LWR

main90501-45011iLS110,MS112..(DLX,ROY,SAL)..(ARL,EUR)197909-198307

W/TILT STEERING,UPR

main90501-45397iLS110,MS112,RS110..EUR197909-198008

W/TILT STEERING,UPR

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-30040iLS110,MS11#,RS110197909-198307

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45220-30030iLS110,MS112,RS110..LHD..EUR197909-198307

W/TILT STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-30100iLS110,MS112,RS110..LHD..EUR197909-198307

W/TILT STEERING

main45870-30110iRS110..BTP,DLX197909-198307

45214RETAINER, MAIN SHAFT SPRING

main45214-30030iLS110,MS11#,RS110197909-198307

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iLS110,MS112..(DLX,ROY,SAL)..(ARL,EUR)197909-198307

W/TILT STEERING

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iLS110,MS11#,RS110197909-198307

45222COVER, STEERING GEAR DUST

main45222-30030iLS110,MS11#,RS110197909-198307

45222CRING, HOLE SNAP(FOR DUST COVER)

main90521-52003iLS110,MS11#,RS110197909-198307

45222DRING, O(FOR DUST COVER)

main90301-23054iLS110,MS11#,RS110197909-198307

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30040iLS110,MS11#,RS110197909-198307

15.97-16.00,L=15.97-16.00

main45225-30040iLS110,MS11#,RS110197909-198307

16.00-16.03,L=16.00-16.03

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30020iLS110,MS11#,RS110197909-198307

sub45226-30021

45230COUPLING ASSY, FLEXIBLE

main45230-30100iLS110,MS11#,RS110197909-198307

45253COVER, STEERING COLUMN HOLE

main45025-30060iLS110,MS11#,RS110..RHD..(3FC,4F,4FC)197909-198307

main45025-30070iLS110,MS11#,RS110..RHD..(3HC,4H,4HC)..(CBR,DSL)197909-198307

main45025-30080iLS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)197909-198307

main45025-30090iLS110,MS111,RS110..LHD..(3HC,4H)197909-198307

45254SHIELD, STEERING COLUMN HOLE

main45254-30070iLS110,MS11#,RS110..RHD197909-198307

main45254-30080iLS110,MS11#,RS110..LHD197909-198307

45255PLATE, STEERING COLUMN HOLE COVER

main45255-30040iLS110,MS11#,RS110197909-198307

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iLS110,MS11#,RS110197909-198307

45275BRACKET, STEERING COLUMN, UPPER

main45280-24030iMS112..RHD..EUR198104-198108

sub45280-24031

main45280-30200iLS110,MS11#,RS110..RHD..(3FC,4F,4FC,5F)..GEN197909-198104

sub45280-24030

main45280-30210iLS110,MS11#,RS110..RHD..4H197909-198107

sub45280-30211

main45280-30220iMS11#..RHD..(3HC,4HC)197909-198108

main45280-30230iLS110,MS11#,RS110..LHD..(3FC,4F,4FC,4H,5F)197909-198108

sub45280-30231

main45280-30240iLS110,MS111,RS110..RHD..(3FC,4F)..(DLX,ROY,SAL)197909-198107

W/TILT STEERING

sub45280-30280

main45280-30260iMS111..LHD..3HC197909-198108

main45280-30270iLS110,MS111,RS110..LHD..(3FC,4F)..(DLX,ROY,SAL)197909-198108

W/TILT STEERING

sub45280-30300

main45280-30280iLS110,MS112..RHD..(4F,4FC,5F)..(DLX,ROY,SAL)198107-198307

W/TILT STEERING

main45280-30290iLS110,MS112..RHD..(4F,4FC,5F)..(CBR,DSL)198108-198307

main45280-30300iLS110,MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL)..GEN198108-198307

W/TILT STEERING

main45280-30310iLS110,MS112,RS110..RHD..4H198107-198307

sub45280-20560

main45280-30320iLS110,MS112..LHD;RS110..LHD..(BTP,DLX)198108-198307

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iLS110,MS112,RS110..LHD..EUR197909-198103

main45897-14010iLS110,MS112..(DLX,SAL)..EUR198207-198307

sub45897-12030

main45897-30020iLS110,MS112..LHD..EUR198103-198207

sub45897-14010

45281HOUSING, STEERING COLUMN

main45286-30960-02iMS111..RHD..4H..SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub45286-30980

main45286-30960-04iLS110,MS11#,RS110..RHD..4H197909-198108

BLUE,BLUE,TRIM8#

sub45286-30980

main45286-30960-05iLS110,MS11#,RS110..RHD..4H197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30980

main45286-30961-02iMS11#..RHD..(3HC,4HC)..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub45286-30970

main45286-30961-04iMS11#..RHD..(3HC,4HC)197909-198108

BLUE,BLUE,TRIM8#

sub45286-30970

main45286-30961-05iMS11#..RHD..(3HC,4HC)197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30970

main45286-30962-02iMS11#..RHD..(3FC,4F,4FC)..(ROY,SAL)..(EUR,GEN)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub45286-30981

main45286-30962-04iMS11#,RS110..RHD..(3FC,4F,4FC)..(EUR,GEN)197909-198108

BLUE,BLUE,TRIM8#

sub45286-30981

main45286-30962-05iLS110,MS112,RS110..RHD..(4F,4FC,5F)197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30981

main45286-30963-02iMS112..RHD..EUR197909-198108

DARK WINE,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-30963

sub45286-30982

main45286-30963-04iMS112..RHD..EUR197909-198108

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30963

sub45286-30982

main45286-30963-05iLS110,MS11#,RS110..RHD..(3FC,4F,5F)..(DLX,ROY,SAL)197909-198108

GREIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30963

sub45286-30982

main45286-30965-02iMS111..LHD..4H..SAL197909-198008

DARK WINE,RED/MAROON,TRIM3#

sub45286-30983

main45286-30965-04iLS110,MS112..LHD..4H197909-198108

BLUE,BLUE,TRIM8#

sub45286-30983

main45286-30965-05iLS110,MS112..LHD..4H197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30983

main45286-30966-02iMS111..LHD..3HC..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub45286-30966

main45286-30966-04iMS111..LHD..3HC197909-198108

BLUE,BLUE,TRIM8#

sub45286-30966

main45286-30966-05iMS111..LHD..3HC197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30966

main45286-30967-02iMS11#..LHD..(3FC,4F,4FC,5F)..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub45286-30984

main45286-30967-04iRS110..LHD..4F..(BTP,DLX);LS110,MS11#..LHD..(3FC,4F,4FC,5F)197909-198108

BLUE,BLUE,TRIM8#

sub45286-30984

main45286-30967-05iRS110..LHD..4F..(BTP,DLX);LS110,MS11#..LHD..(3FC,4F,4FC,5F)197909-198108

GREIGE,BEIGE,TRIM4#

sub45286-30984

main45286-30968-02iMS11#..LHD..(3FC,4F,4FC,5F)..(ROY,SAL)197909-198108

DARK WINE,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-30985

main45286-30968-04iLS110,MS112,RS110..LHD..(4F,4FC,5F)197909-198108

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30985

main45286-30968-05iLS110,MS111,RS110..LHD..(3FC,4F)..(DLX,ROY,SAL)197909-198108

GREIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30985

main45286-30970-03iMS112..RHD..4HC198108-198307

GRAY,GRAY,TRIM1#

main45286-30970-04iMS112..RHD..4HC198108-198307

BLUE,BLUE,TRIM8#

main45286-30970-05iMS112..RHD..4HC198108-198307

BEIGE,BEIGE,TRIM4#

main45286-30971-03iMS112..ROY..GEN..EFI198108-198307

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-30971

main45286-30971-04iMS112..ROY..GEN..EFI198108-198307

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30971

main45286-30971-05iMS112..ROY..GEN..EFI198108-198307

BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30971

main45286-30974-03iMS112..LHD..4HC198108-198307

GRAY,GRAY,TRIM1#

main45286-30974-04iMS112..LHD..4HC198108-198307

BLUE,BLUE,TRIM8#

main45286-30974-05iMS112..LHD..4HC198108-198307

BEIGE,BEIGE,TRIM4#

main45286-30979-03iMS112..RHD..EUR198108-198307

GRAY,GRAY,TRIM1#

main45286-30979-04iMS112..RHD..EUR198108-198307

BLUE,BLUE,TRIM8#

main45286-30979-05iMS112..RHD..EUR198108-198307

BEIGE,BEIGE,TRIM4#

main45286-30980-03iLS110,MS112,RS110..RHD..4H198108-198307

GRAY,GRAY,TRIM1#

sub45286-30980

main45286-30980-05iLS110,MS112,RS110..RHD..4H198108-198307

BEIGE,BEIGE,TRIM4#

sub45286-30980

main45286-30981-03iLS110,MS112..RHD..(4F,5F)198108-198307

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-30981

main45286-30981-04iMS112..RHD..5F198108-198307

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30981

main45286-30981-05iLS110,MS112..RHD..(4F,5F)198108-198307

BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30981

main45286-30982-03iLS110,MS112..RHD..(4F,5F)..(DLX,SAL)198108-198307

GRAY,GRAY,TRIM1#

sub45286-30982

main45286-30982-04iMS112..RHD..5F198108-198307

BLUE,BLUE,TRIM8#

sub45286-30982

main45286-30982-05iLS110,MS112..RHD..(4F,5F)..(DLX,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

sub45286-30982

main45286-30983-03iLS110,MS112,RS110..LHD..4H198108-198307

GRAY,GRAY,TRIM1#

sub45286-30983

main45286-30983-04iRS110..LHD..4H198107-198108

BLUE,BLUE,TRIM8#

sub45286-30983

main45286-30983-05iLS110,MS112,RS110..LHD..4H198108-198307

BEIGE,BEIGE,TRIM4#

sub45286-30983

main45286-30983-15iRS110..LHD..4H198107-198108

GREIGE,BEIGE,TRIM4#

sub45286-30983

main45286-30984-03iMS112..LHD..(4F,5F)198108-198307

GRAY,GRAY,TRIM1#

sub45286-30984

main45286-30984-04iMS112..LHD..5F..SAL198108-198307

BLUE,BLUE,TRIM8#

sub45286-30984

main45286-30984-05iLS110,RS110..LHD..(4F,5F)..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

sub45286-30984

main45286-30985-03iMS112..LHD..(4F,5F)198108-198307

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-30985

main45286-30985-04iRS110..SAL198108-198307

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30985

main45286-30985-05iMS112..LHD..(4F,5F)198108-198307

BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30985

main45286-30986-03iMS112..RHD..4FC..GEN198108-198307

GRAY,GRAY,TRIM1#

main45286-30986-04iMS112..SED..RHD..4FC..GEN198108-198307

BLUE,BLUE,TRIM8#

main45286-30986-05iMS112..RHD..4FC..GEN198108-198307

BEIGE,BEIGE,TRIM4#

main45286-30987-03iMS112..RHD..4FC..(ARL,GEN)198108-198307

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-30987

main45286-30987-04iMS112..SED..RHD..4FC..(ARL,GEN)198108-198307

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-30987

main45286-30987-05iMS112..RHD..4FC..(ARL,GEN)198108-198307

BEIGE,W/TILT STEERING,BEIGE,TRIM4#

sub45286-30987

main45286-30988-03iLS110,MS112..LHD..4FC198108-198307

GRAY,GRAY,TRIM1#

main45286-30988-04iMS112..LHD..4FC..(ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main45286-30988-05iLS110,MS112..LHD..4FC198108-198307

BEIGE,BEIGE,TRIM4#

main45286-30989-03iLS110,MS112..LHD..4FC198108-198307

GRAY,W/TILT STEERING,GRAY,TRIM1#

main45286-30989-04iMS112..LHD..4FC..(ROY,SAL)198108-198307

BLUE,W/TILT STEERING,BLUE,TRIM8#

main45286-30989-05iLS110,MS112..LHD..4FC198108-198307

BEIGE,W/TILT STEERING,BEIGE,TRIM4#

45804LEVER SUB-ASSY, STEERING TILT

main45804-30010iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)197909-198307

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-30010iLS110,MS112,RS110..RHD..(4F,4FC,5F)..(DLX,ROY,SAL)..GEN197909-198307

W/TILT STEERING

main45082-30020iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)197909-198307

W/TILT STEERING

main45807-30100iMS11#,RS110..RHD..GEN..CBR197909-198307

main45807-30110iLS110,MS11#..LHD;RS110..LHD..(BTP,DLX)197909-198307

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-22010iMS112..ROY..GEN..EFI197909-198307

OD=17.996-18.003,D=17.996-18.003

main45813-22020iMS112..ROY..GEN..EFI197909-198307

OD=18.003-18.010,D=18.003-18.010

main45813-22030iLS110,MS112,RS110..(4F,4FC,5F)..(DLX,ROY,SAL)..GEN197909-198307

OD=18.010-18.017,D=18.010-18.017

main45813-22040iMS112..ROY..GEN..EFI197909-198307

OD=18.017-18.024,D=18.017-18.024

main45813-22050iLS110,MS112..(DLX,ROY,SAL)..(ARL,EUR)197909-198307

OD=17.989-17.996,D=17.989-17.996

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-22010iLS110,MS112,RS110..LHD..EUR197909-198307

OD=17.982-18.000,D=17.982-18.000

main45814-22020iMS112..ROY..GEN..EFI197909-198307

OD=18.000-18.018,D=18.000-18.018

45815SHIM, TILT STEERING SUPPORT

main45815-22010iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)197909-198108

T=0.2

sub45815-22060

main45815-22020iLS110,MS112,RS110..EUR197909-198108

T=0.5

sub45815-22070

main45815-22030iLS110,MS112,RS110..LHD..EUR197909-198108

T=0.8

sub45815-22080

main45815-22040iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)197909-198108

T=1.4

sub45815-22090

main45815-22050iLS110,MS112,RS110..LHD..EUR197909-198108

T=1.8

sub45815-22100

main45815-22060iLS110,MS112,RS110..(4F,4FC,5F)..(DLX,ROY,SAL)..GEN198005-198307

T=0.2,T=0.2

main45815-22070iMS112..ROY..GEN..EFI198108-198307

T=0.5,T=0.8

main45815-22070iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)198005-198307

T=0.5,T=0.5

main45815-22080iLS110,MS112..(DLX,ROY,SAL)..(ARL,EUR)198005-198307

T=0.8,T=0.8

main45815-22090iLS110,MS111,RS110..(3FC,4F)..(DLX,ROY,SAL)198005-198307

T=1.4,T=1.4

main45815-22100iMS112..ROY..GEN..EFI198005-198307

T=1.8,T=1.8

45819RETAINER, TILT LEVER

main45809-30020iLS110,MS112,RS110..EUR197909-198003

sub45809-30021

main45809-30021iLS110,MS112,RS110..(4F,4FC,5F)..(DLX,ROY,SAL)..GEN198003-198307

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-08002iLS110,MS112,RS110..LHD..EUR197909-198307

45824PAWL, TILT STEERING

main45890-30020iLS110,MS112,RS110..LHD..EUR197909-198307

45826LEVER, STEERING TILT

main45826-30020iLS110,MS112,RS110..LHD..EUR197909-198307

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-14001iLS110,MS112,RS110..LHD..EUR197909-198307

45826BPIN(FOR STEERING TILT LEVER)

main72538-12010iLS110,MS112,RS110..LHD..EUR197909-198307

45826CBUSH(FOR STEERING TILT LEVER)

main90386-08123iLS110,MS112,RS110..LHD..EUR197909-198307

45892BOLT, TILT STEERING SUPPORT STOPPER

main45898-22010iLS110,MS112,RS110..LHD..EUR197909-198307

45892ACOVER, TILT STEERING SUPPORT STOPPER

main45899-22020iLS110,MS112,RS110..LHD..EUR197909-198307

45892BSUPPORT, TILT STEERING COLUMN COVER

main45089-30020iLS110,MS112,RS110..LHD..EUR197909-198307

main45289-30030iMS112..ROY..GEN..EFI198108-198307

9010108230

main90101-08230

9011408002

main90114-08002

9011908042

main90119-08042

9011908185

main90119-08185

9016000600

main90160-00600

9016450048

main90164-50048

9017910178

main90179-10178

9020106155

main90201-06155

9020106204

main90201-06204

9020108065

main90201-08065

9020110092

main90201-10092

9020110323

main90201-10323

9020208031

main90202-08031

9093004008

main90930-04008

9161140816

main91611-40816

9161160618

main91611-60618

9161160840

main91611-60840

9165540820

main91655-40820

9331514010

main93315-14010

9411040600

main94110-40600

9411050800

main94110-50800

9414050800

main94140-50800

9418210600

main94182-10600

9418210800

main94182-10800

9451200800

main94512-00800

9453100800

main94531-00800

9454100800

main94541-00800

9538102020

main95381-02020

69 parts on this diagram · 5 diagrams in section
