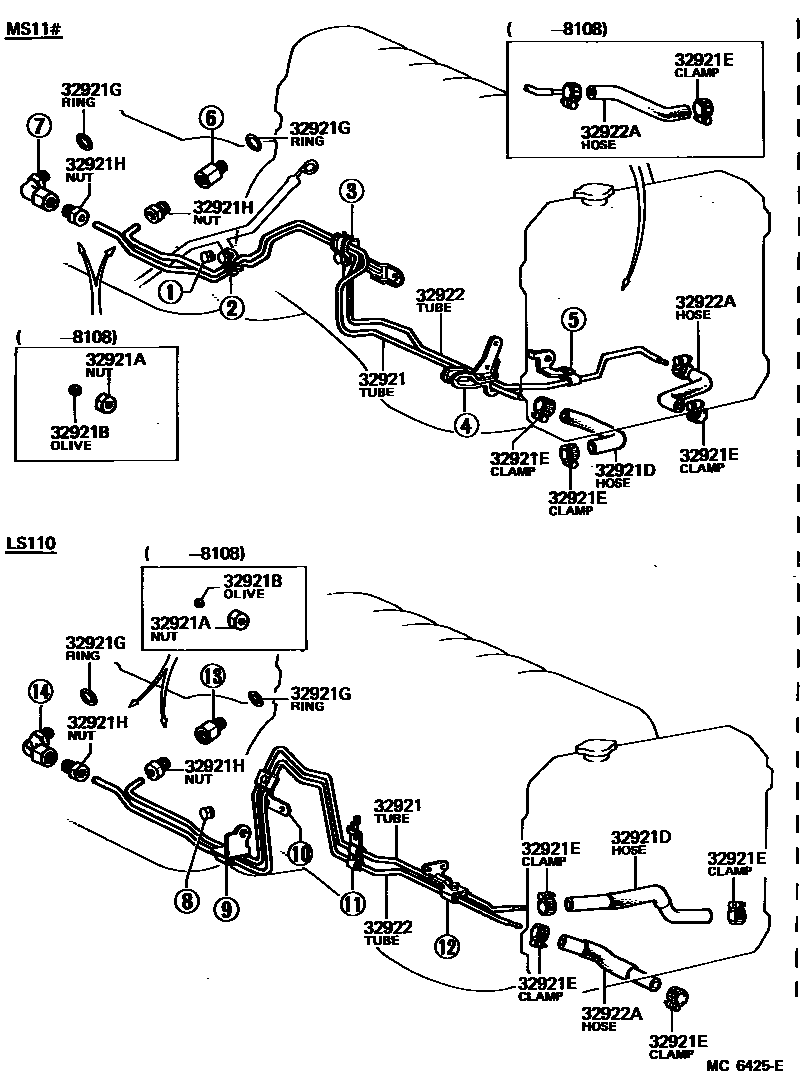

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30160iMS111..ATM197909-198008

main32921-30180iLS110..4FC197909-198108

main32921-30190iMS112..ATM197909-198108

main32921-30240iMS112..ATM198108-198307

main32921-30250iLS110..4FC198108-198307

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iLS110,MS11#..ATM197909-198108

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iLS110,MS11#..ATM197909-198108

32921DHOSE(FOR OIL COOLER INLET)

main32941-22010iMS11#..ATM197909-198307

main32942-22010iLS110..4FC197909-198307

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iLS110,MS11#..ATM197909-198307

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iLS110,MS11#..ATM197909-198307

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iLS110,MS112..ATM198108-198307

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30160iMS111..ATM197909-198008

main32922-30180iLS110..4FC197909-198008

main32922-30181iLS110..4FC198008-198108

main32922-30190iMS112..ATM197909-198008

main32922-30191iMS112..ATM198008-198108

main32922-30240iMS112..ATM198108-198307

main32922-30250iLS110..4FC198108-198307

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22010iMS11#..ATM197909-198108

main32942-22010iLS110..4FC197909-198307

main32942-30020iMS112..ATM198108-198307

9 parts on this diagram · 2 diagrams in section
