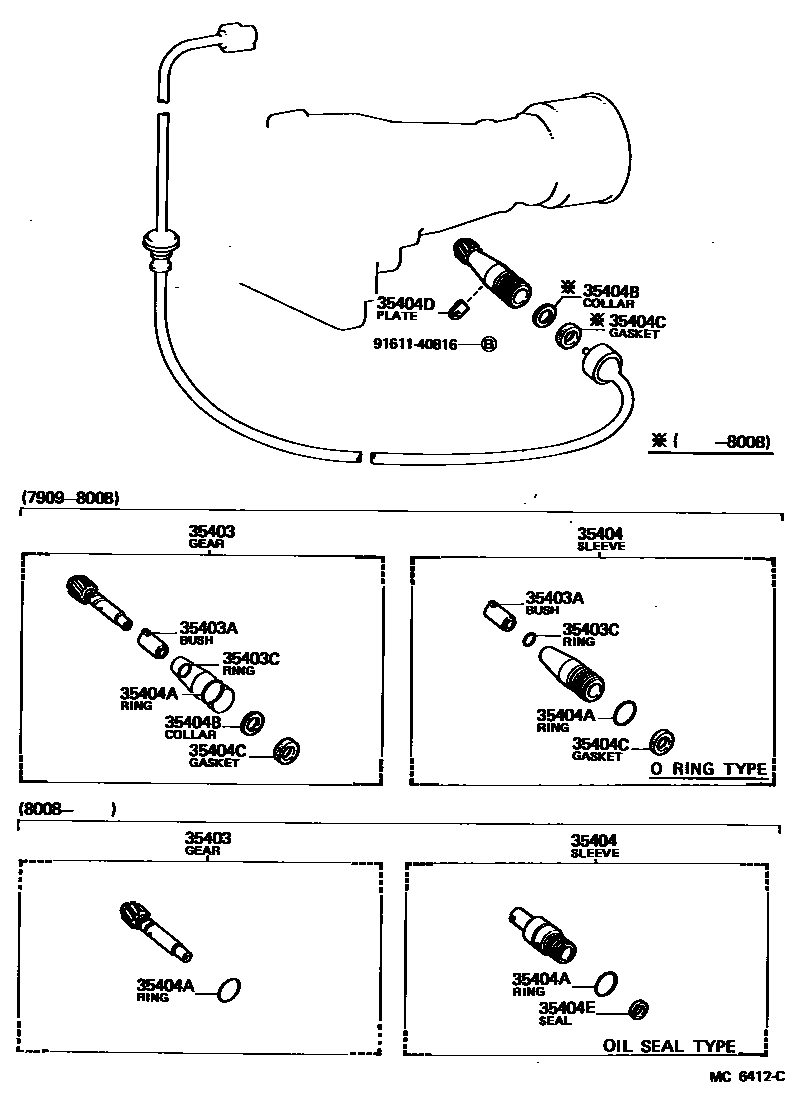

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-61021iMS112..ATM..(ARL,GEN)198008-198108

N=19

sub33403-69026

main33403-69026iMS111..ATM197909-198307

N=19

main33403-69026iMS112..DLX..EFI198208-198307

N=19,SWITZERLAND SPEC

main33403-69065iMS112..ATM197909-198307

N=18

main33482-39015iLS110..4FC197909-198307

N=21

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iLS110,MS11#..ATM197909-198008

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iLS110,MS11#..ATM197909-198008

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLS110,MS112..ATM..(EUR,GEN)198008-198307

main33404-39016iLS110,MS11#..ATM197909-198008

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLS110,MS11#..ATM197909-198307

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iLS110,MS11#..ATM197909-198008

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iLS110,MS11#..ATM197909-198008

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iLS110,MS11#..ATM197909-198008

main33485-30020iLS110,MS112..ATM..(EUR,GEN)198008-198307

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLS110..4FC198008-198307

9161140816

main91611-40816

10 parts on this diagram · 1 diagram in section
