TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

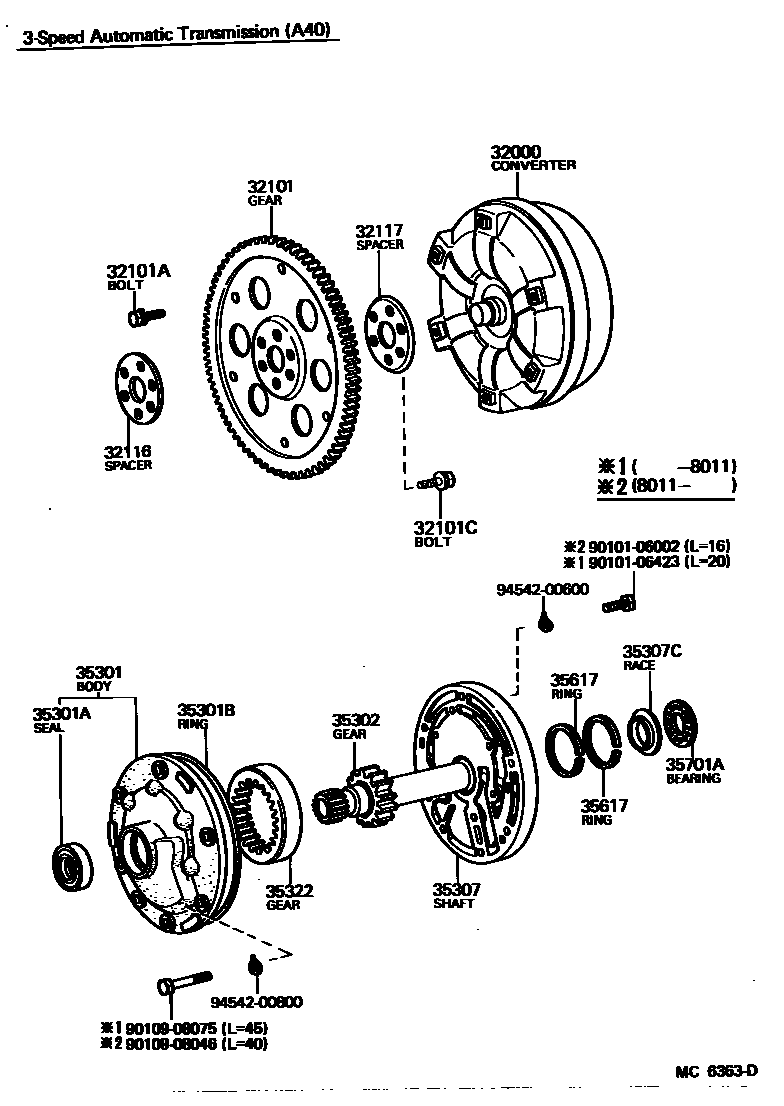

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-14070i198208-198307
sub32000-14071
main32000-14090i198107-198307
sub32000-14091
main32000-22030i197909-198008
main32000-22040i197909-198107
sub32000-30100
main32000-30090i197909-198107
sub32000-14090
main32000-30100i198208-198307
SWITZERLAND SPEC
sub32000-30101
main32000-30100i198107-198307
sub32000-30101
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-30040i197909-198307
sub32101-30060
main32101-30051i197909-198307
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08090i198301-198304
L=10.5
main90109-08107i198304-198307
*8-1.25PX12-8.4,L=12,OLIVE GREEN
main91611-60812i197909-198307
*8-1.25PX12-7,L=12,WHITE
sub91611-B0812
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12014i197909-198307
main90109-10037i197909-198307
*10-1.25PX18-12
32116SPACER, DRIVE PLATE, FRONT
main32116-30011i197909-198307
main32116-30020i197909-198307
32117SPACER, DRIVE PLATE, REAR
main32117-30011i197909-198307
main32117-30020i197909-198307
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-14010i198208-198307
main35301-22012i197909-198008
sub35301-30030
sub90101-06002
sub90101-08046
main35301-30030i198208-198307
SWITZERLAND SPEC
main35301-30030i197909-198307
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38129i197909-198307
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99010i197909-198307
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
main35321-14010i198208-198307
sub35321-22020
sub35321-22030
sub35321-22040
sub35321-22050
sub35321-22060
main35321-22010i197909-198307
sub35321-22090
main35321-22010i198208-198307
SWITZERLAND SPEC
sub35321-22090
35307SHAFT SUB-ASSY, STATOR
main35370-14011i198208-198307
sub35370-14012
main35370-22010i197909-198008
main35370-22030i198108-198307
sub35370-22031
main35370-30010i197909-198108
sub35370-30012
main35370-30020i197909-198108
main35370-30021i198108-198110
main35370-30022i198208-198307
SWITZERLAND SPEC
sub35370-30023
main35370-30022i198110-198307
sub35370-30023
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-22010i197909-198307
T=4.3
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-14010i198208-198307
T=17.286-17.235
sub35322-22020
sub35322-22030
sub35322-22040
sub35322-22050
sub35322-22060
main35322-22010i197909-198307
T=15.286-15.235
sub35322-22090
main35322-22010i198208-198307
T=15.286-15.235,SWITZERLAND SPEC
sub35322-22090
35617RING, CLUTCH DRUM OIL SEAL
main35617-16010i198108-198307
main35617-22010i197909-198008
main35617-22020i197909-198108
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
main90374-23012i197909-198307
main90374-24001i198108-198110
main90374-25003i198110-198307
9010106002
main90101-06002
9010106423
main90101-06423
9010908046
main90109-08046
9010908075
main90109-08075
9454200600
main94542-00600
9454200800
main94542-00800
