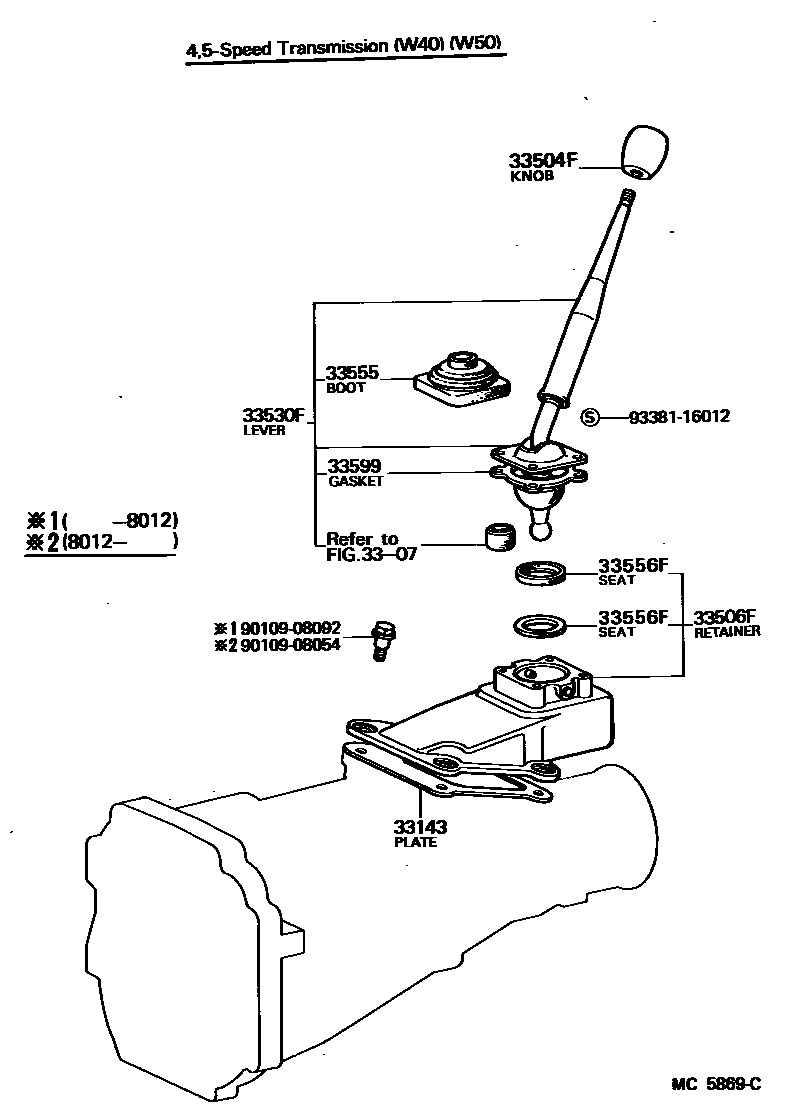

SHIFT LEVER & RETAINER

0001 1 0003 1 0005 1

3307

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iMS112..5F..EFI197909-198012

main33143-20031iLS110,RS110..4F,5F198012-198108

main33143-22020iLS110,MS112,RS110..4F,5F198008-198307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-02iMS112..5F..SAL197909-198108

URETHANE,DARK WINE,RED/MAROON,TRIM3#

sub33504-20052

sub33504-14050

main33504-20052-03iLS110,MS112..5F198108-198307

URETHANE,GRAY,GRAY,TRIM1#

sub33504-20052

sub33504-14050

main33504-20052-04iMS112..5F..SAL197909-198307

URETHANE,BLUE,BLUE,TRIM8#

sub33504-20052

sub33504-14050

main33504-20052-05iLS110,MS112..5F197909-198108

URETHANE,GREIGE,BEIGE,TRIM4#

sub33504-20052

sub33504-14050

main33504-20052-25iLS110,MS112..5F198108-198307

URETHANE,BEIGE,BEIGE,TRIM4#

sub33504-20052

sub33504-14050

main33504-20062-02iMS111,RS110..4F..SAL197909-198108

URETHANE,DARK WINE,RED/MAROON,TRIM3#

sub33504-20062

sub33504-14040

main33504-20062-03iLS110,MS112..4F198108-198307

URETHANE,GRAY,GRAY,TRIM1#

sub33504-20062

sub33504-14040

main33504-20062-04iLS110,MS11#,RS110..4F197909-198307

URETHANE,BLUE,BLUE,TRIM8#

sub33504-20062

sub33504-14040

main33504-20062-15iLS110,MS11#,RS110..4F197909-198108

URETHANE,GREIGE,BEIGE,TRIM4#

sub33504-20062

sub33504-14040

main33504-20062-25iLS110,MS112..4F198108-198307

URETHANE,BEIGE,BEIGE,TRIM4#

sub33504-20062

sub33504-14040

main33504-22100-04iLS110,MS11#,RS110..4F..(BTP,DLX)197909-198009

BLUE,BLUE,TRIM8#

sub33504-22100

sub33504-22101

main33504-22100-15iLS110,MS11#,RS110..4F..(BTP,DLX)197909-198009

GREIGE,BEIGE,TRIM4#

sub33504-22100

sub33504-22101

main33504-22101-03iLS110,RS110..4F..BTP198108-198307

GRAY,GRAY,TRIM1#

sub33504-14040

sub33504-22101

main33504-22101-04iLS110,MS112,RS110..4F..(BTP,DLX)198009-198108

BLUE,BLUE,TRIM8#

sub33504-14040

sub33504-22101

main33504-22101-15iLS110,MS112,RS110..4F..(BTP,DLX)198009-198108

GREIGE,BEIGE,TRIM4#

sub33504-14040

sub33504-22101

main33504-22101-25iLS110,RS110..4F..BTP198108-198307

BEIGE,BEIGE,TRIM4#

sub33504-14040

sub33504-22101

main33504-22110-04iLS110,MS112..5F..(BTP,DLX)197909-198009

BLUE,BLUE,TRIM8#

sub33504-22110

sub33504-22111

main33504-22110-15iLS110,MS112..5F..(BTP,DLX)197909-198009

GREIGE,BEIGE,TRIM4#

sub33504-22110

sub33504-22111

main33504-22111-03iLS110..BTP..EUR198108-198307

GRAY,GRAY,TRIM1#

sub33504-14050

sub33504-22111

main33504-22111-04iLS110,MS112..5F..(BTP,DLX)198009-198108

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-22111-15iLS110,MS112..5F..(BTP,DLX)198009-198108

GREIGE,BEIGE,TRIM4#

sub33504-14050

sub33504-22111

main33504-22111-25iLS110..BTP..EUR198108-198307

BEIGE,BEIGE,TRIM4#

sub33504-14050

sub33504-22111

main33542-30110-02iMS11#..(3FC,4FC)..(ROY,SAL)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub33542-30110

sub33542-24030

main33542-30110-03iLS110,MS112..4FC198108-198307

GRAY,GRAY,TRIM1#

sub33542-30110

sub33542-24030

main33542-30110-04iMS112..4FC..(ROY,SAL)197909-198307

BLUE,BLUE,TRIM8#

sub33542-30110

sub33542-24030

main33542-30110-05iLS110,MS11#..3FC,4FC197909-198108

GREIGE,BEIGE,TRIM4#

sub33542-30110

sub33542-24030

main33542-30110-15iLS110,MS112..4FC198108-198307

BEIGE,BEIGE,TRIM4#

sub33542-30110

sub33542-24030

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-21010iMS112..5F..EFI197909-198012

sub33570-21011

sub33143-20031

sub90109-08054

main33570-21011iMS112..5F..EFI198012-198108

main33570-22070iMS112..MTM..CBR198008-198307

sub33570-30010

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-30140iLS110,MS112..RHD..4FC197909-198307

main33503-30150iLS110,MS11#..LHD..(3FC,4FC)197909-198307

main33530-30162iLS110,MS111,RS110..RHD..4F197909-198108

sub33530-30153

main33530-30172iLS110,MS111,RS110..LHD..4F197909-198108

main33530-30200iLS110,MS112..5F..EUR197909-198108

main33530-30210iLS110,MS112..RHD..4F198008-198307

sub33530-30250

main33530-30220iLS110,MS112,RS110..LHD..(4F,5F)198008-198307

sub33530-30260

33555BOOT, SHIFT LEVER

main33555-22050iLS110,MS112,RS110..4F,5F198008-198307

main33555-30130iLS110,MS11#..3FC,4FC197909-198008

main33555-30140iLS110,MS112..4FC198008-198307

main33555-31011iLS110,RS110..4F197909-198108

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20010iLS110,RS110..4F,5F197909-198108

T=3.0

sub33556-35040

main33556-22010iLS110,RS110..4F,5F197909-198108

T=6.5

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iMS112..(4F,5F)..CBR198008-198307

main33584-31020iLS110,RS110..4F197909-198108

9010908054

main90109-08054

9010908092

main90109-08092

9338116012

main93381-16012

11 parts on this diagram · 3 diagrams in section
