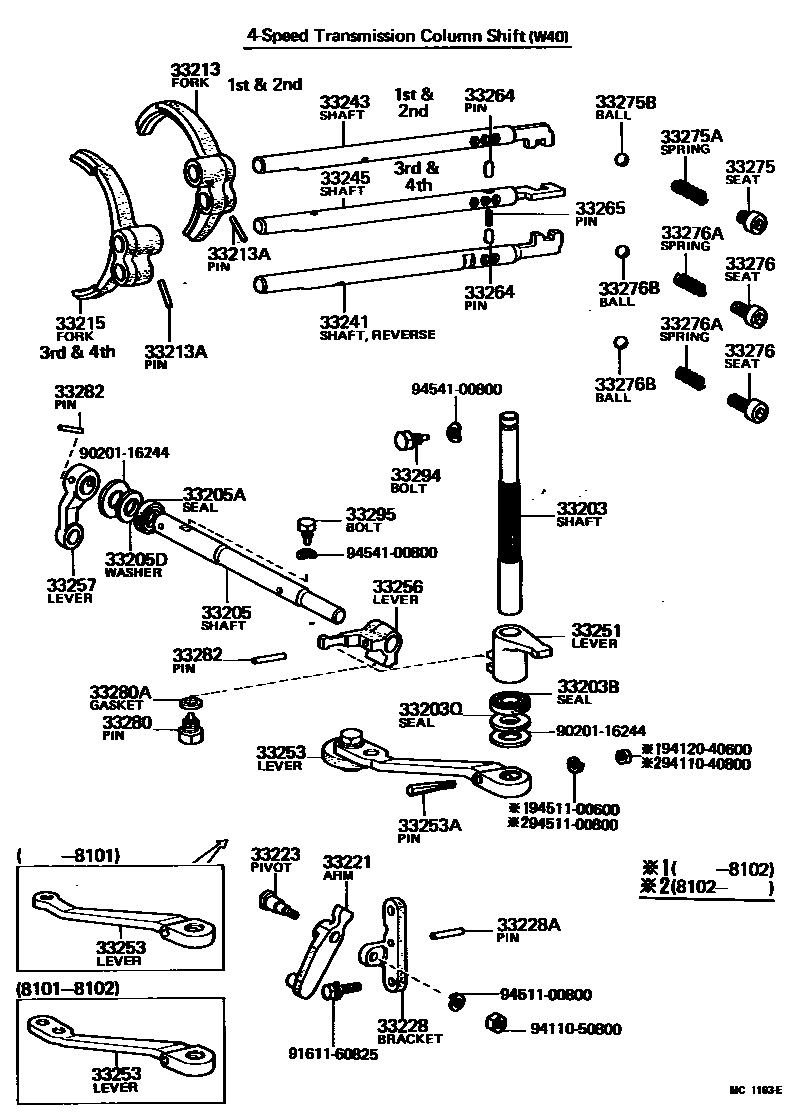

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33203QSEAL, SHIFT LEVER SHAFT DUST
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33223PIVOT, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33228APIN, REVERSE SHIFT ARM BRACKET
33243SHAFT, 1ST & 2ND SHIFT FORK
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33256LEVER, SELECT INNER
33257LEVER, SELECT OUTER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4,L=11.2
L=12.6
L=13.6,OD=6,L=13.6
L=8.6,OD=6,L=8.6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=16.5
33275BBALL, SHAFT DETENT
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
RH
LH
LH
33282PIN, LEVER LOCK, NO.2
33294BOLT, SHAFT RETAINING
33295BOLT, SHAFT RETAINING, NO.2
9020116244
main90201-16244
9161160825
main91611-60825
9411040800
main94110-40800
9411050800
main94110-50800
9412040600
main94120-40600
9451100600
main94511-00600
9451100800
main94511-00800
9454100800
main94541-00800
42 parts on this diagram · 6 diagrams in section
