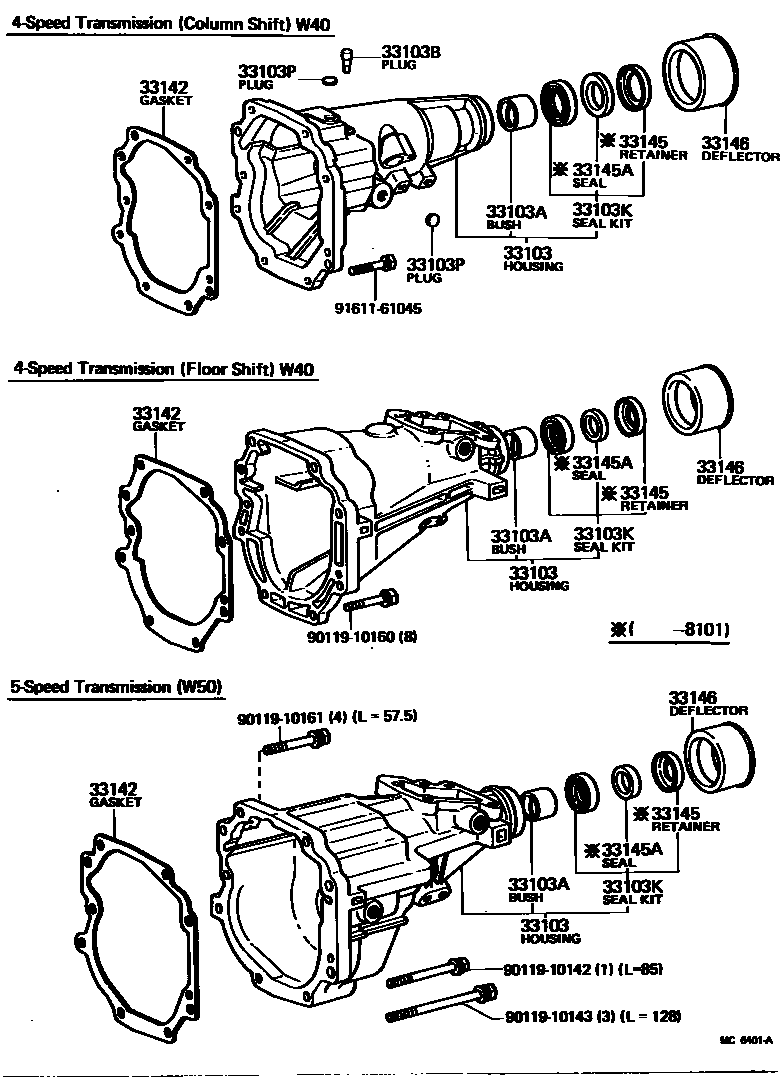

EXTENSION HOUSING (MTM)

0001 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iLS110,MS111,RS110..4F197909-198108

main33103-20100iLS110,MS112..5F197909-198108

main33103-22090iMS112..5F..CBR198008-198307

sub33103-22091

main33103-22100iMS112..4F198008-198307

sub33103-22101

main33103-30181iLS110,MS112,RS110..4H198108-198307

sub33103-30182

main33103-31021iLS110,MS111,RS110..RHD..4H197909-198108

main33103-31031iLS110,MS111,RS110..LHD..4H197909-198108

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iMS112..MTM..CBR197909-198307

sub90999-73139

main90999-73062iLS110,MS112..5F..EUR197909-198108

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03038iLS110,MS111,RS110..4H197909-198108

main90930-03080iLS110,MS112,RS110..4H198108-198307

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iLS110,MS11#,RS110..MTM197909-198101

sub04332-30020

main90311-38043iLS110,RS110..MTM198101-198108

sub90311-38040

33103PPLUG, EXPANSION(FOR EXTENSION HOUSING)

main90330-15040iLS110,MS111,RS110..4H197909-198108

33142GASKET, EXTENSION HOUSING(MTM)

main33142-20020iLS110,MS112..5F197909-198108

main33142-22010iMS112..MTM..CBR198008-198307

main33142-31010iLS110,MS111,RS110..4F,4H197909-198108

sub33142-20020

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iMS112..5F..EFI197909-198101

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iLS110,MS11#,RS110..MTM197909-198101

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLS110,MS11#,RS110..MTM197909-198307

sub33146-30020

9011910142

main90119-10142

9011910143

main90119-10143

9011910160

main90119-10160

9011910161

main90119-10161

9161161045

main91611-61045

14 parts on this diagram · 2 diagrams in section
