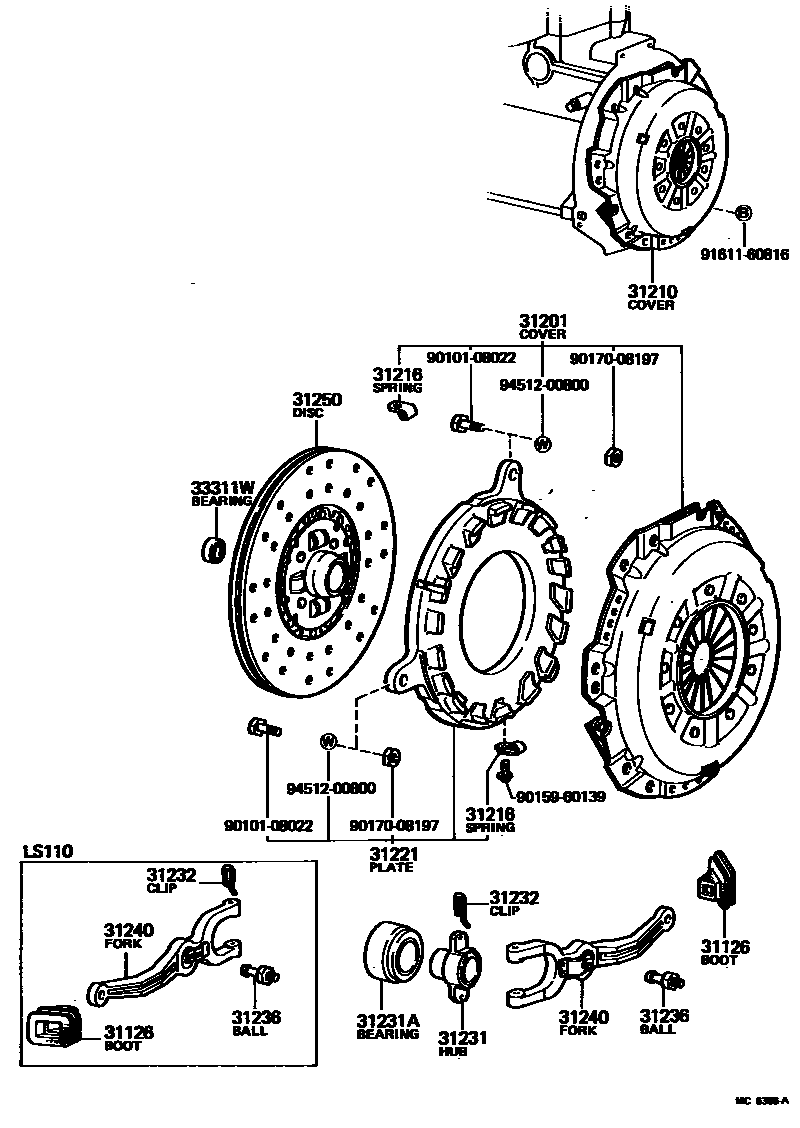

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iMS111..4H197909-198108

main31126-20060iRS110198108-198307

main31126-20070iMS112..GEN198008-198307

main31126-22040iMS11#..4F,5F197909-198108

31201COVER SUB-ASSY, CLUTCH

main31201-29115iMS112..MTM198106-198307

sub31201-24010

main31201-39046iMS111,RS110..MTM197909-198003

sub31201-39047

main31201-39047iMS111..MTM198003-198307

main31201-39067iLS110..MTM197909-197912

sub31201-39068

main31201-39068iLS110..MTM197912-198108

sub31201-39135

main31201-39106iMS112..5F197909-198003

sub31201-39107

main31201-39107iMS112..MTM198003-198106

sub31201-29115

main31201-39135iLS110..MTM198108-198307

31210COVER ASSY, CLUTCH

main31210-24010iMS112..MTM198106-198307

sub31210-24011

main31210-30104iRS110198003-198008

main31210-30110iRS110197909-198003

sub31210-30111

main31210-30112iRS110198008-198307

sub31210-30142

main31210-30152iLS110..MTM197909-198108

sub31210-30153

main31210-30153iLS110..MTM198108-198307

sub31210-30154

main31210-30171iMS111..MTM197909-198003

sub31210-30172

main31210-30172iMS111..MTM198003-198008

sub31210-20270

main31210-30181iMS112..5F197909-198003

sub31210-30182

main31210-30182iMS112..MTM198003-198106

sub31210-24010

31216SPRING, CLUTCH RETRACTING

main31216-30010iLS110,MS11#,RS110..MTM197909-198307

31221PLATE, CLUTCH PRESSURE

main31221-39026iRS110197909-198307

main31221-39105iLS110..MTM197909-198307

sub31221-30090

main31221-39115iMS11#..MTM197909-198307

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLS110..MTM198108-198307

main31231-22021iMS11#..4F,5F197909-198007

sub31231-22022

main31231-22022iMS112..EUR198007-198011

sub31231-22023

main31231-22023iMS112..EUR198011-198108

sub31231-26010

main31231-22040iMS112..MTM198008-198109

sub31231-36070

main31231-30061iRS110197909-198103

main31231-30071iMS111..4H197909-198008

main31231-30080iRS110197909-198307

main31231-36070iMS112..MTM198109-198307

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iLS110,MS11#,RS110..MTM197909-198002

sub90363-40008

main90363-40008iLS110,MS11#,RS110..MTM198002-198010

main90363-40015iLS110,MS112,RS110..MTM198010-198012

sub90363-40022

main90363-40022iLS110,MS112,RS110..MTM198012-198307

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iMS11#..4F,5F197909-198307

main31232-30010iMS111..4H197909-198008

main31232-30020iLS110,RS110..MTM197909-198108

31236BALL, RELEASE FORK

main31236-20020iMS11#..MTM197909-198107

sub31236-30060

main31236-30030iRS110197909-198108

main31236-30050iLS110..MTM197909-198108

main31236-30060iMS112..MTM198107-198307

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRS110198108-198307

sub31204-20072

main31204-20080iMS112..MTM198008-198307

main31204-20090iLS110..MTM198108-198307

main31204-22030iMS11#..4F,5F197909-198108

main31204-30031iMS111..4H197909-198008

main31204-30041iRS110197909-198102

main31204-30042iRS110198102-198108

main31204-30062iLS110..MTM197909-198108

31250DISC ASSY, CLUTCH

main31250-30140iRS110197909-198307

sub31250-22044

main31250-30200iMS111..MTM197909-198008

sub31250-30330

main31250-30210iMS112..MTM197909-198105

sub31250-30211

main31250-30211iMS112..MTM198105-198208

sub31250-30212

main31250-30212iMS112..MTM198208-198307

sub31250-24012

main31250-30231iLS110..MTM197909-198003

sub31250-30232

main31250-30232iLS110..MTM198003-198008

sub31250-30233

main31250-30233iLS110..MTM198008-198105

sub31250-30234

main31250-30234iLS110..MTM198105-198111

sub31250-30235

main31250-30235iLS110..MTM198111-198307

sub31250-30270

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRS110198006-198307

sub90363-12024

main97143-06201iLS110,MS11#,RS110..MTM197909-198011

6201 VV C3

sub90363-12002

9010108022

main90101-08022

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
