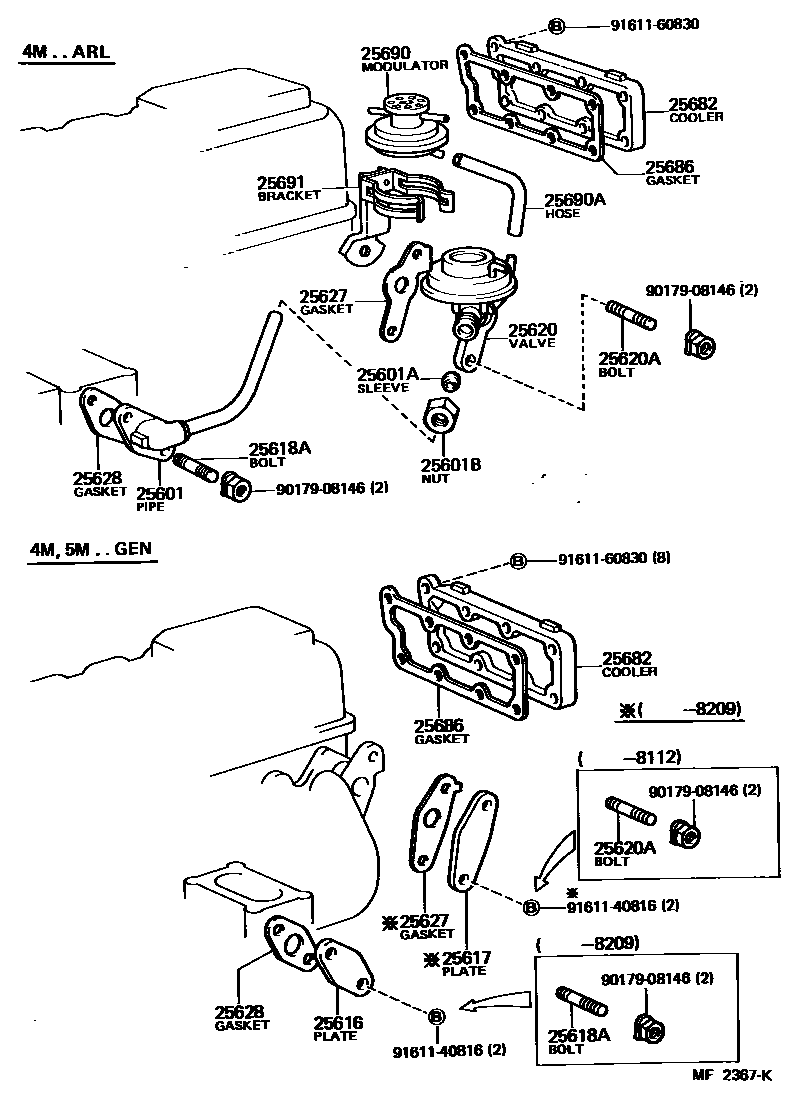

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
SWITZERLAND SPEC
25601BNUT, UNION, EGR PIPE, NO.1
SWITZERLAND SPEC
25616PLATE, HOLE COVER(FOR EGR PIPE)
25617PLATE, EGR HOLE COVER
25618ABOLT, STUD(FOR EGR INLET)
25620VALVE ASSY, EGR
SWITZERLAND SPEC
25620ABOLT, STUD(FOR EGR VALVE)
SWITZERLAND SPEC
25682COOLER, EGR, NO.2
25686GASKET, EGR COOLER, NO.2
sub25686-43010
25690MODULATOR ASSY, EGR VACUUM
SWITZERLAND SPEC
25690AHOSE(FOR EGR VACUUM MODULATOR)
sub90445-11051
25691BRACKET, EGR VACUUM MODULATOR
SWITZERLAND SPEC
9017908146
main90179-08146
9161140816
main91611-40816
9161160830
main91611-60830
18 parts on this diagram · 2 diagrams in section
