FUEL PUMP & PIPE

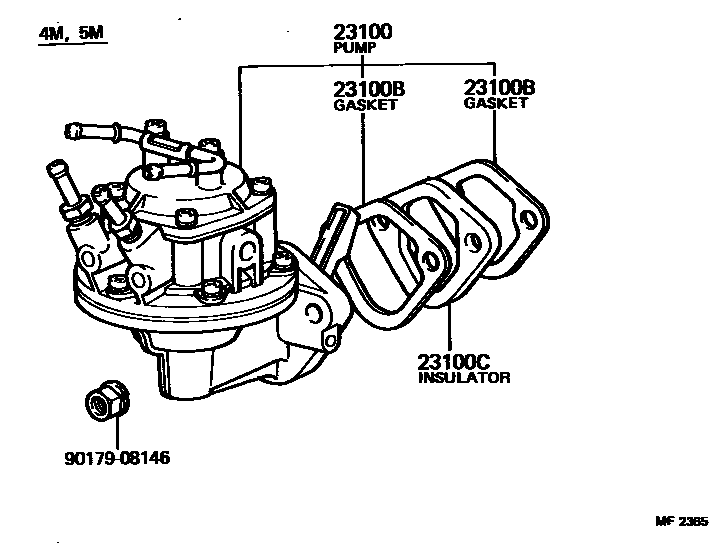

Parts diagram
23100PUMP ASSY, FUEL
main23100-49225i197909-198108
sub23100-49226
main23100-49226i198108-198307
sub23100-49227
main23100-49235i197909-198108
sub23100-49236
main23100-49236i198108-198307
sub23100-49237
23100BGASKET, FUEL PUMP
main90923-05004i197909-198307
sub90923-05020
main90923-05005i197909-198307
sub90923-05019
23100CINSULATOR, FUEL PUMP
main90923-06001i197909-198307
sub90923-06009
main90923-06002i197909-198307
sub90923-06011
9017908146
main90179-08146

4 parts on this diagram · 2 diagrams in section
