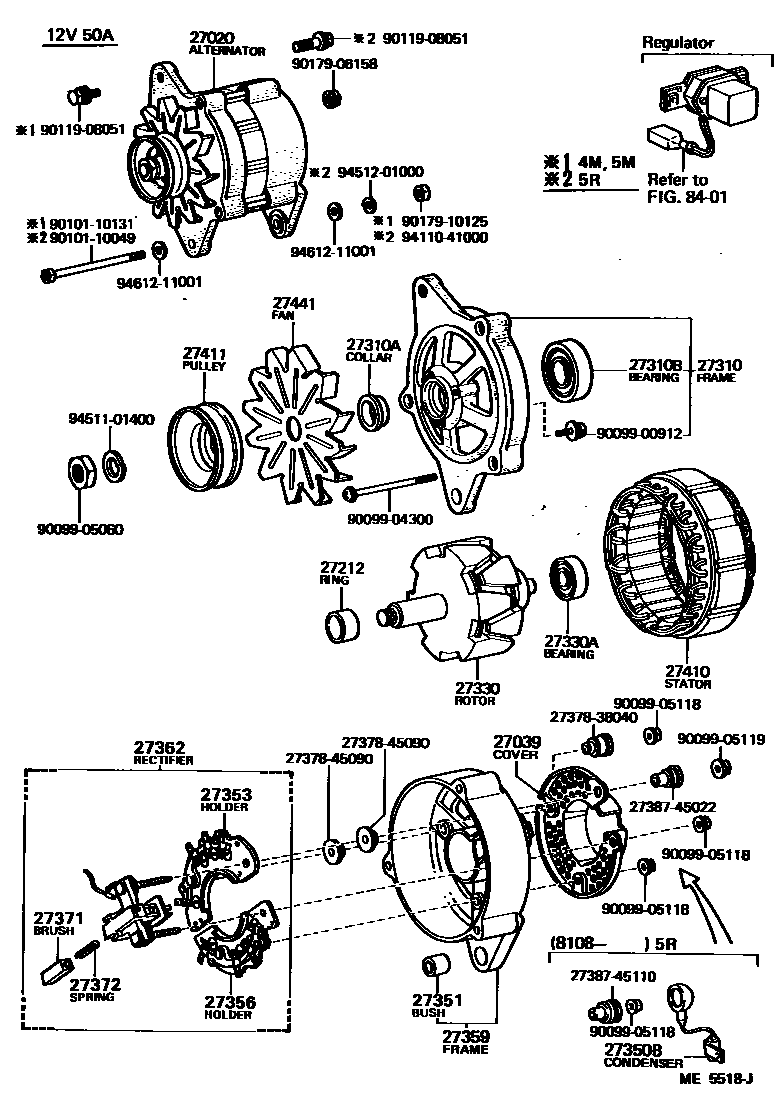

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1

27020ALTERNATOR ASSY

main27020-44071i5R..RS110197909-198307

12V 50A

sub27020-44081

main27020-45082i4M,5M..MS11#..BTP,DLX,SAL197909-198307

12V 50A

sub27020-45072

main27020-45140i5ME..MS112197909-198108

12V 60A

main27020-54012iL..LS110197909-198307

12V 55A,12V 55A,STANDARD REGULATOR

main27020-54060iL..LS110..EUR197909-198108

12V 55A,IC REGULAT.(COLD SPEC)

main27020-54080iL..LS110..EUR198108-198307

12V 55A,IC REGULAT.(COLD SPEC)

main27060-43020i5M#..MS112..ROY198108-198307

12V 60A,12V 60A

sub27060-43030

27039COVER, ALTERNATOR REAR END

main27039-44070i5R..RS110197909-198307

12V 50A

main27039-45110i5M..MS112..DLX,SAL198108-198307

12V 50A

sub27039-34022

main27039-56090iL..LS110198108-198307

12V 55A,STANDARD REGULATOR

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i4M,5M#,5R..MS11#,RS110197909-198307

12V 50A,60A

main27412-54040iL..LS110197909-198307

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i5R..RS110197909-198307

12V 50A

main27310-45070i4M,5M..MS11#..BTP,DLX,SAL197909-198307

12V 50A

main27310-45110i5M#..MS112..ROY198207-198307

12V 60A

main27310-54011iL..LS110197909-198010

12V 55A

main27310-54012iL..LS110198010-198108

12V 55A

main27310-54080iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

main27310-61070i5M#..MS112..ROY198108-198207

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i4M,5M#,5R..MS11#,RS110197909-198307

12V 50A,60A

main90099-19251iL..LS110197909-198307

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10115i4M,5R..MS111,RS110197909-198008

12V 50A,60A

main90099-10120iL..LS110197909-198307

12V 55A

main90099-10125i5M#..MS112198008-198307

12V 50A,60A

main90099-10126i5R..RS110198008-198307

12V 50A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i5M#..MS112..ROY198108-198307

12V 60A

main27330-45070i4M,5M,5R..MS11#,RS110..BTP,DLX,SAL197909-198307

12V 50A

sub27330-16030

main27330-45090i4M,5M#..MS11#..ROY197909-198108

12V 60A

sub27330-43040

main27330-54011iL..LS110197909-198307

12V 55A,STANDARD REGULATOR

main27330-54060iL..LS110..EUR197909-198307

12V 55A,IC REGULATOR

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i5R..RS110197909-198307

12V 50A

main90099-10116×3i4M,5M#..MS11#197909-198307

12V 50A,60A

27350FRAME ASSY, RECTIFIER END

main27350-54010iL..LS110198108-198307

12V 55A,STANDARD REGULATOR

main27350-57061iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

27350BCONDENSER, ALTERNATOR

main90099-52065i5R..RS110198108-198307

12V 50A

sub90099-52034

main90099-52066iL..LS110..EUR197909-198107

12V 55A,IC REGULATOR

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4M,5M#,5R..MS11#,RS110197909-198307

12V 50A,60A

main27351-56013iL..LS110197909-198307

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34051i4M,5M,5R..MS11#,RS110..BTP,DLX,SAL197909-198307

12V 50A

sub27353-34121

main27353-54010iL..LS110197909-198307

12V 55A,STANDARD REGULATOR

main27353-54060iL..LS110..EUR197909-198108

12V 55A,IC REGULATOR

main27353-57070iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

sub27353-54180

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34051i4M,5M,5R..MS11#,RS110..BTP,DLX,SAL197909-198307

12V 50A

sub27356-34021

main27356-54010iL..LS110197909-198307

12V 55A,STANDARD REGULATOR

main27356-54060iL..LS110..EUR197909-198108

12V 55A,IC REGULATOR

main27356-57070iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

sub27356-54170

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i4M,5M,5R..MS11#,RS110..BTP,DLX,SAL197909-198307

12V 50A

main27359-43020i5M#..MS112..ROY198108-198307

12V 60A

main27359-45140i4M,5M#..MS11#..ROY197909-198108

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i5M..MS112..BTP,DLX,SAL198008-198307

12V 50A

sub27362-63011

main27362-34050i5R..RS110197909-198008

12V 50A

main27362-43040i5ME..MS112198108-198307

12V 60A

main27362-44072i5R..RS110198008-198307

12V 50A

main27362-45120i4M,5ME..MS11#..ROY197909-198008

12V 60A

main27362-70020i5M#..MS112..ROY198008-198011

12V 60A

main27362-70021i5M#..MS112..ROY198011-198108

12V 60A

27371BRUSH, ALTERNATOR

main27371-31011×2i5M#..MS112198008-198307

12V 50A,60A

main27371-44070×2i4M,5ME,5R..MS11#,RS110197909-198008

12V 50A,60A

main27371-44071×2i5R..RS110198008-198307

12V 50A

main27371-56070×2iL..LS110197909-198307

12V 55A

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i5M#..MS112198008-198307

12V 50A,60A

main27372-56070×2iL..LS110197909-198307

12V 55A

main90099-17114×2i4M,5ME,5R..MS11#,RS110197909-198008

12V 50A,60A

27410STATOR ASSY, ALTERNATOR

main27410-41080i5R..RS110197909-198307

12V 50A

main27410-45120i4M,5M#..MS11#..ROY197909-198307

12V 60A

sub27410-43040

main27410-54010iL..LS110197909-198108

12V 55A,STANDARD REGULATOR

main27410-54060iL..LS110..EUR197909-198108

12V 55A,IC REGULATOR

main27410-57070iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

main27410-64010iL..LS110198108-198307

12V 55A,STANDARD REGULATOR

27411PULLEY, ALTERNATOR

main27411-41071i4M,5M#..MS11#197909-198307

12V 50A,60A

main27411-45010i5R..RS110197909-198307

12V 50A

main27411-54020iL..LS110197909-198307

12V 55A

27441FAN, ALTERNATOR

main27441-34030i4M,5M,5R..MS11#,RS110..BTP,DLX,SAL197909-198307

12V 50A

main27441-45110i4M,5M#..MS11#..ROY197909-198307

12V 60A

main27441-54040iL..LS110197909-198108

12V 55A

main27441-54070iL..LS110..EUR198108-198307

12V 55A,IC REGULATOR

8401

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110131

main90101-10131

9011908051

main90119-08051

9017906158

main90179-06158

9017910125

main90179-10125

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

39 parts on this diagram · 5 diagrams in section
