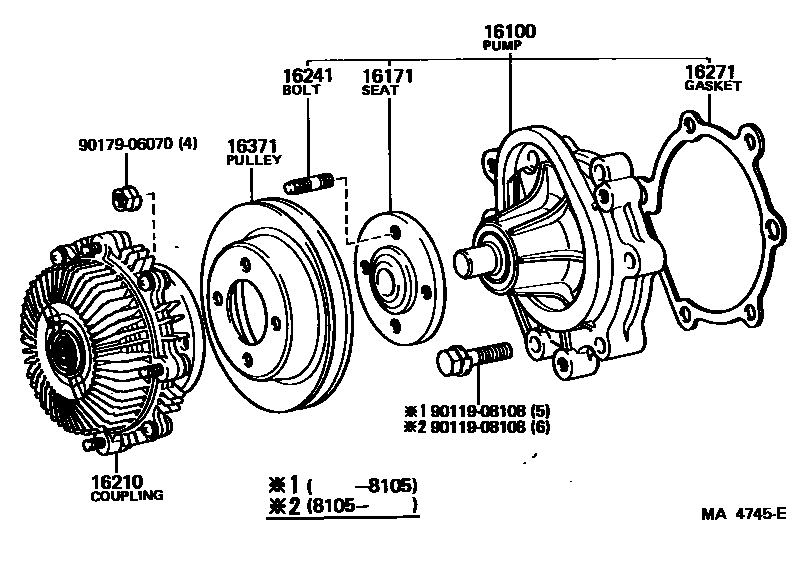

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-49415i5R..RS110197909-198307

sub16100-49416

main16100-49585i4M..MS111..ARL197909-198201

sub16100-49595

main16100-49595i5ME..MS112..EUR,GEN198008-198307

sub16100-49665

main16100-49615i4M,5M..MS11#..GEN197909-198307

sub16100-49665

main16100-59047iL..LS110197909-198008

sub16100-59049

main16100-59049iL..LS110198008-198105

sub16100-59125

main16100-59125iL..LS110198105-198108

sub16100-59215

main16100-59126iL..LS110198108-198210

sub16100-59127

main16100-59127iL..LS110198210-198307

sub16100-59128

16171SEAT, WATER PUMP PULLEY

main16171-24031i5R..RS110197909-198307

main16171-54010iL..LS110197909-198108

main16171-54011iL..LS110198108-198307

16210COUPLING ASSY, FLUID

main16210-41160i5ME..MS112..EUR,GEN197909-198201

sub16210-45100

main16210-45100i5ME..MS112..ARL198008-198307

main16210-45110i4M,5M..MS11#..GEN197909-198307

main16210-54030iL..LS110197909-198307

main16210-54050iL..LS110198108-198307

sub16210-54060

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020iL..LS110198208-198307

main16193-54010iL..LS110197909-198208

main16198-41170i4M,5M#..MS11#197909-198307

16271GASKET, WATER PUMP

main16271-41011i4M,5M#..MS11#197909-198307

sub16271-43010

main16271-44010i5R..RS110197909-198101

sub16271-44020

main16271-44020i5R..RS110198101-198307

sub16271-44021

main16271-54010iL..LS110197909-198008

sub16271-54011

main16271-54011iL..LS110198008-198105

sub16271-54012

main16271-54012iL..LS110198105-198307

sub16271-54013

16371PULLEY, FAN

main16173-45100i4M,5ME..MS11#197909-198008

sub16173-45101

main16173-45101i5M#..MS112198008-198307

main16371-44010i5R..RS110197909-198307

main16371-54010iL..LS110197909-198307

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 3 diagrams in section
