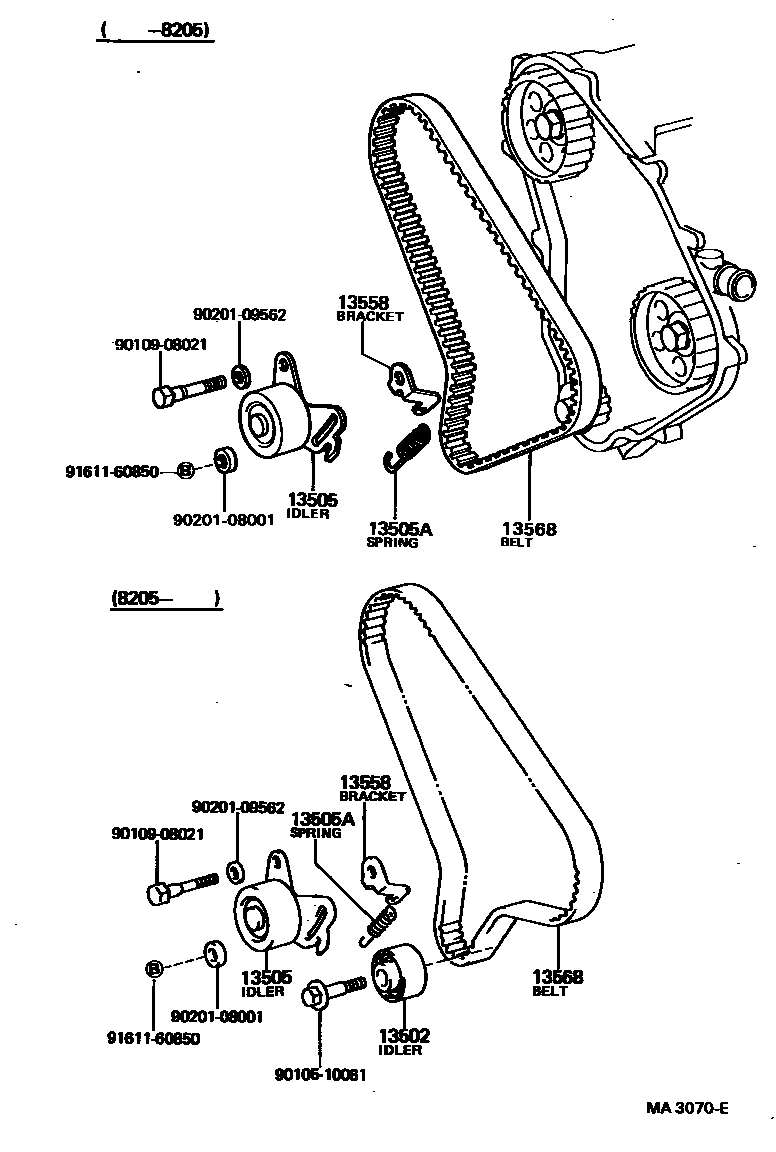

TIMING BELT

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010iL..LS110198205-198307

sub13503-54020

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010iL..LS110197909-198307

13505ASPRING, TENSION(FOR IDLER)

main90506-12001iL..LS110197909-198101

sub90506-14038

main90506-14038iL..LS110198101-198307

13558BRACKET, SPRING(FOR IDLER)

main13558-54010iL..LS110197909-198307

13568BELT, TIMING

main13568-59015iL..LS110197909-198205

sub13568-59016

main13568-59025iL..LS110198205-198307

sub13568-59026

9010510061

main90105-10061

9010908021

main90109-08021

9020108001

main90201-08001

9020109562

main90201-09562

9161160850

main91611-60850

10 parts on this diagram · 1 diagram in section
