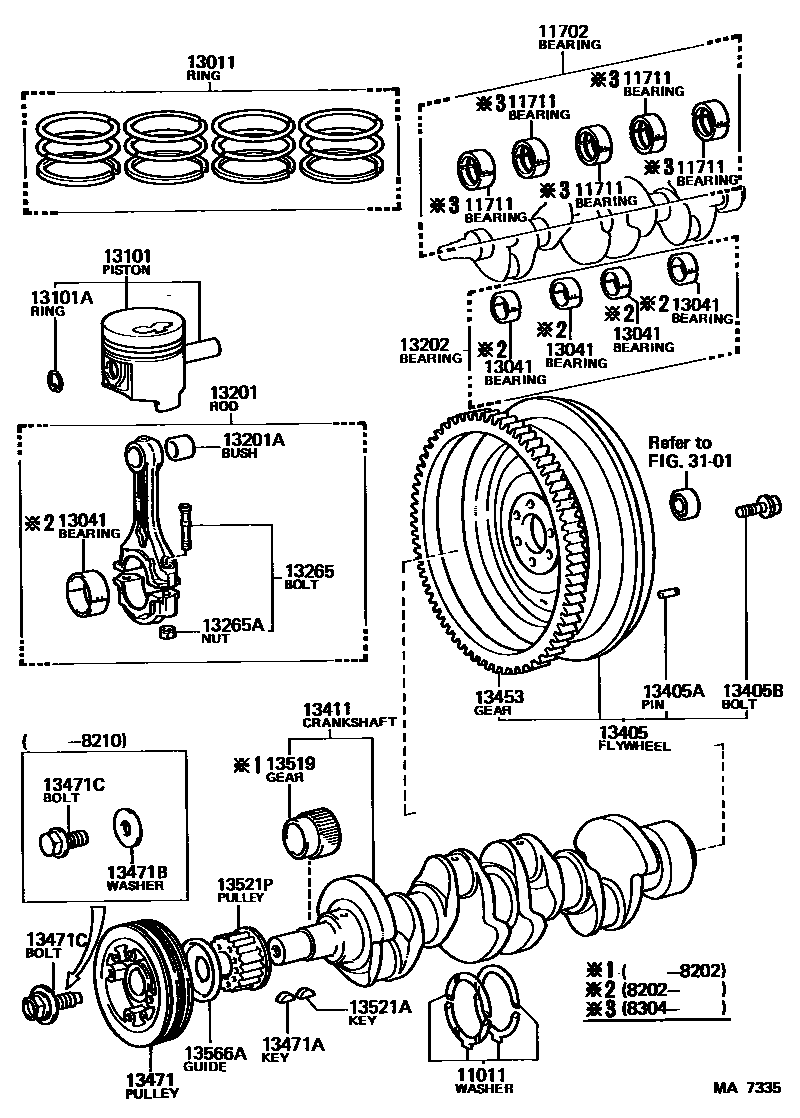

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
O/S 0.125,O/S 0.125
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
STD,STD
STD
U/S 0.05
U/S 0.05,U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
STD
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD
STD,STD
STD
STD
STD
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75,O/S 0.75
O/S 1.00
O/S 1.00,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
STD,STD
STD
U/S 0.05
U/S 0.05,U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
N=115
N=115
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
*12-1.25PX29-19
13453GEAR, FLYWHEEL RING
N=115
N=101
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
sub90201-14030
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*14-1.5PX26-21
*16-1.5PX26-21
*14-1.5PX40-31
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=20
13521PPULLEY, CRANKSHAFT TIMING
N=21
13566AGUIDE, TIMING BELT
sub13566-54040
3101
27 parts on this diagram · 3 diagrams in section
