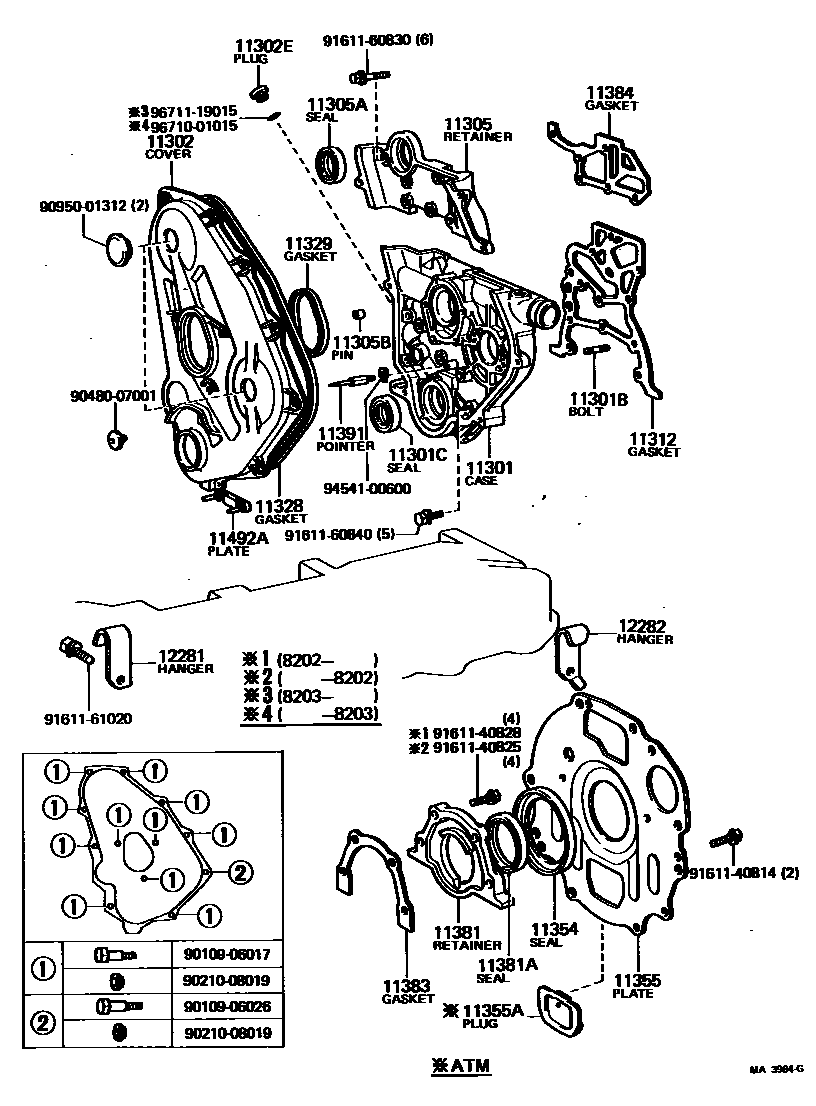

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54010iL..LS110197909-198008

main11311-54020iL..LS110198008-198105

sub11320-54030

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54021iL..LS110198105-198202

sub11320-54022

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54022iL..LS110198202-198307

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2iL..LS110197909-198307

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42001iL..LS110197909-198202

main90311-42003iL..LS110198202-198307

sub90311-42026

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-41020i4M,5M#..MS11#197909-198307

sub11321-41030

main11321-44030i5R..RS110197909-198307

main11321-54012iL..LS110197909-198104

main11321-54013iL..LS110198104-198203

main11321-54014iL..LS110198203-198307

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004iL..LS110197909-198307

11305RETAINER, OIL SEAL, NO.2

main11382-54010iL..LS110197909-198307

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42001iL..LS110197909-198202

HTC 42 60 9

main90311-42003iL..LS110198202-198307

sub90311-42026

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2iL..LS110197909-198307

11312GASKET, FRONT END PLATE

main11312-44011i5R..RS110197909-198307

main11312-54010iL..LS110197909-198008

main11312-54011iL..LS110198008-198105

sub11312-54030

main11312-54012iL..LS110198105-198201

main11312-54013iL..LS110198201-198307

sub11312-54030

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-41010i4M,5M#..MS11#197909-198307

sub11328-43020

main11328-44010i5R..RS110197909-198307

main11328-54010iL..LS110197909-198307

11329GASKET, TIMING GEAR REAR COVER

main11329-54011iL..LS110197909-198307

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL..LS110197909-198307

11355PLATE, REAR END

main11355-41010i4M,5M#..MS11#197909-198307

main11355-44011i5R..RS110197909-198307

main11355-54030iL..LS110..MTM197909-198307

main11355-54040iL..LS110..4FC197909-198307

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263iL..LS110..4FC197909-198307

11381RETAINER, ENGINE REAR OIL SEAL

main11381-41011i4M,5M#..MS11#197909-198307

sub11381-43010

main11381-44011i5R..RS110197909-198307

main11381-54010iL..LS110197909-198307

11381ASEAL, ENGINE REAR OIL

main90311-80001i4M,5M#..MS11#197909-198307

HTC 80 100 12

main90311-80002i5R..RS110197909-198307

HTCY 80 100 12 13.5

main90311-85001iL..LS110197909-198307

HTC 85 105 13

sub90311-85006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-41010i4M,5M#..MS11#197909-198307

main11383-44010i5R..RS110197909-198307

main11383-54010iL..LS110197909-198307

sub11383-54020

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL..LS110197909-198307

sub11384-54011

11391POINTER, TIMING

main11391-44020i5R..RS110197909-198307

main11391-54010iL..LS110197909-198307

11492APLATE, WATER SEAL

main11492-54010iL..LS110197909-198307

12281HANGER, ENGINE, NO.1

main12281-31020iL..LS110197909-198203

main12281-44011i5R..RS110197909-198307

main12281-45020i4M,5M#..MS11#197909-198307

sub12281-41090

main12281-54010iL..LS110198203-198307

12282HANGER, ENGINE, NO.2

main12281-45030i4M,5M#..MS11#197909-198307

main12282-54010iL..LS110197909-197911

main12282-54030iL..LS110197911-198307

9010906017

main90109-06017

9010906026

main90109-06026

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161140814

main91611-40814

9161140825

main91611-40825

9161140828

main91611-40828

9161160830

main91611-60830

9161160840

main91611-60840

9161161020

main91611-61020

9454100600

main94541-00600

9671001015

main96710-01015

9671119015

main96711-19015

36 parts on this diagram · 3 diagrams in section
