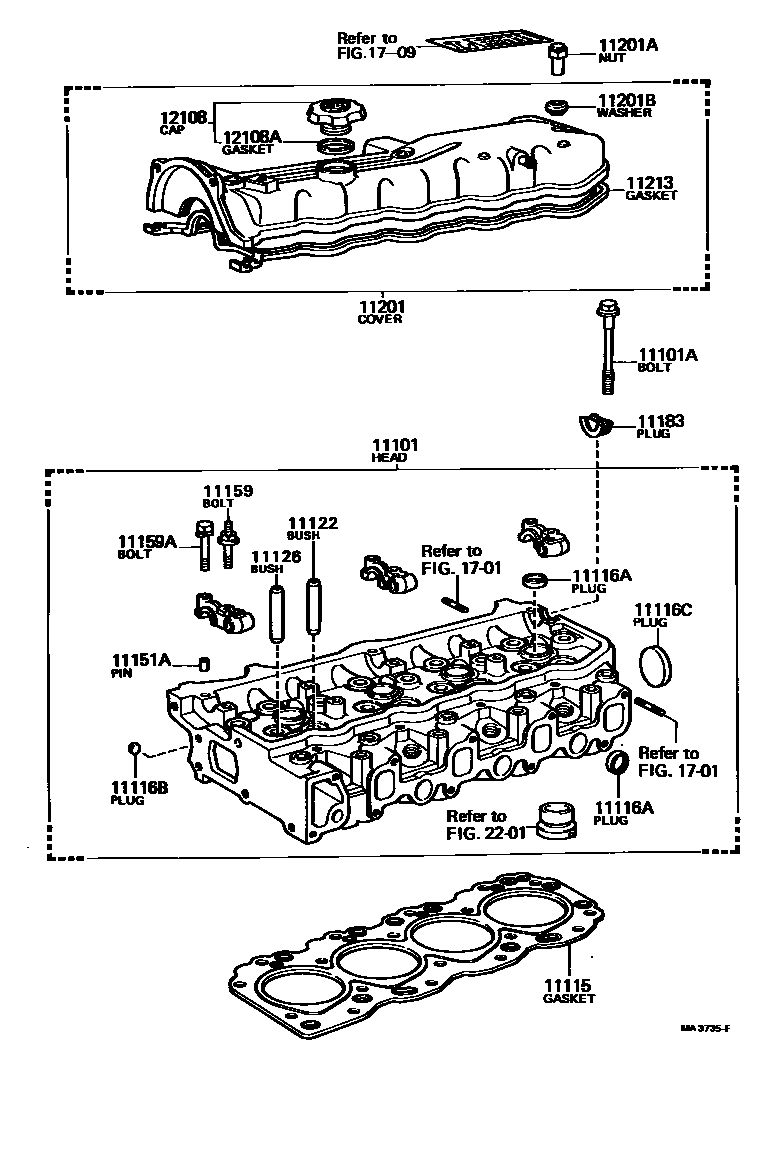

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-44052
sub11101-49266
sub11101-43022
SINGA PORE HONG KONG SPEC
sub11101-59076
sub11101-59078
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX107-24
*12-1.25PX166.5-21
11116APLUG, TIGHT, NO.1
OD=25
11116BPLUG, TIGHT, NO.2
OD=12
11116CPLUG, TIGHT, NO.3
OD=50
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,STD
O/S 0.05,O/S 0.05
STD,STD
O/S 0.05,O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=11,L=11,OD=11
L=8,OD=11,L=8,OD=11
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=76.6,S=13&15
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-49147
sub11201-49156
sub11201-49157
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CTR&RR
FR
12108AGASKET(FOR OIL FILLER CAP)
1701
1709
2201
21 parts on this diagram · 5 diagrams in section
