STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-21020iLS110198205-198307

main09101-21021iMS112,RS110198205-198307

main09101-30060iMS11#,RS110197909-198205

sub09101-21021

main09101-30070iLS110197909-198205

sub09101-21020

09110JACK ASSY

main09110-30050iLS110,MS11#,RS110..SED197909-198307

main09110-31050iLS110,MS11#..WG197909-198307

09113HANDLE, JACK

main09113-30010iLS110,MS11#,RS110197909-198307

09120BAG, TOOL

main09120-20020iLS110,MS11#,RS110197909-198307

09130PLIERS

main99913-11500iLS110,MS112,RS110198205-198307

main99913-21500iLS110,MS11#,RS110197909-198205

sub09029-20150

09135DRIVER, SCREW

main99915-10700iLS110,MS11#,RS110197909-198307

09140SPANNER SET

main09140-00060iLS110,MS11#,RS110197909-198205

sub09140-12011

main09140-12011iLS110,MS112,RS110198205-198307

09141SPANNER

main09141-00120iLS110,MS11#,RS110197909-198205

10X12

sub99914-11012

main09141-00130iLS110,MS11#,RS110197909-198205

14X17

sub99914-11417

main99914-10810iLS110,MS112,RS110198205-198307

8 X 10,8X10

main99914-11012iLS110,MS112,RS110198205-198307

10 X 12,10X12

main99914-11417iLS110,MS112,RS110198205-198307

14 X 17,14X17

09150WRENCH, HUB NUT BOX

main09150-40010iLS110,MS11#,RS110197909-198307

09155WRENCH, SPARK PLUG

main09155-41010iMS11#,RS110197909-198307

09184STOPPER, WHEEL

main09184-00010iLS110,MS11#,RS110197909-198307

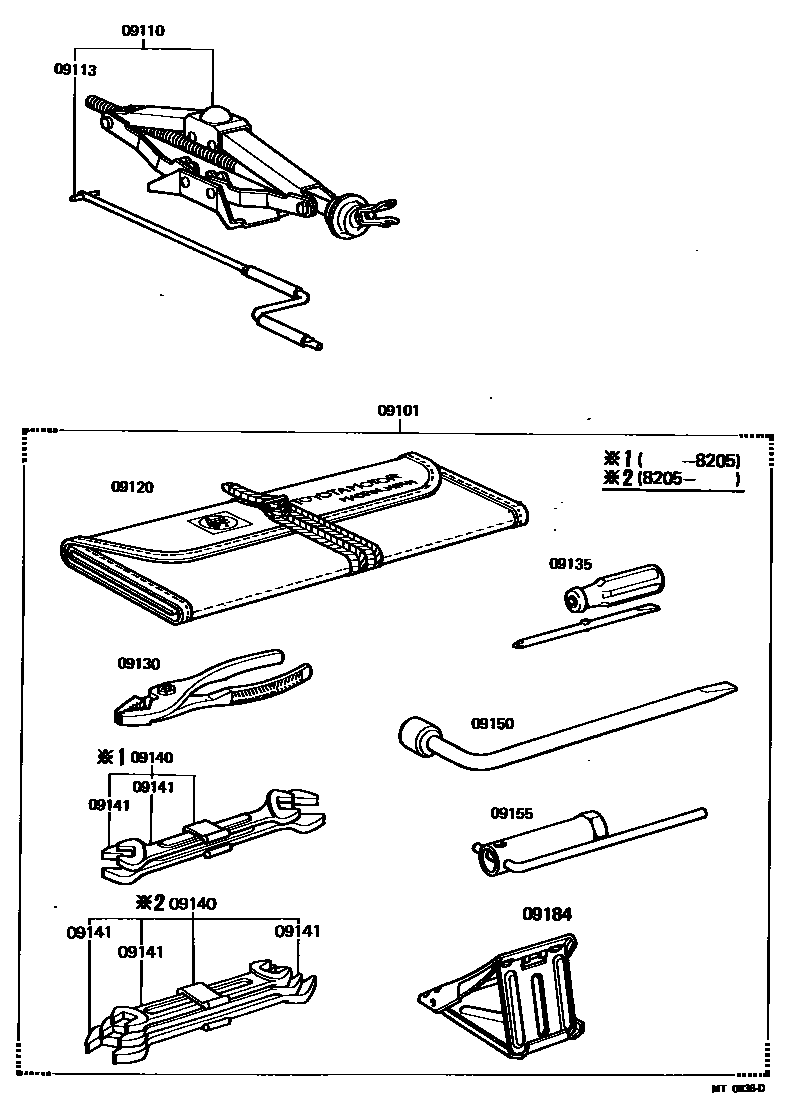

11 parts on this diagram · 1 diagram in section
