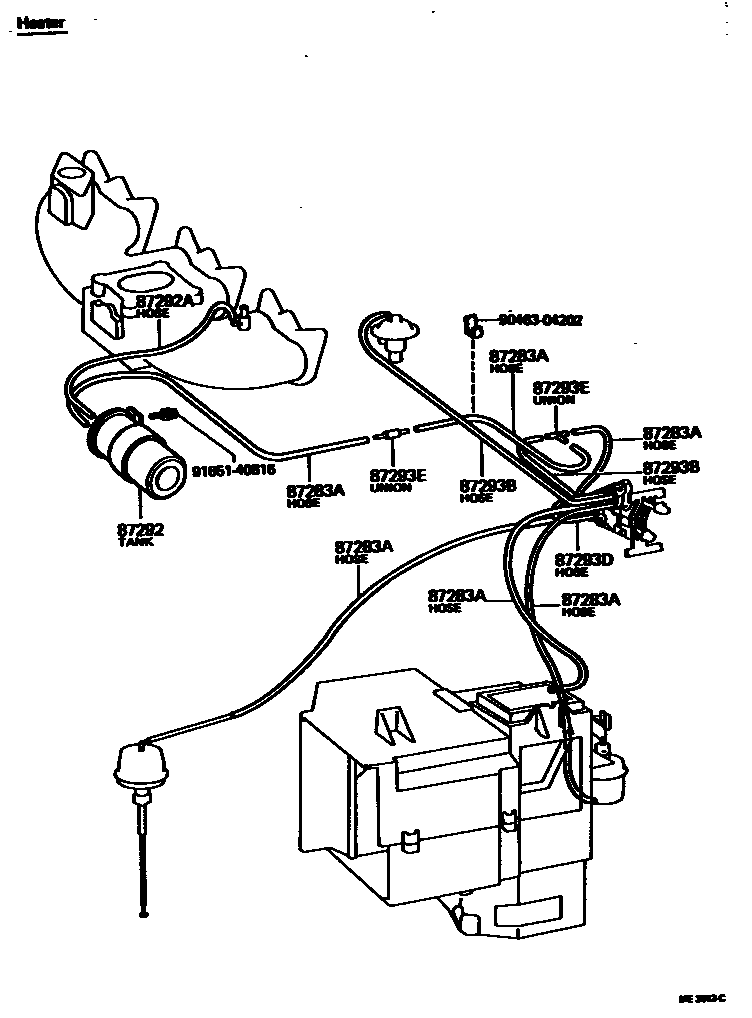

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0004 1 0005 1 0006 1

87283AHOSE, NO.1

main90445-07012iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197608

L=100

sub95411-10230

main90445-07013iMS8#,95,RS80197410-197608

L=600

main90445-07017iMS85..ROY197511-197608

L=550

sub95411-10860

main90445-07018iMS85..ROY197511-197608

L=550

main90445-07029iMS8#,95,RS80197410-197608

L=440

sub95411-10660

main90445-07030iMS8#,95,RS80197410-197608

L=560

sub95411-10560

main90445-07031iMS8#,95,RS80197410-197608

L=850, LHD,ROY=1

sub95411-10285

main90445-07036iMS8#,95,RS80..LHD197410-197608

L=1450

sub90445-08160

main90445-08167iMS8#,95,RS80..LHD197608-197702

L=1500

sub90445-08209

main90445-08171iMS8#,95,RS80197608-197908

L=1100

sub90999-92006

main90445-08173iMS8#,95,RS80..LHD197702-197802

L=1600

sub90999-92007

main90445-08177iMS8#,95,RS80197802-197908

L=1000

sub90445-08212

main90445-08180iMS8#,95,RS80..LHD197802-197908

L=1700

sub90999-92008

main95411-10230iMS85..LHD..3HC..ROY;MS8#,95,RS80..BTP,DLX,SAL,STD197608-197908

H,L=100

sub90999-92002

main95411-10260iMS85..RHD..ROY197608-197908

H,L=540

sub90999-92003

main95411-10295iMS8#,95,RS80197802-197908

H,L=750

sub90999-92004

main95411-10295iMS8#,95,RS80197608-197802

H,L=850,900 ROY=1

sub90999-92004

main95411-10560iMS8#,95,RS80197608-197908

H,L=570

sub90999-92003

main95411-10660iMS8#,95,RS80197608-197908

H,L=450

sub90999-92003

main95411-10860iMS85..RHD..ROY197608-197908

H,L=570

sub90999-92003

87292TANK, VACUUM

main87292-30250iMS85..RHD..ROY197511-197908

main87292-30260iMS85..LHD..3HC..ROY;MS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

87292AHOSE, VACUUM TANK

main90445-07746iMS8#,95,RS80197410-197608

L=980

sub90445-08154

main90445-08154iMS8#,95,RS80197608-197908

L=1000

sub90445-08210

87293BHOSE, NO.2

main90445-07012iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197608

L=100

sub95411-10230

main90445-07032iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197608

L=1200

main90445-07033iMS8#,95,RS80..LHD197410-197608

L=1880

sub90445-08162

main90445-08162iMS8#,95,RS80..LHD197608-197908

L=1880

sub90999-92008

main90445-08170iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197608-197908

L=1200

sub90445-08199

87293DHOSE, HEATER VACUUM SWITCH

main90445-07632iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197608

L=70

sub95411-10430

main95411-10430iMS85..LHD..3HC..ROY;MS8#,95,RS80..BTP,DLX,SAL,STD197608-197908

H,L=100

sub90999-92002

87293EUNION, HOSE

main19972-10010iMS8#,95,RS80197410-197502

3 WAY

main90405-05127iMS8#,95,RS80197410-197908

2 WAY, HEATER=1

main90413-04073iMS8#,95,RS80..BTP,DLX,SAL,STD197502-197608

3 WAY

9046304202

main90463-04202

9165140816

main91651-40816

8 parts on this diagram · 5 diagrams in section
