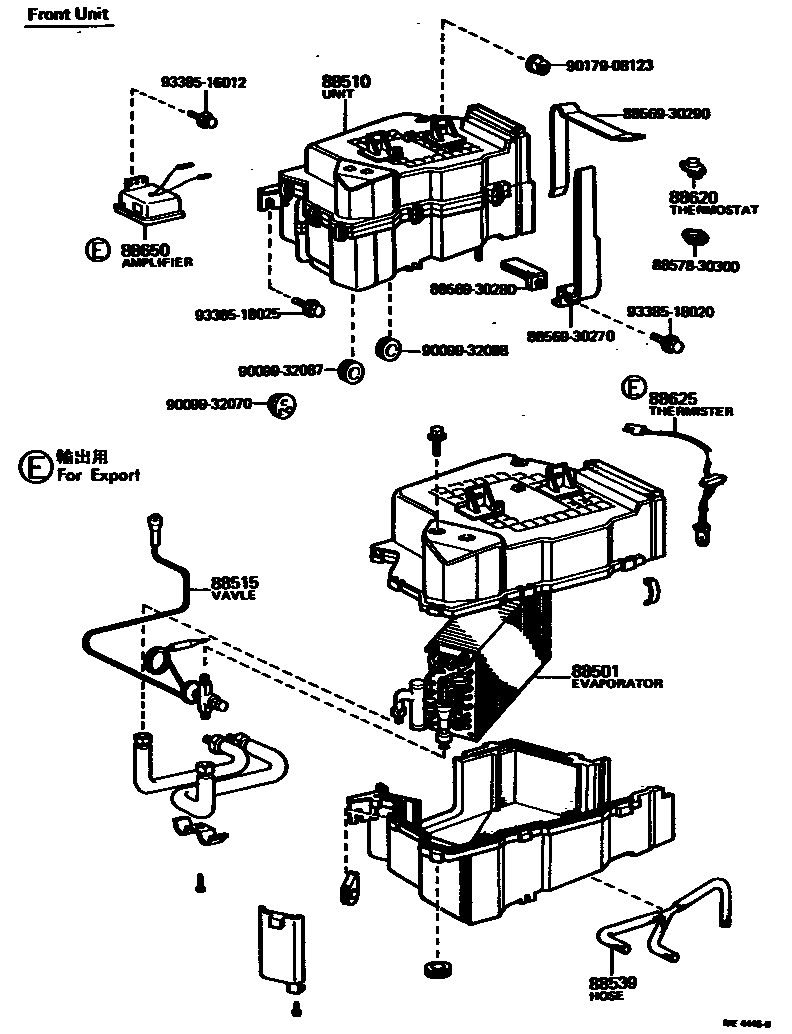

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0004 1 0005 1 0006 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30070iMS85,95..GEN;MS85..3FC..ARL;MS85..4F..SAL..ARL197410-197908

REAR

main88501-30490iMS8#,95..RHD197410-197908

FRONT

main88501-30500iMS8#,95..LHD197410-197908

FRONT

88510UNIT ASSY, COOLER

main88510-30550iMS85..ROY197511-197611

FRONT

main88510-30551iMS85..RHD..ROY197611-197908

FRONT

main88510-30561iMS85..ROY197511-197908

REAR

main88510-30570iMS8#,95..RHD..(BTP,DLX,SAL,STD)197410-197908

FRONT,FOR HEATER

main88510-30580iMS8#,95..LHD197410-197908

FRONT,FOR HEATER

main88510-30590iMS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)197410-197908

FRONT,FOR BOOST VENTILATOR

main88510-30600iMS8#,95..LHD197410-197908

FRONT,FOR BOOST VENTILATOR

main88510-30621iMS85..RHD..ROY197611-197908

REAR

sub88510-30651

sub88539-30480

sub88569-30260

sub88576-30541

sub88605-30682

sub90980-05031

sub93385-16025¥90

main88510-30650iMS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95..RHD..(BTP,DLX,SAL)..GEN197410-197611

REAR

sub88510-30651

main88510-30651iMS85,95..BTP,DLX,SAL197611-197908

REAR

88515VALVE, COOLER EXPANSION

main88515-30250iMS85,95..GEN;MS85..3FC..ARL;MS85..4F..SAL..ARL197410-197908

REAR

main88515-30280iMS8#,95..BTP,DLX,SAL,STD¥15,200197410-197908

FRONT,FOR BOOST VENTILATOR

sub88515-30290

main88515-30300iMS8#,95¥15,200197410-197908

FRONT

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30470iMS8#,95197410-197908

FRONT

main88539-30480iMS85,95..GEN;MS85..3FC..ARL;MS85..4F..SAL..ARL197410-197908

REAR

88620THERMOSTAT SUB-ASSY

main88620-30280iMS8#,95197410-197611

FRONT

main88620-30281iMS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD197611-197802

FRONT FOR HEATER

88625THERMISTOR, COOLER, NO.1

main88625-22010iMS8#,95..GEN197410-197908

FRONT,FOR BOOST VENTILATOR

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22010iMS8#,95..RHD..(BTP,DLX,SAL,STD)197410-197908

FRONT,FOR BOOST VENTILATOR

main88650-22020iMS8#,95..LHD197410-197908

FRONT,FOR BOOST VENTILATOR

main88650-30311iMS85..ROY197511-197611

FRONT

main88650-30312iMS85..RHD..ROY197611-197908

FRONT

8856930270CLAMP (FOR COOLER RELAY)

main88569-30270

8856930280CLAMP (FOR COOLER RELAY)

main88569-30280

8856930290CLAMP (FOR COOLER RELAY)

main88569-30290

8857830300PAKING, COOLER AIR DUCT

main88578-30300

9009932070

main90099-32070

9009932087

main90099-32087

9009932088

main90099-32088

9017908123

main90179-08123¥160

9338516012

main93385-16012¥70

9338518020

main93385-18020

9338518025

main93385-18025

18 parts on this diagram · 5 diagrams in section
