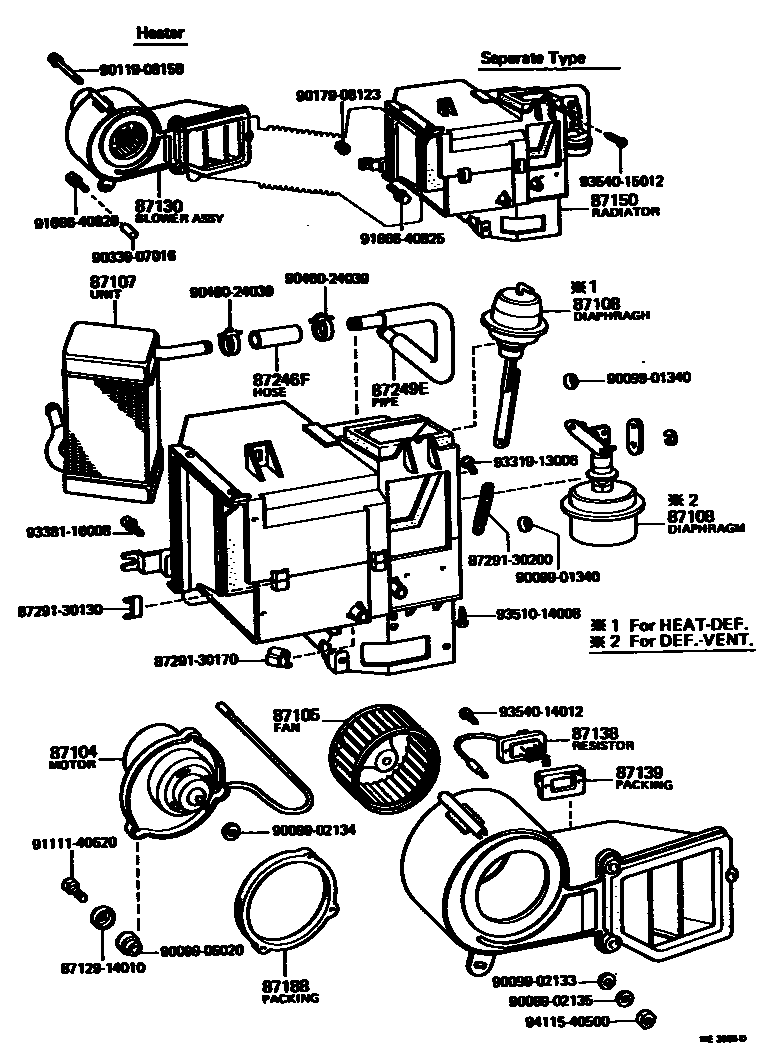

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-30280iMS8#,95,RS80..RHD197410-197908

main87104-30290iMS8#,95,RS80..LHD197410-197908

87105FAN SUB-ASSY, HEATER BLOWER

main87105-30180iMS8#,95,RS80..LHD197410-197908

sub87134-30020

main88541-40040iMS8#,95,RS80..RHD197410-197908

sub87134-30010

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-30260iMS8#,95,RS80..RHD197410-197710

main87107-30270iMS8#,95,RS80..LHD197410-197611

main87107-30271iMS8#,95,RS80..LHD197611-197908

main87107-30300iMS8#,95,RS80..RHD197710-197908

87108DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL

main87108-30240iMS8#,95,RS80..RHD197410-197908

FOR DEF-VENT

main87108-30250iMS8#,95,RS80..RHD197410-197908

FOR HEAT-DEF

main87108-30270iMS8#,95,RS80..LHD197410-197908

FOR DEF-VENT

main87108-30280iMS8#,95,RS80..LHD197410-197908

FOR HEAT-DEF

87130BLOWER ASSY, HEATER, FRONT

main87130-30290iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

main87130-30300iMS8#,95,RS80..LHD197410-197908

main88540-30251iMS85..ROY197511-197601

main88540-30252iMS85..ROY197601-197611

main88540-30253iMS85..RHD..ROY197611-197802

main88540-30254iMS85..RHD..ROY197802-197908

87138RESISTOR, HEATER BLOWER

main87138-30230iMS8#,95,RS80197410-197509

main87138-30231iMS8#,95,RS80..BTP,DLX,SAL,STD197509-197908

main88635-30321iMS85..ROY197511-197611

main88635-30322iMS85..RHD..ROY197611-197908

87139PACKING, BLOWER HEATER RESISTOR

main87291-30160iMS8#,95,RS80197410-197908

87150RADIATOR ASSY, HEATER

main87150-30260iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197611

main87150-30261iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197710

main87150-30270iMS8#,95,RS80..LHD197410-197611

main87150-30271iMS8#,95,RS80..LHD197611-197908

main87150-30280iMS85..ROY197511-197611

main87150-30281iMS85..RHD..ROY197611-197908

main87150-30290iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197710-197908

87188PACKING, HEATER BLOWER MOTOR

main87291-30150iMS8#,95,RS80197410-197908

87246FHOSE, HEATER WATER, OUTLET F

main99552-30070iMS8#,95,RS80..RHD197410-197908

L=70

sub99552-30075

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87156-30010iMS8#,95,RS80..RHD197410-197908

8712914010

main87129-14010

8729130130STAY, HEATER

main87291-30130

8729130170STAY, HEATER

main87291-30170

8729130200STAY, HEATER

main87291-30200

9009901340

main90099-01340

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009906020

main90099-06020

9011908158

main90119-08158

9017908123

main90179-08123

9033907016

main90339-07016

9046024039

main90460-24039

9111140620

main91111-40620

9166640825

main91666-40825

9166640828

main91666-40828

9331913006

main93319-13006

9338116008

main93381-16008

9351014008

main93510-14008

9354014012

main93540-14012

9354015012

main93540-15012

9411540500

main94115-40500

33 parts on this diagram · 4 diagrams in section
