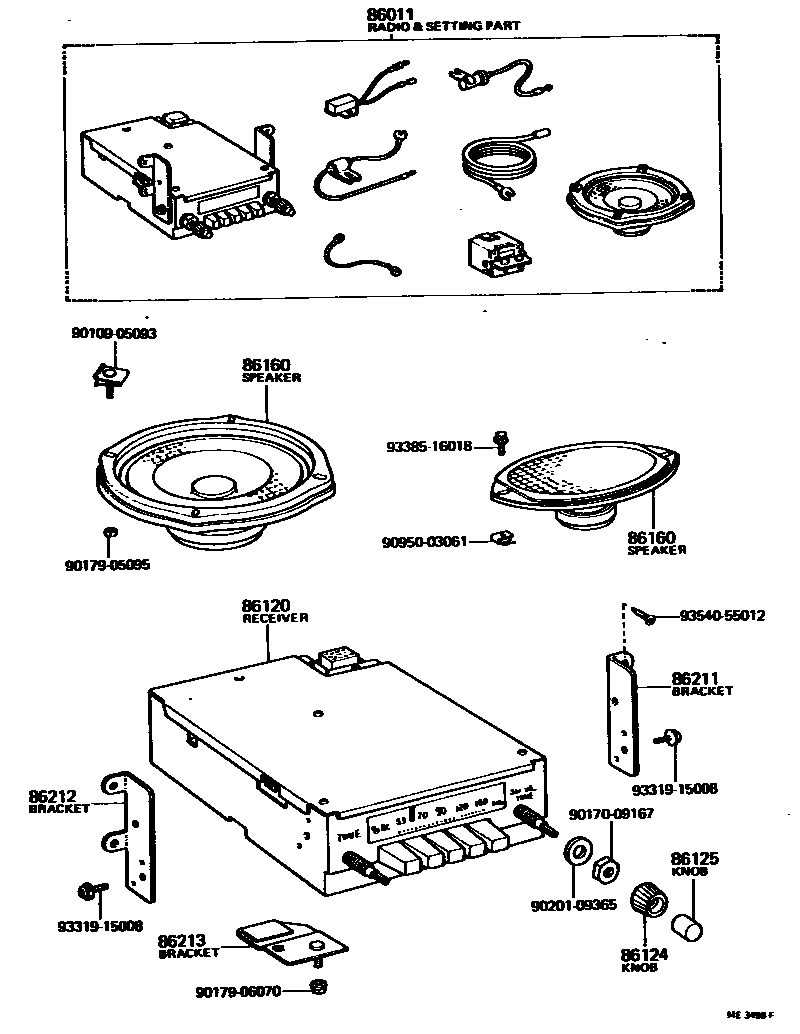

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011RADIO & SETTING PARTS SET

main86011-30060iMS85,88,RS80..BTP,STD197410-197511

sub86011-30061

main86011-30061iMS85,88,RS80..BTP,STD197511-197611

sub86011-39026

sub86160-30090

sub90980-05009

86120RECEIVER ASSY, RADIO

main86120-30220iMS85,88,RS80..BTP,STD197410-197511

AM,5-BUTTON

sub86120-30221

main86120-30221iMS85,88,RS80..BTP,STD197511-197611

AM,5-BUTTON

sub86120-30222

main86120-30222iMS85,88,RS80..BTP,STD197611-197802

AM,5-BUTTON

sub86120-30223

main86120-30223iMS85,88,RS80..BTP,STD197802-197908

AM,5-BUTTON

main86120-30230iMS85..SAL197410-197511

AM/FM,MPX

main86120-30231iMS85..ROY,SAL197511-197611

AM/FM,MPX

main86120-30232iMS85..ROY,SAL197611-197802

AM/FM,MPX

sub86120-30233

main86120-30233iMS85..ROY,SAL197802-197908

AM/FM,MPX

sub86120-30341

main86120-30240iMS83,85,95..DLX197410-197511

AM/FM,5-BUTTON

main86120-30241iMS83,85,95..DLX197511-197611

AM/FM,5-BUTTON

main86120-30242iMS83,85,95..DLX197611-197802

AM/FM,5-BUTTON

sub86120-30243

main86120-30243iMS83,85,95..DLX197802-197908

AM/FM,5-BUTTON

main86120-30260iMS83,85..(3FC,4F)..DLX197410-197511

LW/MW/FM,5-BUTTON

main86120-30261iMS83..3FC;MS83..4F..GEN;MS85..(3FC,4F)..DLX197511-197611

LW/MW/FM,5-BUTTON

main86120-30262iMS83,85..DLX..EUR197611-197802

LW/MW/FM,3 SPEAKER

sub86120-30263

main86120-30263iMS83,85..DLX..EUR197802-197908

LW/MW/FM,3 SPEAKER

main86120-30270iMS85,88,RS80..(3FC,4F,4H)..(BTP,STD)197410-197511

LW/MW/FM,5-BUTTON

main86120-30271iMS85..3FC..BTP..ARL;MS85,88,RS80..(3FC,4F,4H)..(BTP,STD)..GEN197511-197611

LW/MW/FM,5-BUTTON

main86120-30272iMS88,RS80..EUR197611-197802

LW/MW/FM,1 SPEAKER

sub86120-30273

main86120-30273iMS88,RS80..EUR197802-197908

LW/MW/FM,1 SPEAKER

main86120-30280iRS80..LHD..4H197507-197611

AM,5-BUTTON,IRAQ TAXI SPEC.

main86120-30300iMS85..SAL..EUR197611-197802

LW/MW/FM,MPX

sub86120-30301

main86120-30301iMS85..SAL..EUR197802-197908

LW/MW/FM,MPX

main86120-30320iMS85,RS80..BTP197611-197802

AM/FM,5-BUTTON

sub86120-30321

main86120-30321iMS85,RS80..BTP197802-197908

AM/FM,5-BUTTON

sub86120-30243

main86120-30350iRS80..LHD..4H..GEN197803-197805

AM,5-BUTTON,IRAQ TAXI SPEC.

main86120-30371iRS80..4F..EUR;MS85,88,RS80..(BTP,STD)..GEN197802-197908

MW/SW,1 SPEAKER

sub86120-30381

main86120-30381iMS83..GEN;MS85,95..DLX;MS83..LHD..EUR197802-197908

MW/SW,3 SPEAKER

main86120-30391iMS85..LHD..SAL..EUR;MS85..(ROY,SAL)..(ARL,GEN)197802-197908

MW/SW,4 SPEAKER

86124KNOB, RADIO RECEIVER CONTROL

main86124-14050iMS8#,95,RS80..GEN197802-197908

MW/SW,RADIO 16........90M

main86124-14070iMS8#,95,RS80..GEN197802-197908

MW/SW,RADIO NO MARK

main86124-30030iMS8#,95,RS80197410-197611

main86124-30031iMS8#,95,RS80197611-197908

86125KNOB, RADIO RECEIVER SWITCH

main86125-30040iMS8#,95,RS80197410-197611

main86125-30041iMS8#,95,RS80197611-197908

86160SPEAKER ASSY, FRONT NO.1

main86160-30090iMS85..ROY,SAL197611-197908

FRONT

main86160-30090iMS8#,95,RS80197410-197611

FRONT SAL,ROY=2

main86160-30100iMS83,85,95..DLX,ROY,SAL197410-197611

REAR

main86160-30100iMS8#,95,RS80197611-197908

REAR,SAL ROY=2

86211BRACKET, RADIO, NO.1

main86211-30010iMS8#,95,RS80197410-197908

86212BRACKET, RADIO, NO.2

main86212-30010iMS8#,95,RS80197410-197908

86213BRACKET, RADIO, NO.3

main86215-30040iMS8#,95,RS80197511-197908

9010905093

main90109-05093

9017009167

main90170-09167

9017905095

main90179-05095

9017906070

main90179-06070

9020109365

main90201-09365

9095003061

main90950-03061

9331915008

main93319-15008

9338516018

main93385-16018

9354055012

main93540-55012

17 parts on this diagram · 2 diagrams in section
