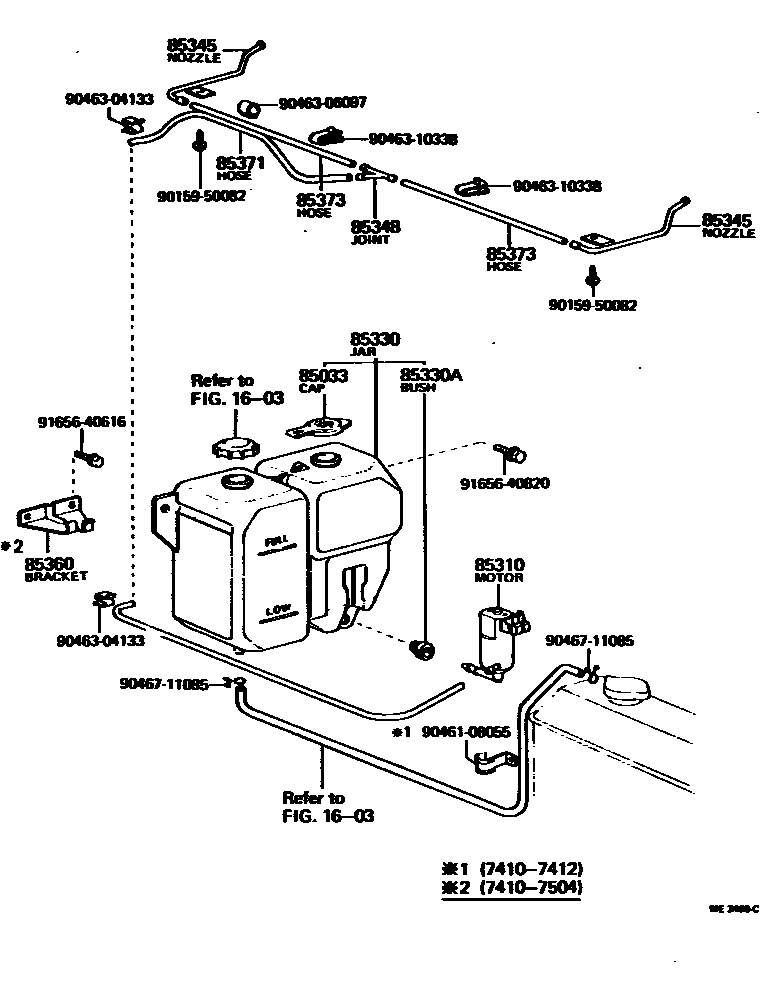

WINDSHIELD WASHER

0001 1 0002 1

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-20020iMS8#,95,RS80197410-197908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020iMS8#,95,RS80197410-197608

main85310-20100iMS8#,95,RS80197608-197908

sub85310-22080

85330JAR ASSY, WINDSHIELD WASHER

main85330-30050iMS8#,95,RS80197410-197608

main85330-30051iMS8#,95,RS80197608-197802

main85330-30080iMS85..ROY197802-197908

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32057iMS8#,95,RS80197410-197608

main90099-32089iMS8#,95,RS80197608-197908

85345NOZZLE, WINDSHIELD WASHER

main85345-30050iMS8#,95,RS80197410-197908

RH.

main85346-30050iMS8#,95,RS80197410-197908

LH.

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iMS8#,95,RS80197410-197908

sub85348-12250

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30081iMS8#,95,RS80197410-197506

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33248iMS8#,95,RS80197608-197908

L=1000(*H,L=80)

main90099-33250iMS8#,95,RS80197410-197608

main90446-06279iMS8#,95,RS80197608-197908

L=1600

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33248iMS8#,95,RS80197608-197908

L=1000(*H,L=80)

main90446-06300iMS8#,95,RS80197608-197908

L=1000(*H,L=500)

sub90446-06013

main90446-06341×2iMS8#,95,RS80197410-197608

L=1000(*H,L=280)

sub90446-06013

9015950082

main90159-50082

9046108055

main90461-08055

9046304133

main90463-04133

9046306097

main90463-06097

9046310338

main90463-10338

9046711085

main90467-11085

9165640616

main91656-40616

9165640820

main91656-40820

18 parts on this diagram · 2 diagrams in section
