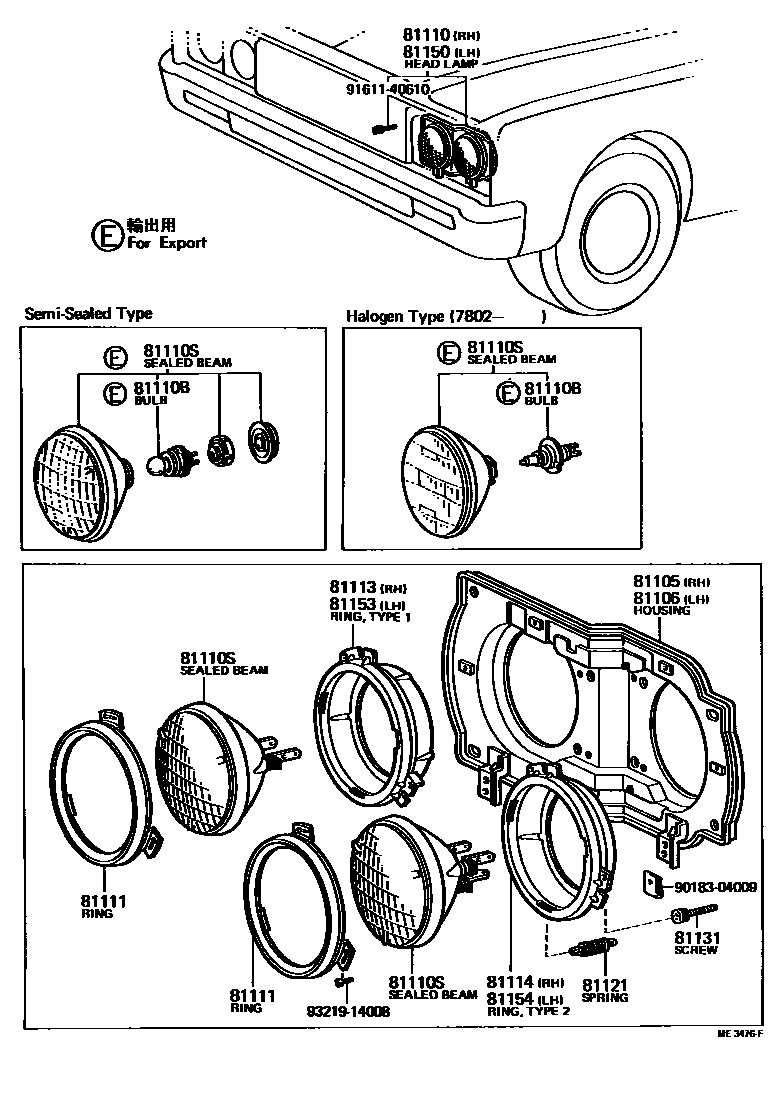

HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
L/SEALED BEAM
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,WHITE
OUT.,WHITE,CIBIE 0-01-832
OUT.,YELLOW,CIBIE 0-01-829
IN.,WHITE,CIBIE 0-01-166
81110SSEALED BEAM UNIT, NO.1
12V 37.5/50W,*WB,12V 37.5/50W
12V 45/40W,*WSB,SEMI-SEALED,WHITE,INSIDE
12V 45/40W,*WSB,SEMI-SEALED,WHITE,OUTSIDE
12V 45/40W,*YSB,SEMI-SEALED,YELLOW,INSIDE
sub90981-02H00
12V 45/40W,*YSB,SEMI-SEALED,YELLOW,OUTSIDE
sub90981-02H01
12V 45/40W,*WSB,SEMI-SEALED,WHITE,OUTSIDE
IN.,WHITE,CIBIE 36-70-038/09
OUT.,WHITE,CIBIE 36-70-050/11
IN.,YELLOW,CIBIE 36-70-041/08
OUT.,YELLOW,CIBIE 36-70-050/10
OUT.,WHITE,CIBIE 36-70-049/05
81111RING, SEALED BEAM RETAINING
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW
SEMI-SEALED,WHITE
L/SEALED BEAM
9018304009
main90183-04009
9161140610
main91611-40610
9321914008
main93219-14008
16 parts on this diagram · 1 diagram in section
