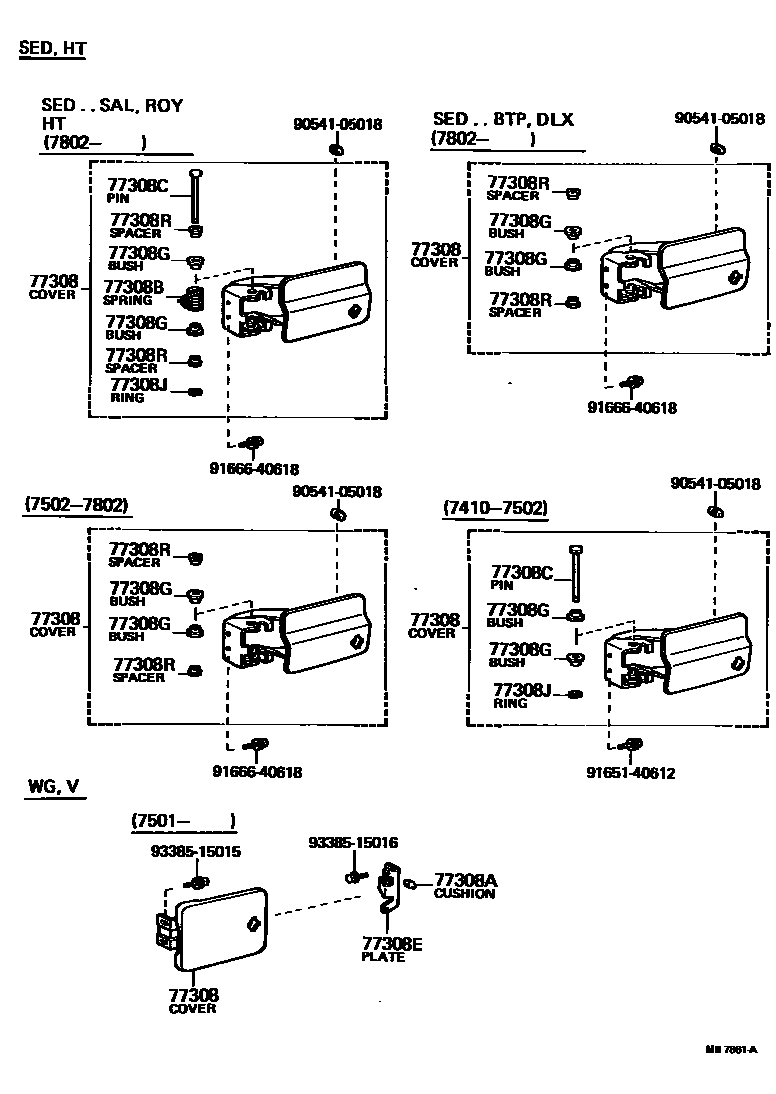

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-30010iMS95..2D197410-197802

main77350-30020iMS85,RS80197410-197802

main77350-30021iMS85,RS80..BTP,DLX197802-197908

main77350-30040iMS95..4D197412-197802

main77350-30050iMS85..ROY,SAL197802-197908

main77350-30060iMS95..2D197802-197908

main77350-30070iMS95..4D197802-197908

main77350-91701iMS83,88197501-197908

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05001iMS83,88197501-197908

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main90508-16005iMS85..ROY,SAL¥300197802-197908

77308CPIN, STRAIGHT(FOR FUEL INLET BOX COVER)

main90249-04069iMS85,95,RS80197410-197908

77308EPLATE, FUEL INLET BOX

main61726-91701iMS83,88197501-197908

77308GBUSH(FOR FUEL INLET BOX COVER)

main90386-04196iMS85,95,RS80197410-197502

main90386-06001iMS85,95,RS80¥180197502-197908

77308JRING(FOR FUEL INLET BOX COVER)

main96160-00300iMS95¥160197410-197908

77308RSPACER(FOR FUEL INLET BOX COVER)

main90561-04001iMS85,95,RS80197502-197908

9054105018

main90541-05018¥190

9165140612

main91651-40612¥70

9166640618

main91666-40618¥120

9338515015

main93385-15015

9338515016

main93385-15016¥80

13 parts on this diagram · 10 diagrams in section
