BATTERY CARRIER

74411CARRIER, BATTERY

main74403-30200iMS8#,95,RS80..GEN197410-197908

FOR N40L,NS40ZL,NS60L

main74411-30190iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

FOR N50ZL,N70ZL

74413BOLT, BATTERY CLAMP

main74451-30060iMS8#,95,RS80197410-197908

74481CLAMP, BATTERY HOLD DOWN

main74404-30100iMS8#,95,RS80..GEN197410-197802

FOR N40L

main74404-30101iMS8#,95,RS80..GEN197802-197908

FOR N40L

sub74404-30100

main74404-30110iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

FOR N50ZL,N70ZL

main74404-30111iMS8#,95,RS80..BTP,DLX,SAL,STD197802-197908

FOR N50ZL,N70ZL

sub74404-30110

main74404-30120iMS8#,95,RS80..GEN197410-197802

FOR NS60L,NS40ZL

main74404-30121iMS8#,95,RS80..GEN197802-197908

FOR NS60L,NS40ZL

sub74404-30120

9011906069

main90119-06069

9017906070

main90179-06070

9020106155

main90201-06155

9165540820

main91655-40820

9165640820

main91656-40820

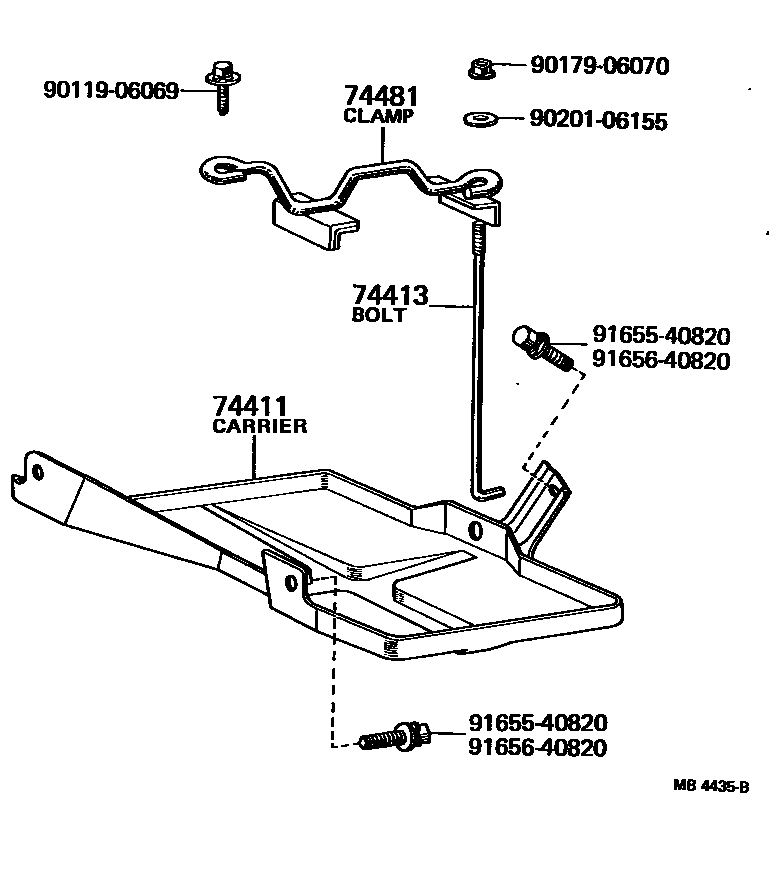

8 parts on this diagram · 1 diagram in section
