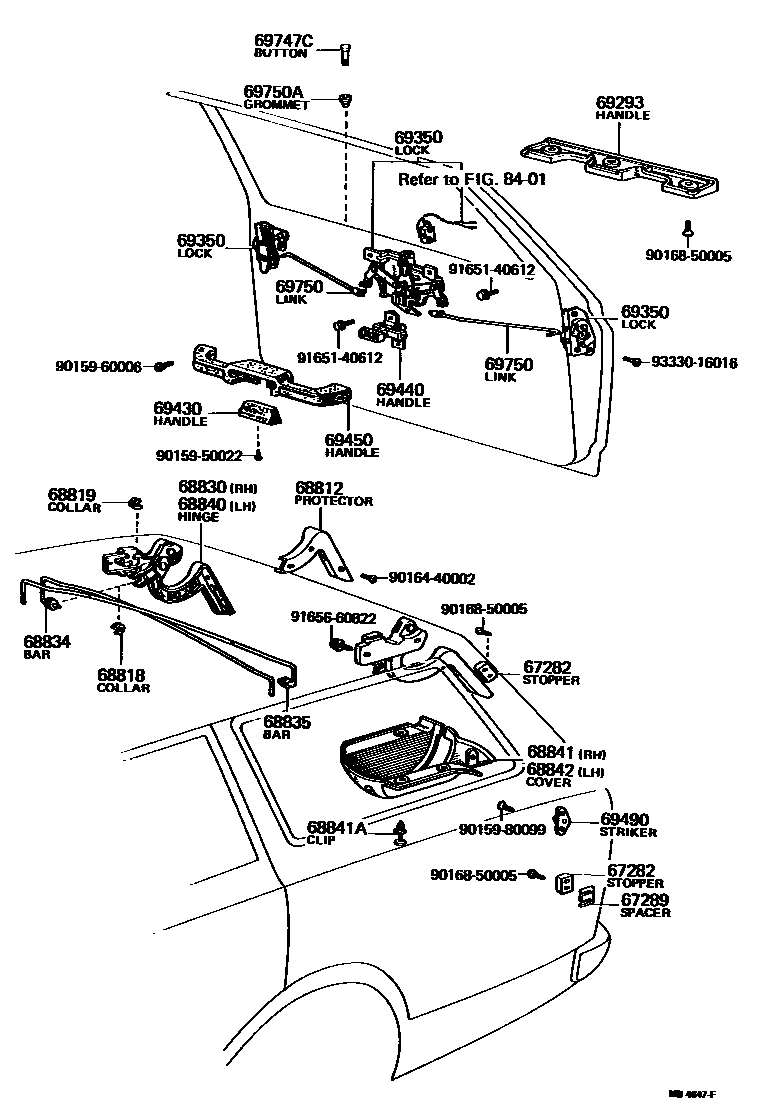

BACK DOOR LOCK & HANDLE
67282STOPPER, BACK DOOR, NO.1
67289SPACER, BACK DOOR SIDE STOPPER, LOWER
68812PROTECTOR, BACK DOOR HINGE ARM
RH.GRAY,GRAY,TRIM1#
RH.BLUE,BLUE,TRIM8#
RH.CREAM,IVORY
LH.GRAY,GRAY,TRIM1#
LH.BLUE,BLUE,TRIM8#
LH.CREAM,IVORY
68818COLLAR, TORSION BAR SUPPORT, NO.2
68819COLLAR, TORSION BAR SUPPORT, NO.1
68830HINGE ASSY, BACK DOOR, RH
68834BAR, BACK DOOR TORSION, RH
FOR W/REAR WIPER
FOR W/REAR WIPER
68835BAR, BACK DOOR TORSION, LH
FOR W/REAR WIPER
FOR W/REAR WIPER
68840HINGE ASSY, BACK DOOR, LH
68841COVER, TORSION BAR, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
CREAM,IVORY
GRAY,GRAY
CREAM,IVORY
68841ACLIP(FOR TORSION BAR COVER)
IVORY,IVORY
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
68842COVER, TORSION BAR, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
CREAM,IVORY
69293HANDLE, BACK DOOR
69350LOCK ASSY, BACK DOOR
RH.
LH.
CENTER
CENTER
69430HANDLE ASSY, BACK DOOR PULL CENTER
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN
69440HANDLE ASSY, BACK DOOR INSIDE
69450HANDLE ASSY, BACK DOOR PULL
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN
69490STRIKER ASSY, BACK DOOR LOCK
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
sub69741-91701
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
RH.
LH.
69750AGROMMET(FOR BACK DOOR REMOTE CONTROL)
8401
9015950022
main90159-50022
9015960006
main90159-60006
9015980099
main90159-80099
9016440002
main90164-40002
9016850005
main90168-50005
9165140612
main91651-40612
9165660822
main91656-60822
9333016016
main93330-16016
30 parts on this diagram · 1 diagram in section
