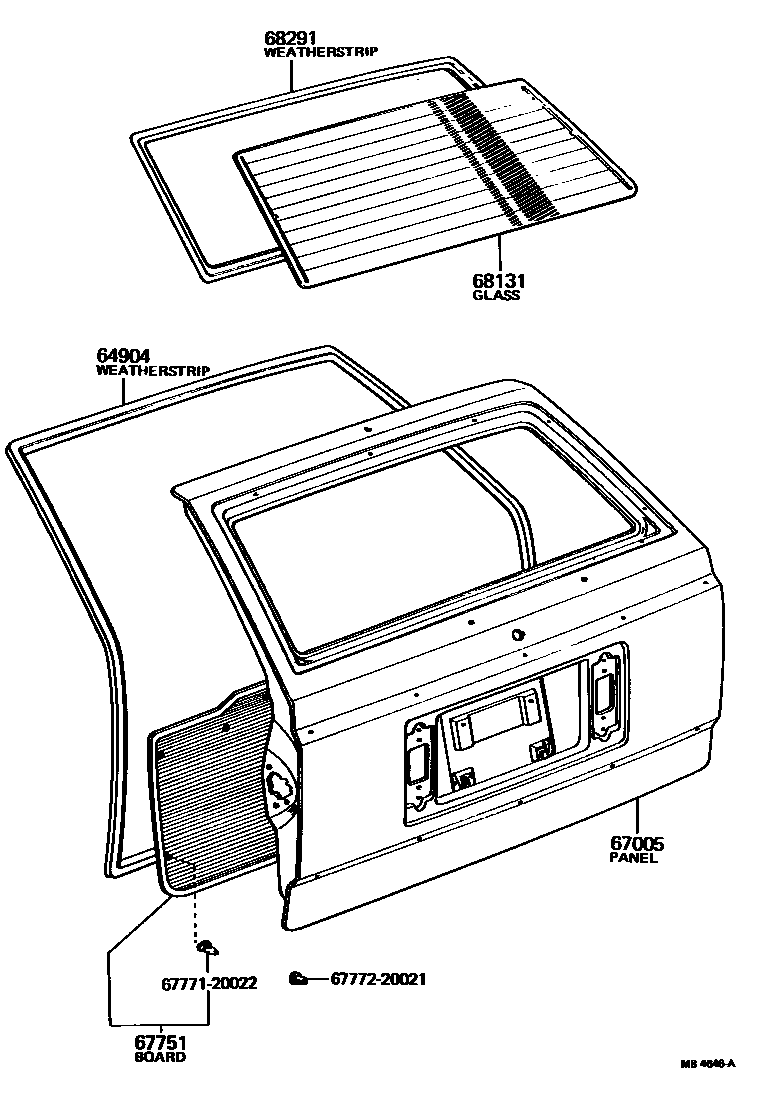

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-21010iMS83,88197501-197908

67005PANEL SUB-ASSY, BACK DOOR

main67005-91701iMS83..EUR,GEN197501-197908

main67005-91706iMS88197501-197908

main67005-91707iMS83197501-197908

FOR W/REAR WIPER

main67005-91708iMS88197501-197908

FOR W/REAR WIPER

67751BOARD, BACK DOOR TRIM

main64780-91701iMS83197501-197611

sub64780-91702

main64780-91702-03iMS88197501-197611

GRAY,GRAY,TRIM1#

sub64780-91704

main64780-91702-06iMS88197501-197611

BROWN,BROWN,TRIM4#

sub64780-91704

main64780-91703-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub64780-91704

sub64780-91703

main64780-91703-04iMS83197611-197802

BLUE,BLUE,TRIM8#

sub64780-91704

sub64780-91703

main64780-91703-14iMS83197802-197908

BLUE,BLUE,TRIM8#

sub64780-91704

sub64780-91703

main64780-91704-03iMS88197611-197908

GRAY,GRAY,TRIM1#

sub64780-91704

68131GLASS, BACK DOOR

main68105-91701iMS83..EUR,GEN197501-197908

ELECT.TN.TP.T=4.0

main68105-91702iMS83197501-197604

ELECT.TP.T=5.0,FOR AUSTRALIA

sub68105-91701

main68105-91702iMS83..ARL197604-197611

ELECT.TP.T=5.0

sub68105-91701

main68105-91703iMS88197501-197908

ELECT.TP.T=4.0

sub68105-91701

main68131-91701iMS83..GEN197501-197908

TN.TP.T=4.0

sub68105-91701

main68131-91702iMS88..GEN197501-197908

TP.T=4.0

sub68105-91701

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91701iMS83,88197501-197908

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

7 parts on this diagram · 1 diagram in section
