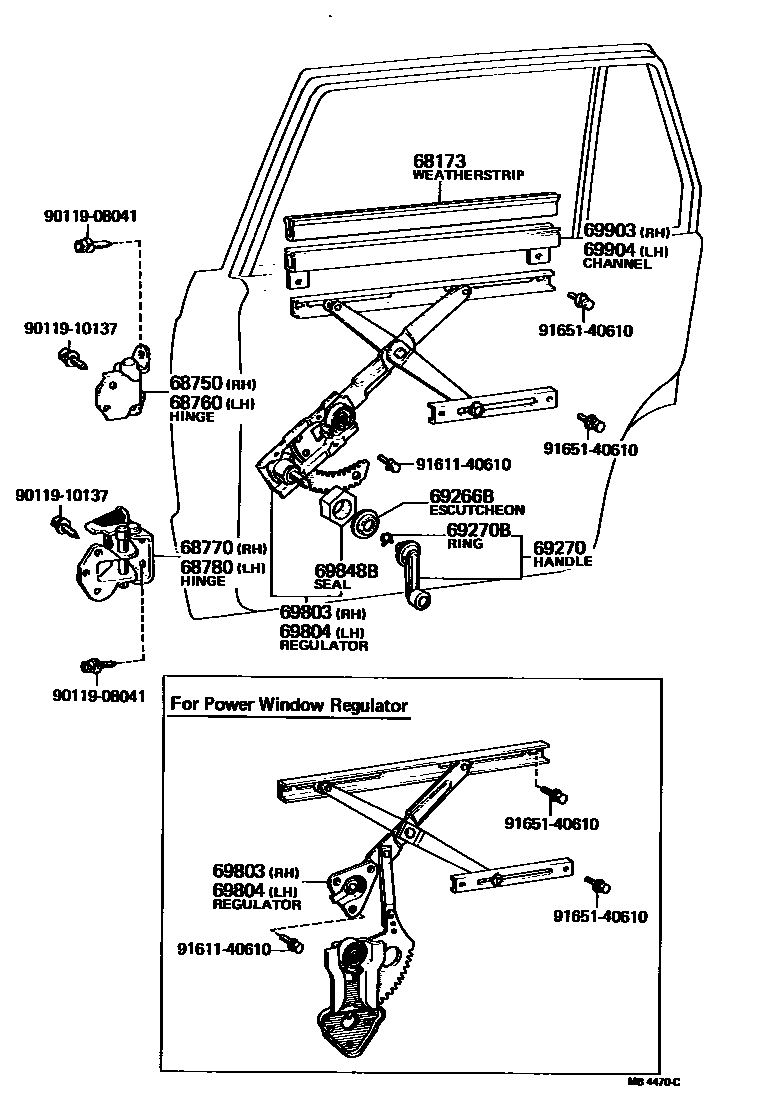

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main68171-22020iMS8#,RS80197410-197908

sub69971-22010

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-20040iMS8#,95,RS80..4D197410-197908

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-20030iMS8#,95,RS80..4D197410-197908

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-30050iMS8#,95,RS80..4D197410-197908

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-30030iMS8#,95,RS80..4D197410-197908

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010iMS8#,95,RS80..(BTP,DLX,STD)..4D197410-197908

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22020-01iMS8#,95,RS80..(BTP,DLX,STD)..4D197611-197908

BLACK,BLACK,TRIM1#,8#

sub69260-22020

sub69260-14030

main69260-22020-05iMS8#,95,RS80..(BTP,DLX,STD)..4D197802-197908

BEIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

main69260-30030iMS8#,95,RS80..(BTP,DLX,STD)..4D197410-197611

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iMS8#,95,RS80..(BTP,DLX,STD)..4D197611-197908

sub90520-01274

main90520-01274iMS8#,95,RS80..(BTP,DLX,STD)..4D197410-197611

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30090iMS85..ROY,SAL197410-197707

FOR POWER WINDOW

main69803-30091iMS85..ROY,SAL197707-197908

FOR POWER WINDOW

main69810-30070iMS8#,RS80..BTP,DLX,STD197410-197611

main69810-30071iMS8#,RS80..BTP,DLX,STD197611-197908

main69830-30090iMS95..4D197412-197611

main69830-30091iMS95..4D197611-197908

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30090iMS85..ROY,SAL197410-197707

FOR POWER WINDOW

main69804-30091iMS85..ROY,SAL197707-197908

FOR POWER WINDOW

main69820-30070iMS8#,RS80..BTP,DLX,STD197410-197611

main69820-30071iMS8#,RS80..BTP,DLX,STD197611-197908

main69840-30090iMS95..4D197412-197611

main69840-30091iMS95..4D197611-197908

69848BSEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)

main69848-30010iMS8#,95,RS80..(BTP,DLX,STD)..4D197410-197612

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-30080iMS8#,RS80197410-197908

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-30080iMS8#,RS80197410-197908

9011908041

main90119-08041

9011910137

main90119-10137

9161140610

main91611-40610

9165140610

main91651-40610

17 parts on this diagram · 2 diagrams in section
