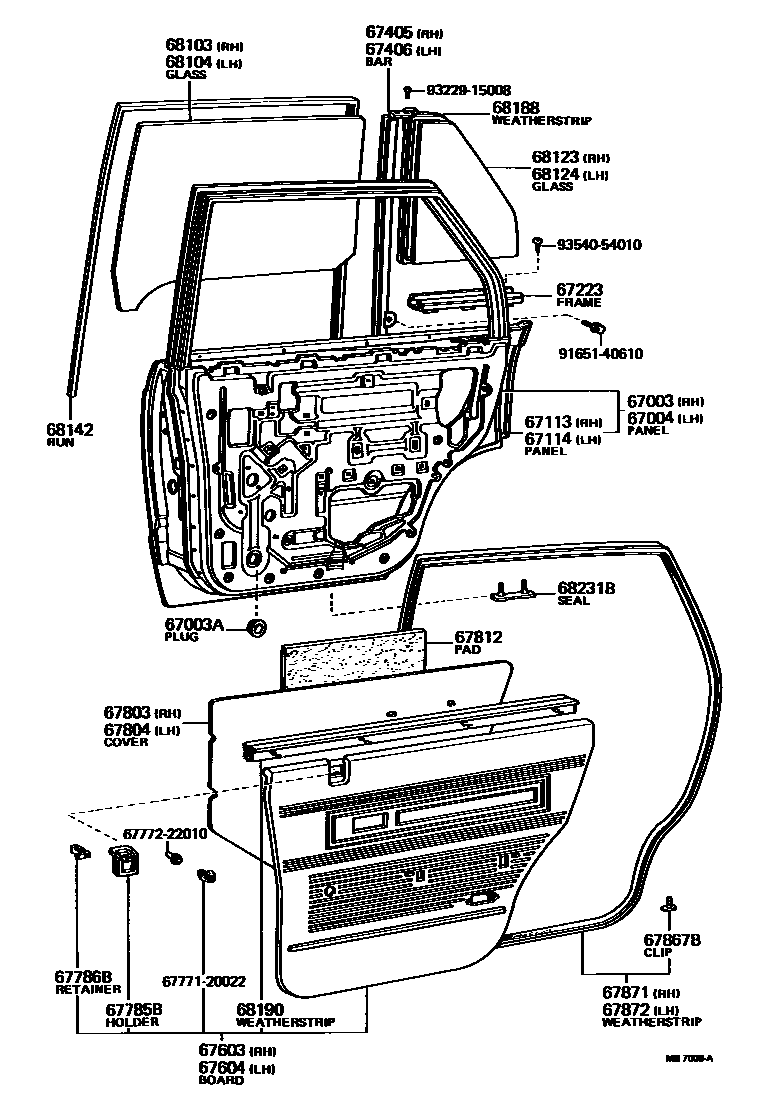

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30090iMS85,RS80¥76,900197410-197908

main67003-30100iMS95..4D197412-197908

main67003-30110iMS85..ARL197610-197908

main67003-30120iMS83..ARL197610-197908

main67003-31050iMS83,88197501-197908

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main90950-01022iMS8#,95,RS80..(BTP,DLX,STD)..4D¥200197410-197604

OD=30

sub90950-01882¥140

main90950-01150iMS8#,95,RS80..(BTP,DLX,STD)..4D¥460197604-197908

OD=30

sub90950-01882¥140

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30090iMS85,RS80¥76,900197410-197908

main67004-30100iMS95..4D197412-197908

main67004-30110iMS85..ARL197610-197908

main67004-30120iMS83..ARL197610-197908

main67004-31050iMS83,88197501-197908

67113PANEL, REAR DOOR, OUTER RH

main67113-30050iMS8#,RS80197410-197908

main67113-30060iMS95..4D197412-197908

67114PANEL, REAR DOOR, OUTER LH

main67114-30060iMS8#,RS80197410-197908

main67114-30070iMS95..4D197412-197908

67223FRAME, REAR DOOR QUARTER WINDOW, LOWER

main67439-30020iMS8#,RS80197410-197908

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67405-91701iMS83,88197501-197908

main67407-30040iMS85,RS80197410-197908

main67407-30050iMS95..4D197412-197908

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67406-91701iMS83,88197501-197908

main67408-30030iMS85,RS80197410-197908

main67408-30040iMS95..4D197412-197908

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-30320-03iMS88197501-197611

GRAY,GRAY,TRIM1#

sub67630-30320¥19,600

main67630-30320-06iMS88197501-197611

BROWN,BROWN,TRIM4#

sub67630-30320¥19,600

main67630-30321iMS88197611-197908

main67630-30330-03iMS85,RS80..BTP197410-197611

GRAY,GRAY,TRIM1#

main67630-30330-06iMS85,RS80..BTP197410-197611

BROWN,BROWN,TRIM4#

main67630-30331-03iMS85,RS80..BTP197611-197908

GRAY,GRAY,TRIM1#

sub67630-30331¥25,300

main67630-30331-04iMS85,RS80..BTP197611-197802

BLUE,BLUE,TRIM8#

sub67630-30331¥25,300

main67630-30331-05iMS85,RS80..BTP197802-197908

BEIGE,BEIGE,TRIM4#

sub67630-30331¥25,300

main67630-30340-03iMS83,85..DLX197410-197611

GRAY,GRAY,TRIM1#

main67630-30340-06iMS83,85..DLX197410-197611

BROWN,BROWN,TRIM4#

main67630-30341-03iMS83,85..DLX197611-197908

GRAY,GRAY,TRIM1#

sub67630-30341¥30,200

main67630-30341-04iMS83,85..DLX197611-197802

BLUE,BLUE,TRIM8#

sub67630-30341¥30,200

main67630-30341-05iMS83,85..DLX197802-197908

BEIGE,BEIGE,TRIM4#

sub67630-30341¥30,200

main67630-30341-14iMS83,85..DLX197802-197908

BLUE,BLUE,TRIM8#

sub67630-30341¥30,200

main67630-30360-03iMS85..SAL197410-197611

GRAY,GRAY,TRIM1#

main67630-30360-06iMS85..SAL197410-197611

BROWN,BROWN,TRIM4#

main67630-30360-08iMS85..SAL197410-197611

IVORY,IVORY,TRIM0#

main67630-30361-03iMS85..SAL197611-197908

GRAY,GRAY,TRIM1#

sub67630-30361¥35,700

main67630-30361-04iMS85..SAL197611-197802

BLUE,BLUE,TRIM8#

sub67630-30361¥35,700

main67630-30361-05iMS85..SAL197611-197908

BEIGE,BEIGE,TRIM4#

sub67630-30361¥35,700

main67630-30361-14iMS85..SAL197802-197908

BLUE,BLUE,TRIM8#

sub67630-30361¥35,700

main67630-30371-03iMS85..ROY197511-197611

GRAY,GRAY,TRIM1#

main67630-30371-06iMS85..ROY197511-197611

BROWN,BROWN,TRIM4#

main67630-30371-08iMS85..ROY197511-197611

IVORY,IVORY,TRIM0#

main67630-30372-03iMS85..ROY197611-197802

GRAY,GRAY,TRIM1#

main67630-30372-04iMS85..ROY197611-197802

BLUE,BLUE,TRIM8#

main67630-30372-05iMS85..ROY197611-197802

BEIGE,BEIGE,TRIM4#

main67630-30373-03iMS85..ROY197802-197908

GRAY,GRAY,TRIM1#

main67630-30373-04iMS85..ROY197802-197908

BLUE,BLUE,TRIM8#

main67630-30373-05iMS85..ROY197802-197908

BEIGE,BEIGE,TRIM4#

main67630-30410-03iMS95..4D197412-197611

GRAY,GRAY,TRIM1#

main67630-30410-06iMS95..4D197412-197611

BROWN,BROWN,TRIM4#

main67630-30411-03iMS95..4D197611-197802

GRAY,GRAY,TRIM1#

sub67630-30411¥32,700

main67630-30411-04iMS95..4D197611-197802

BLUE,BLUE,TRIM8#

sub67630-30411¥32,700

main67630-30411-05iMS95..4D197802-197908

BEIGE,BEIGE,TRIM4#

sub67630-30411¥32,700

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-30320-03iMS88197501-197611

GRAY,GRAY,TRIM1#

sub67640-30320¥19,600

main67640-30320-06iMS88197501-197611

BROWN,BROWN,TRIM4#

sub67640-30320¥19,600

main67640-30321iMS88197611-197908

main67640-30330-03iMS85,RS80..BTP197410-197611

GRAY,GRAY,TRIM1#

main67640-30330-06iMS85,RS80..BTP197410-197611

BROWN,BROWN,TRIM4#

main67640-30331-03iMS85,RS80..BTP197611-197908

GRAY,GRAY,TRIM1#

sub67640-30331¥25,300

main67640-30331-04iMS85,RS80..BTP197611-197802

BLUE,BLUE,TRIM8#

sub67640-30331¥25,300

main67640-30331-05iMS85,RS80..BTP197802-197908

BEIGE,BEIGE,TRIM4#

sub67640-30331¥25,300

main67640-30340-03iMS83,85..DLX197410-197611

GRAY,GRAY,TRIM1#

main67640-30340-06iMS83,85..DLX197410-197611

BROWN,BROWN,TRIM4#

main67640-30341-03iMS83,85..DLX197611-197908

GRAY,GRAY,TRIM1#

sub67640-30341¥30,200

main67640-30341-04iMS83,85..DLX197611-197802

BLUE,BLUE,TRIM8#

sub67640-30341¥30,200

main67640-30341-05iMS83,85..DLX197802-197908

BEIGE,BEIGE,TRIM4#

sub67640-30341¥30,200

main67640-30341-14iMS83,85..DLX197802-197908

BLUE,BLUE,TRIM8#

sub67640-30341¥30,200

main67640-30360-03iMS85..SAL197410-197611

GRAY,GRAY,TRIM1#

main67640-30360-06iMS85..SAL197410-197611

BROWN,BROWN,TRIM4#

main67640-30360-08iMS85..SAL197410-197611

IVORY,IVORY,TRIM0#

main67640-30361-03iMS85..SAL197611-197908

GRAY,GRAY,TRIM1#

sub67640-30361¥35,700

main67640-30361-04iMS85..SAL197611-197802

BLUE,BLUE,TRIM8#

sub67640-30361¥35,700

main67640-30361-05iMS85..SAL197611-197908

BEIGE,BEIGE,TRIM4#

sub67640-30361¥35,700

main67640-30361-14iMS85..SAL197802-197908

BLUE,BLUE,TRIM8#

sub67640-30361¥35,700

main67640-30371-03iMS85..ROY197511-197611

GRAY,GRAY,TRIM1#

main67640-30371-06iMS85..ROY197511-197611

BROWN,BROWN,TRIM4#

main67640-30371-08iMS85..ROY197511-197611

IVORY,IVORY,TRIM0#

main67640-30372-03iMS85..ROY197611-197802

GRAY,GRAY,TRIM1#

main67640-30372-04iMS85..ROY197611-197802

BLUE,BLUE,TRIM8#

main67640-30372-05iMS85..ROY197611-197802

BEIGE,BEIGE,TRIM4#

main67640-30373-03iMS85..ROY197802-197908

GRAY,GRAY,TRIM1#

main67640-30373-04iMS85..ROY197802-197908

BLUE,BLUE,TRIM8#

main67640-30373-05iMS85..ROY197802-197908

BEIGE,BEIGE,TRIM4#

main67640-30410-03iMS95..4D197412-197611

GRAY,GRAY,TRIM1#

main67640-30410-06iMS95..4D197412-197611

BROWN,BROWN,TRIM4#

main67640-30411-03iMS95..4D197611-197802

GRAY,GRAY,TRIM1#

sub67640-30411¥32,700

main67640-30411-04iMS95..4D197611-197802

BLUE,BLUE,TRIM8#

sub67640-30411¥32,700

main67640-30411-05iMS95..4D197802-197908

BEIGE,BEIGE,TRIM4#

sub67640-30411¥32,700

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-30030-01iMS8#,95,RS80..4D197410-197611

BLACK,BLACK,TRIM0#,1#,4#

sub67785-30030¥1,190

main67785-30030-03iMS8#,95,RS80..4D197611-197908

GRAY,GRAY,TRIM1#

sub67785-30030¥1,190

main67785-30030-04iMS8#,95,RS80..4D197611-197908

BLUE,BLUE,TRIM8#

sub67785-30030¥1,190

main67785-30030-05iMS8#,95,RS80..4D197611-197908

BEIGE,BEIGE,TRIM4#

sub67785-30030¥1,190

67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67786-30020iMS8#,95,RS80..4D¥250197410-197908

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-30070iMS8#,RS80197410-197908

main67841-30071iMS85..ROY,SAL197611-197908

main67841-30090iMS95..4D197412-197908

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-30070iMS8#,RS80197410-197908

main67841-30071iMS85..ROY,SAL197611-197908

main67841-30090iMS95..4D197412-197908

67812PAD, REAR DOOR SILENCER

main67811-20030iMS8#,95,RS80..4D¥1,020197410-197908

sub67812-12010¥640

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iMS8#,95,RS80..4D¥110197410-197908

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30040iMS85,RS80¥8,900197410-197908

main67871-30060iMS95..4D197412-197908

main67871-91701iMS83,88197501-197908

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30050iMS95..4D197412-197908

main67872-30060iMS85,RS80¥7,700197410-197908

main67872-91701iMS83,88197501-197908

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30120iMS85..3FC..SAL..ARL;MS85..(DLX,ROY,SAL)..(EUR,GEN)¥9,300197410-197908

TN.TP.T=4.0

main68113-30140iMS85..SAL¥8,200197410-197604

TP.T=4.0,FOR AUSTRALIA

sub68111-30120¥11,300

main68113-30140iMS85..SAL..ARL¥8,200197410-197908

TP.T=4.0

sub68111-30120¥11,300

main68113-30160iMS95..4D¥16,900197412-197908

TN.TP.T=5.0

main68113-91701iMS83..EUR,GEN¥9,300197501-197908

TN.TP.T=4.0

main68113-91702iMS88¥8,200197501-197908

TP.T=4.0

sub68113-91701¥9,300

main68113-91702iMS83¥8,200197501-197604

TP.T=4.0,FOR AUSTRALIA

sub68113-91701¥9,300

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30050iMS85..3FC..SAL..ARL;MS85..(DLX,ROY,SAL)..(EUR,GEN)¥9,300197410-197908

TN.TP.T=4.0

main68114-30070iMS85,RS80..BTP¥8,200197410-197908

TP.T=4.0

sub68114-30050¥9,300

main68114-30070iMS85..SAL¥8,200197410-197604

TP.T=4.0,FOR AUSTRALIA

sub68114-30050¥9,300

main68114-30090iMS95..4D¥16,900197412-197908

TN.TP.T=5.0

main68114-91701iMS83..EUR,GEN¥9,300197501-197908

TN.TP.T=4.0

main68114-91702iMS88¥8,200197501-197908

TP.T=4.0

sub68114-91701¥9,300

main68114-91702iMS83¥8,200197501-197604

TP.T=4.0,FOR AUSTRALIA

sub68114-91701¥9,300

68123GLASS, REAR DOOR WINDOW, RH

main68123-30110iMS85;RS80..GEN;RS80..4H..EUR¥3,280197410-197908

TN.TP.T=4.0

main68123-30130iMS85..SAL..ARL¥2,980197410-197908

TP.T=4.0

sub68123-30110¥3,280

main68123-30150iMS85..BTP,SAL¥3,050197410-197604

TP.T=5.0,FOR AUSTRALIA

sub68123-30110¥3,280

main68123-30150iMS85..ARL¥3,050197604-197611

TP.T=5.0

sub68123-30110¥3,280

main68123-91701iMS83..EUR,GEN¥3,480197501-197908

TN.TP.T=4.0

main68123-91702iMS83..ARL¥3,130197501-197908

TP.T=4.0

sub68123-91701¥3,480

main68123-91703iMS83..ARL¥2,890197604-197611

TP.T=5.0

sub68123-91701¥3,480

main68123-91703iMS83¥2,890197501-197604

TP.T=5.0,FOR AUSTRALIA

sub68123-91701¥3,480

68124GLASS, REAR DOOR WINDOW, LH

main68124-30050iMS85..3FC..SAL..ARL;MS85..(DLX,ROY,SAL)..(EUR,GEN)¥3,280197410-197908

TN.TP.T=4.0

main68124-30070iMS85..SAL..ARL¥2,980197410-197908

TP.T=4.0

sub68124-30050¥3,280

main68124-30090iMS85..ARL¥3,050197604-197611

TP.T=5.0

sub68124-30050¥3,280

main68124-30090iMS85..BTP,SAL¥3,050197410-197604

TP.T=5.0,FOR AUSTRALIA

sub68124-30050¥3,280

main68124-91701iMS83..EUR,GEN¥3,480197501-197908

TN.TP.T=4.0

main68124-91702iMS88¥3,130197501-197908

TP.T=4.0

sub68124-91701¥3,480

main68124-91703iMS83..ARL¥3,230197604-197611

TP.T=5.0

sub68124-91701¥3,480

main68124-91703iMS83¥3,230197501-197604

TP.T=5.0,FOR AUSTRALIA

sub68124-91701¥3,480

68142RUN, REAR DOOR GLASS

main68142-30050iMS85,RS80¥2,350197410-197908

main68142-91701iMS83,88197501-197908

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30050iMS85,RS80197410-197908

RH.

main68188-91701iMS83,88197501-197908

RH.

main68189-30030iMS85,RS80197410-197908

LH.

main68189-91701iMS83,88197501-197908

LH.

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-30070iMS8#,RS80197410-197908

RH.

main68190-30090iMS95..4D197412-197908

RH.

main68240-30050iMS8#,RS80197410-197908

LH.

main68240-30070iMS95..4D197412-197908

LH.

68231BSEAL, REAR DOOR DRAIN HOLE DUST

main68231-30020iMS8#,95,RS80..4D¥300197410-197908

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9165140610

main91651-40610¥160

9322915008

main93229-15008¥80

9354054010

main93540-54010¥120

31 parts on this diagram · 2 diagrams in section
