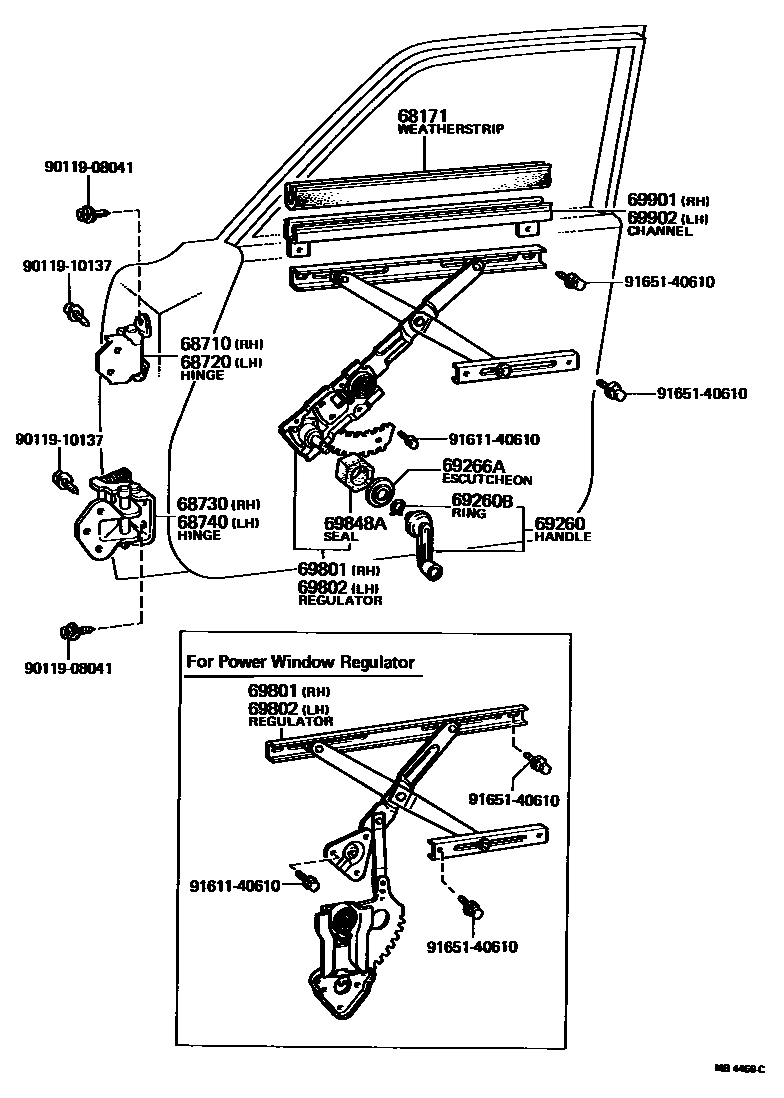

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iMS8#,RS80197410-197908

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12050iMS8#,95,RS80..4D197410-197908

main68710-12060iMS95..2D197410-197908

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12050iMS8#,95,RS80..4D197410-197908

main68720-12060iMS95..2D197410-197908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20060iMS95..2D197410-197908

main68730-30050iMS8#,95,RS80..4D197410-197908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20060iMS95..2D197410-197908

main68740-30030iMS8#,95,RS80..4D197410-197908

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22020-01iMS8#,95,RS80..BTP,DLX,STD197611-197908

BLACK,BLACK,TRIM1#,4#,8#

sub69260-22020

sub69260-14030

main69260-22020-05iMS8#,95,RS80..BTP,DLX,STD197802-197908

BEIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

main69260-30030iMS8#,95,RS80..BTP,DLX,STD197410-197611

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iMS8#,95,RS80..BTP,DLX,STD197611-197908

sub90520-01274

main90520-01274iMS8#,95,RS80..BTP,DLX,STD197410-197611

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iMS8#,95,RS80..BTP,DLX,STD197410-197908

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30100iMS85..ROY,SAL197410-197707

FOR POWER WINDOW

main69801-30101iMS85..ROY,SAL197707-197908

FOR POWER WINDOW

main69810-30070iMS8#,RS80..BTP,DLX,STD197410-197611

main69810-30071iMS8#,RS80..BTP,DLX,STD197611-197908

main69810-30090iMS95..2D197410-197611

main69810-30091iMS95..2D197611-197908

main69810-30130iMS95..4D197412-197611

main69810-30131iMS95..4D197611-197908

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30100iMS85..ROY,SAL197410-197707

FOR POWER WINDOW

main69802-30101iMS85..ROY,SAL197707-197908

FOR POWER WINDOW

main69820-30070iMS8#,RS80..BTP,DLX,STD197410-197611

main69820-30071iMS8#,RS80..BTP,DLX,STD197611-197908

main69820-30090iMS95..2D197410-197611

main69820-30091iMS95..2D197611-197908

main69820-30110iMS95..4D197412-197611

main69820-30111iMS95..4D197611-197908

69848ASEAL, WINDOW REGULATOR HOLE(FOR FRONT DOOR)

main69848-30010iMS8#,95,RS80..BTP,DLX,STD197410-197612

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-30080iMS8#,RS80197410-197908

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-30080iMS8#,RS80197410-197908

9011908041

main90119-08041

9011910137

main90119-10137

9161140610

main91611-40610

9165140610

main91651-40610

17 parts on this diagram · 3 diagrams in section
